HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function
HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function
HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function
HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function
HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function
HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function
Specifications
Brand Name :
HanWei
Model Number :
HW-20-60150
Certification :
CE
Place of Origin :
Shenzhen. China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
Up to 3000W
Handheld Laser Gun Materials :
Aluminium alloy / Stainless Steel
Welding Beam Size :
0-5mm Adjustable ( 0-10mm option )
Adopt Laser Source :
1064~1080nm Fiber laser source
Laser Head Connection :
QBH
Laser Output Mode :
4 mode ( CW, PWM, QCW, Argon )
Collimation Focal Length :
60mm
Handheld Laser Gun Weight :
0.7 Kg
Focusing Focal Length :
150mm
Feeding Wires :
0.8&1.0&1.2&1.6mm wire feeding ( 2.0mm wire feeding option )
Description

HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function



HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function Description:


The Handheld Single Motor Welding Head is a state-of-the-art welding tool. Engineered with ergonomic design principles, it is fully optimized for both welding process adaptability and long-term operational comfort, enabling it to meet complex welding requirements with ease. It delivers a far more efficient and precise operational mode for all welding applications.

Boasting a lightweight, compact build and an ergonomically contoured grip for optimal handling comfort, this welding head seamlessly adapts to diverse welding tasks across a wide range of working environments. It consistently delivers superior performance, whether for high-volume factory production or outdoor on-site repair work.

HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function

HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function Features:

  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Gun Weight: 0.7kg
  • Positioning: Red Guide Beam
  • Feeding Wires: Standard type : 0.8&1.0&1.2&1.6mm wire ( Option : 2mm wire )
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Connector: QBH

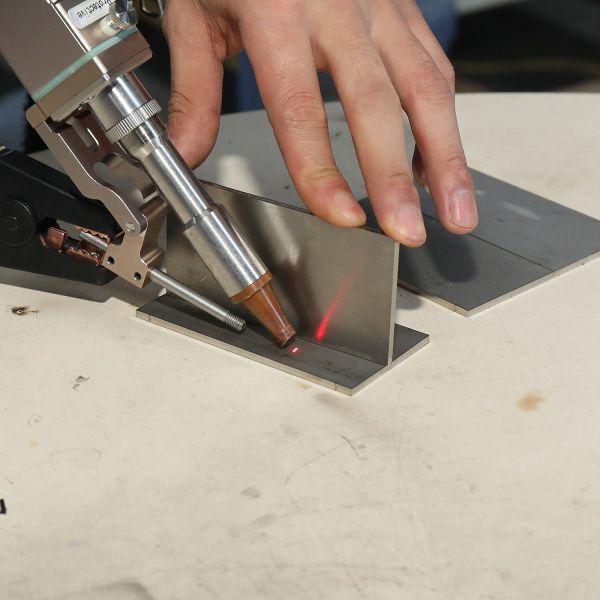

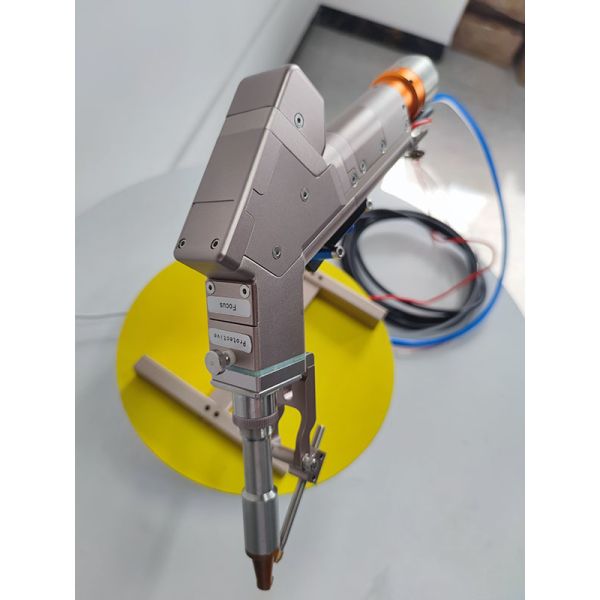

The Fiber Laser Welding Head is a high-power laser torch integrated with a QBH fiber connector. Its laser beam diameter is adjustable in the range of 0–5mm, and it is fitted with a red pilot beam for precise positioning. Weighing only 0.7kg in total, this fiber laser welding head features a lightweight design and intuitive operation for exceptional user convenience.


HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function Technical Parameters:


Product Name

Handheld Single Motor Laser Welding Head

Laser Power

Up to 3000W

Adopt Laser Source

1064~1080nm Fiber laser source

Fiber Connector

QBH

Welding Beam Form

Line " 一 "

Position Guide

Red Guide Light

Welding Beam Size

0-5mm Adjustable

Standard Focus length

60 &150mm standard Focus length adjustable

Laser Output Mode

4 mode ( CW, PWM, QCW, Argon)

Handheld Laser Gun Weight

0.7kg

Fiber Cable

10m Standard. (15 / 20m Option)

Welding Parameter Save

30 kinds of different welding parameter save



HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function Application Advantages:


The HanWei HW-20-60150 handheld welding head delivers superior performance across a wide spectrum of working scenarios. Its portability and versatile applicability make it highly convenient for on-site welding operations, while its wireless welding capability optimizes workflow efficiency and elevates productivity, enabling users to accomplish welding tasks with peak efficiency. Perfectly suited for construction, manufacturing and repair projects, this welding head is an indispensable tool for professionals seeking a reliable, high-performance welding solution.

Designed specifically for thin metal sheet welding—encompassing stainless steel, carbon steel and aluminum—this handheld single-oscillation welding head is a premium alternative to traditional TIG and arc welding gear. Boasting a compact, lightweight build and an ergonomic design for optimum handling comfort, it is integrated with a safety lock and a touch-sensitive indicator light. Featuring intuitive operation, it demands minimal operator proficiency while delivering exceptional welding outcomes: premium-quality weld seams, high welding speeds, and flawless finishes with no discoloration, no visible welding marks and no need for post-weld grinding. With robust anti-interference capabilities, the welding head is also equipped with an in-house developed proprietary control system.

HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function Packing:


  • One 15v Power Supply
  • One Safety Switch Clip
  • One Fiber Laser Welding Head
  • One Controller
  • A set of Connection Cables and Line
  • One Wire feeding device

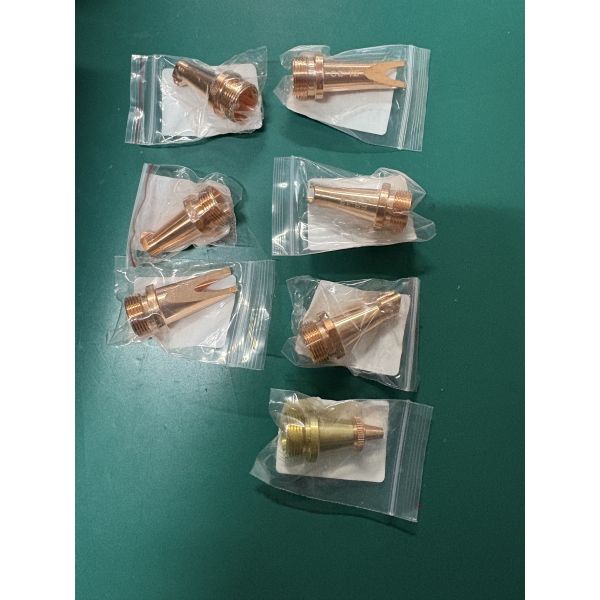

  • Seven kinds of nozzles
  • Two Protective Lens
  • One Touch Screen Monitor
  • One User Manual


HanWei Handheld Single Wobble Welding Head with Double Wire Feeding Function

​


Shen Zhen HanWei Laser Enterprise and Feature:

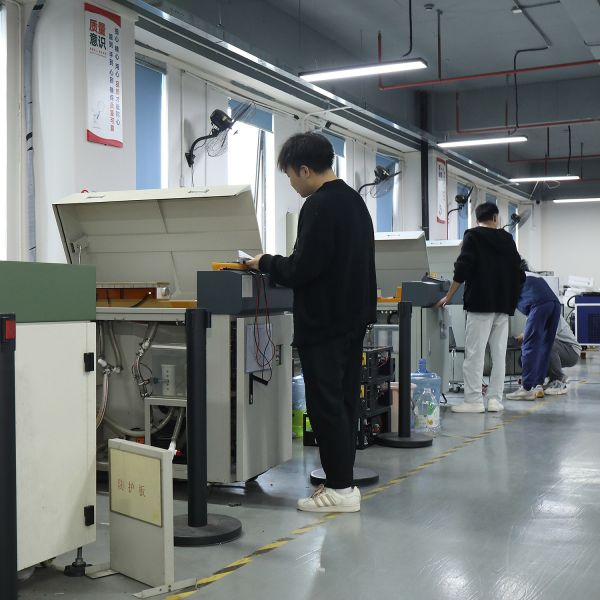

Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive range of laser systems, including benchtop and handheld models. Leveraging cutting-edge fiber, pulsed, continuous wave, blue laser, diode laser and hybrid laser technologies, these systems deliver pinpoint precision to meet the unique operational demands of clients across industries. In addition to tailor-made solutions for specific application scenarios, the company also provides comprehensive training and technical support services, enabling customers to unlock the full performance potential of their laser equipment. With a robust network of branch offices and authorized distributors spanning Europe, North America, Asia and the Middle East, Hanwei Laser boasts a global footprint and caters to the needs of international clientele.

Hanwei Laser specializes in the laser welding sector, dedicated to providing world-class laser welding technologies to global laser integration enterprises and striving to deliver superior welding solutions to all integrators in the field. As a rare national high-tech enterprise at the forefront of the global emerging industry, the company excels in the R&D, manufacturing and sales of a full spectrum of welding lasers, laser control systems, laser optical systems and laser welding processes, covering the entire industrial chain of the sector.
