Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Specifications
Brand Name :
HanWei
Model Number :
HW-B
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Core Diameter :
200 μm / 0.22 NA
Laser Power :
1000W
Welding Materials :
Copper / Gold / Silver
Head Structure :
T / F/ Y
Cooling Method :
Water Cooling
Operating Temperature (℃) :
5-40
Gas Type :
Co-axial / Side Gas
Wavelength (nm) :
445nm
Description
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
This system is designed for metals with high reflectivity such as copper, gold, and silver. The blue light wavelength interacts more efficiently with these materials, allowing energy to be absorbed more easily and supporting stable weld formation in demanding conductive applications.
The equipment integrates composite laser sources with an adaptive wobble function to improve energy distribution during welding. This helps stabilize the molten pool and improves seam consistency, making the process suitable for different joint types and structural variations.
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Key Features
  1. Effective Welding for Copper-Based and Reflective Metals.
  2. Multi-Beam Integration with Adaptive Wobble Function.
  3. Reduced Energy Requirement for Stable Operation.
  4. Stable Welding Behavior with Low Spatter Output.
  5. Improved Energy Coupling for Strong Weld Formation.

Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates

Technical Parameters
Model HW-B
Laser Power 1000 W
Wavelength(um) 445 nm

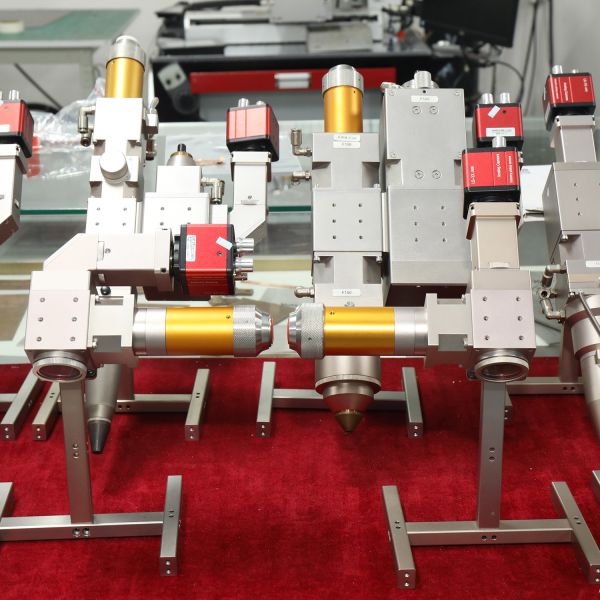

Head Option Blue Laser Hybrid
Laser Core 50um / 100um
Head Weigh 4 Kg
Focuses Option
Laser Beam Stationary / Wobble
Cooling Method Water Cooling
Machine Size 1000*450*850mm
Power Range 10-100
Power Instability (%) ＜ 3
Core Diameter 200 μm / 0.22 NA
Applications

The controlled interaction between laser energy and material reduces instability in the molten pool. As a result, spatter generation is significantly minimized, keeping the weld area cleaner and reducing the need for additional finishing work.

High absorption efficiency ensures that more laser energy is effectively transferred into the material. This leads to solid fusion, consistent weld depth, and reliable joint strength, especially in high-performance electrical and conductive applications.

Welding Samples
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Shenzhen Hanwei Laser Enterprise
Shenzhen Hanwei Laser Equipment Co., Ltd. provides a full array of laser systems, ranging from benchtop units to portable configurations. These platforms integrate advanced fiber, pulsed or continuous-wave, blue laser, diode laser and hybrid laser solutions, all elaborately developed to meet the personalized needs of its customers.
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
The company delivers custom-tailored solutions for specific application areas, accompanied by professional support and dependable after-sales service, ensuring users fully utilize the operational performance of their laser equipment. With operational branches and cooperative organizations spanning Europe, North America, Asia and the Middle East, Hanwei Laser has established an extensive global network to serve clients throughout the world.
Blue Light Hybrid Laser Weld for Sealed Welding of Copper Liquid Cooling Plates
Laser welding constitutes the core competitive strength of Hanwei Laser. The company is committed to providing pioneering laser welding technologies for international laser system integrators, with the goal of supplying high-end welding solutions for industrial partners. As one of the few enterprises worldwide holding both national high-tech and "specialized, sophisticated, distinctive and innovative" certifications, it focuses on the full industrial chain involving research and development, production and sales of a complete series of welding lasers, laser control systems, laser optical components and laser welding applications.
