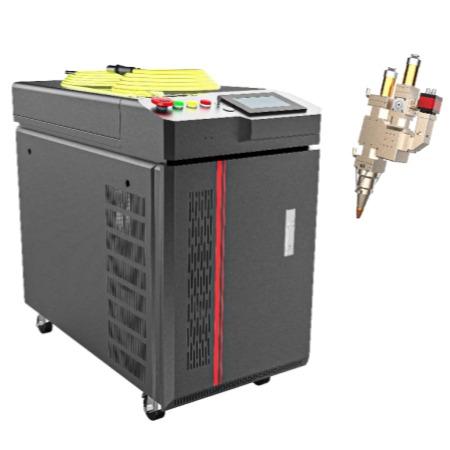

HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
Specifications
Brand Name :
HanWei
Model Number :
HW-B
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
1000W
Core Diameter :
200 μm / 0.22 NA
Head Structure :
T / F/ Y
Wavelength (nm) :
445nm
Gas Type :
Co-axial / Side Gas
Cooling Method :
Water Cooling
Welding Materials :
Copper / Gold / Silver
Operating Temperature (℃) :
5-40
Description
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength

Hanwei Blue Laser Welding Machine, which has been developed alongside its equivalents from Europe, the U.S., and Japan, boasts independently innovated core technologies—such as a blue laser source, a blue laser control system, and a variety of blue laser-specific welding heads. As a pioneering solution, it ushers in a new chapter for laser welding applications involving highly reflective materials.

HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
Key Features
  • The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.
  • Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.
  • Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.
  • Self-developed, designed and manufactured the complete chain from laser source, control system and laser welding head.
Technical Parameters
Model HW-B
Laser Power 1000 W
Wavelength(um) 445 nm
Head Option Blue Laser Hybrid
Laser Core 50um / 100um
Head Weigh 4 Kg
Focuses Option
Power Range 10-100
Cooling Method Water Cooling
Machine Size 1000*450*850mm
Laser Beam Stationary / Wobble
Power Instability (%) ＜ 3
Core Diameter 200 μm / 0.22 NA
Applications
  • Computer, Communication, Consumer Electronics - 3C Industry
  • New Energy Resources - Battery Busbar with Copper or Aluminium
  • Semiconductor Industry
Welding Samples
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm WavelengthHanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
Shenzhen Hanwei Laser Enterprise
Shenzhen Hanwei Laser Equipment Co., Ltd. provides a broad range of laser equipment, encompassing both desktop and portable types. These devices adopt advanced fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies—each carefully engineered to meet customers' distinct requirements.
In addition to offering customized solutions for specific application scenarios, the company provides training and support services, ensuring clients can fully tap into the performance potential of their laser systems. With branches and subsidiaries spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a solid global presence to serve clients around the world.
Hanwei Laser focuses primarily on the laser welding sector. It is committed to delivering cutting-edge laser welding technology to international laser integration enterprises, with the goal of providing high-quality welding solutions to all integrators. As one of the relatively rare national high-tech specialized and innovative enterprises worldwide, the company specializes in the R&D, manufacturing, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength HanWei High-tech Blue Laser Hybrid Welding Machine for Copper with 445nm Wavelength
