Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Specifications
Brand Name :
HanWei
Model Number :
HW-B
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
USD / Set
Payment Terms :
T/T
Supply Ability :
2000 Sets / year
Delivery Time :
10 working days
Packaging Details :
Export Plywood Packing
Laser Power :
1000W
Welding Materials :
Copper / Gold / Silver
Wavelength (nm) :
445nm
Gas Type :
Co-axial / Side Gas
Head Structure :
T / F/ Y
Operating Temperature (℃) :
5-40
Core Diameter :
200 μm / 0.22 NA
Power Stability :
± 0.5 %
Cooling Method :
Water Cooling
Connection :
D80 / QBH
Description

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Description:

Hanwei's blue laser welding systems, designed to match the high standards of top-tier products from Europe, America, and Japan, incorporate core technologies developed via independent innovation. These encompass an in-house blue laser source, a proprietary blue laser control system, and a series of custom-made blue laser welding heads—innovations that usher in a new phase in laser welding for highly reflective materials.

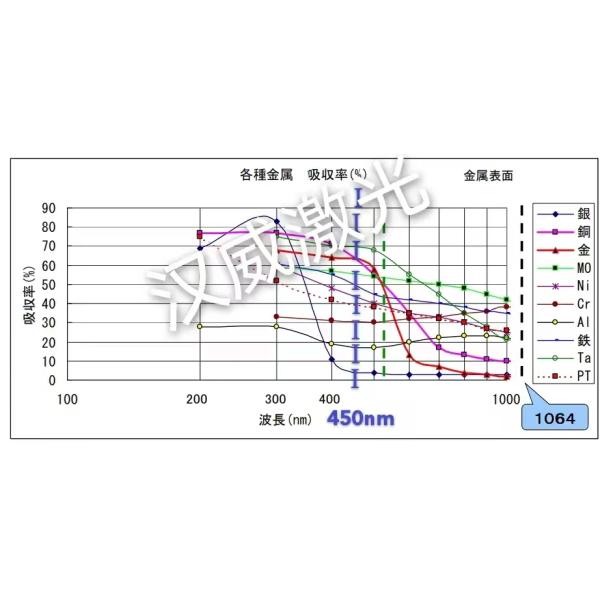

Specifically crafted for bonding reflective metals such as copper, silver, and gold, this system leverages the unique ultra-high absorption characteristics of the blue laser spectrum. Reflective materials take in over 70% of blue wavelengths, providing significant benefits in processing high-reflectivity substrates: it enables spatter-free operation, delivers outstanding stability, guarantees excellent weld quality, and features the pioneering ability to achieve double-sided formation through single-sided welding.

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Features:

1.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency.

2.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

3.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.

4.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Technical Parameters:

Model

HW-B

Cooling Method

Water Cooling

Head Option

Blue Laser Hybrid

Machine Size

1000*450*850mm

Modulation Frequency (Hz)

1-10000

Laser Core

50um / 100um

Wavelength(um)

445 nm

Laser Power

1000 W

Pulse Rising Time (μs)

＜ 20

Laser Beam

Stationary / Wobble

Head Weight

4 Kg

Power Stability

± 0.5 %

Core Diameter

200 μm / 0.22 NA

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Application:

1.Automobile industry.
2.Semiconductor Industry.

3.Jewelry industry.
4.New Energy Resources - Battery Busbar with Copper or Aluminium.
5.Computer,Communication,Consumer Electronics - 3C Industry.

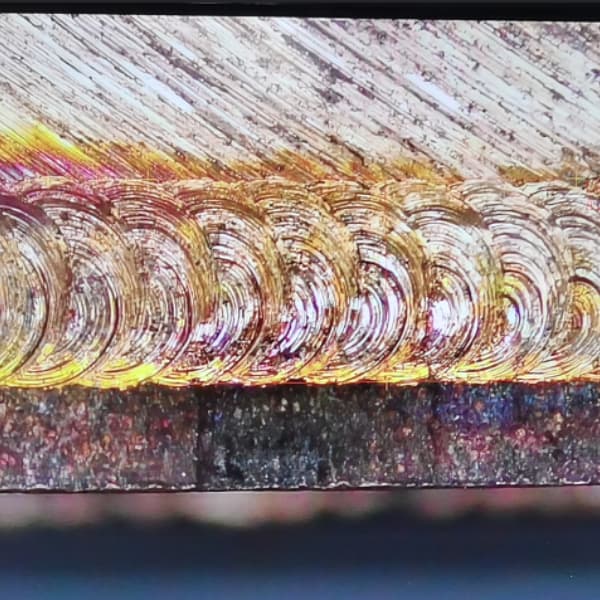

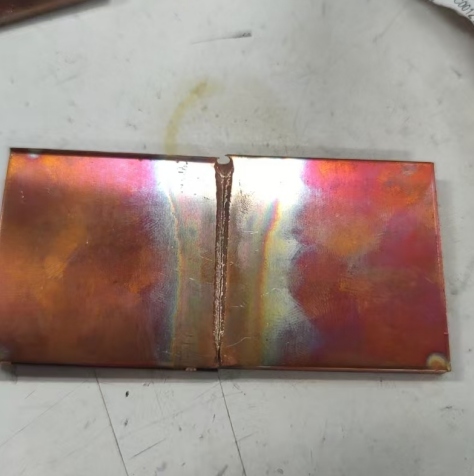

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Sample:

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser

Shen Zhen HanWei Laser Enterprise and Feature:

Established in 2016 and headquartered in Shenzhen, Hanwei Laser Equipment Co., Ltd. is a national high-tech enterprise and one of the rare global companies honored with the title of "specialized, sophisticated, distinctive, and novel." Supported by a team of 50 experts, the company centers on the entire laser welding industry chain, boasting professional proficiency in the research, development, production, and sales of welding lasers, control/optical systems, and related technologies.

Hanwei Laser supplies state-of-the-art laser welding technology and high-caliber equipment to international laser integrators. Its product range, including desktop and portable devices, incorporates advanced technologies such as fiber, pulsed/continuous-wave, blue, diode, and hybrid lasers, all tailored to meet specific requirements. Additionally, the company provides customized solutions, training, and support services to ensure that clients can make full use of their laser systems.

Guided by the mission of making world-class welding technology available to all integrators, Hanwei has established an extensive global network. It operates branches and subsidiaries throughout Europe, North America, Asia, and the Middle East, offering services to clients around the world.

Blue Laser Hybrid Welding Machine for Copper with High Reflectivity to LaserBlue Laser Hybrid Welding Machine for Copper with High Reflectivity to LaserBlue Laser Hybrid Welding Machine for Copper with High Reflectivity to LaserBlue Laser Hybrid Welding Machine for Copper with High Reflectivity to Laser
