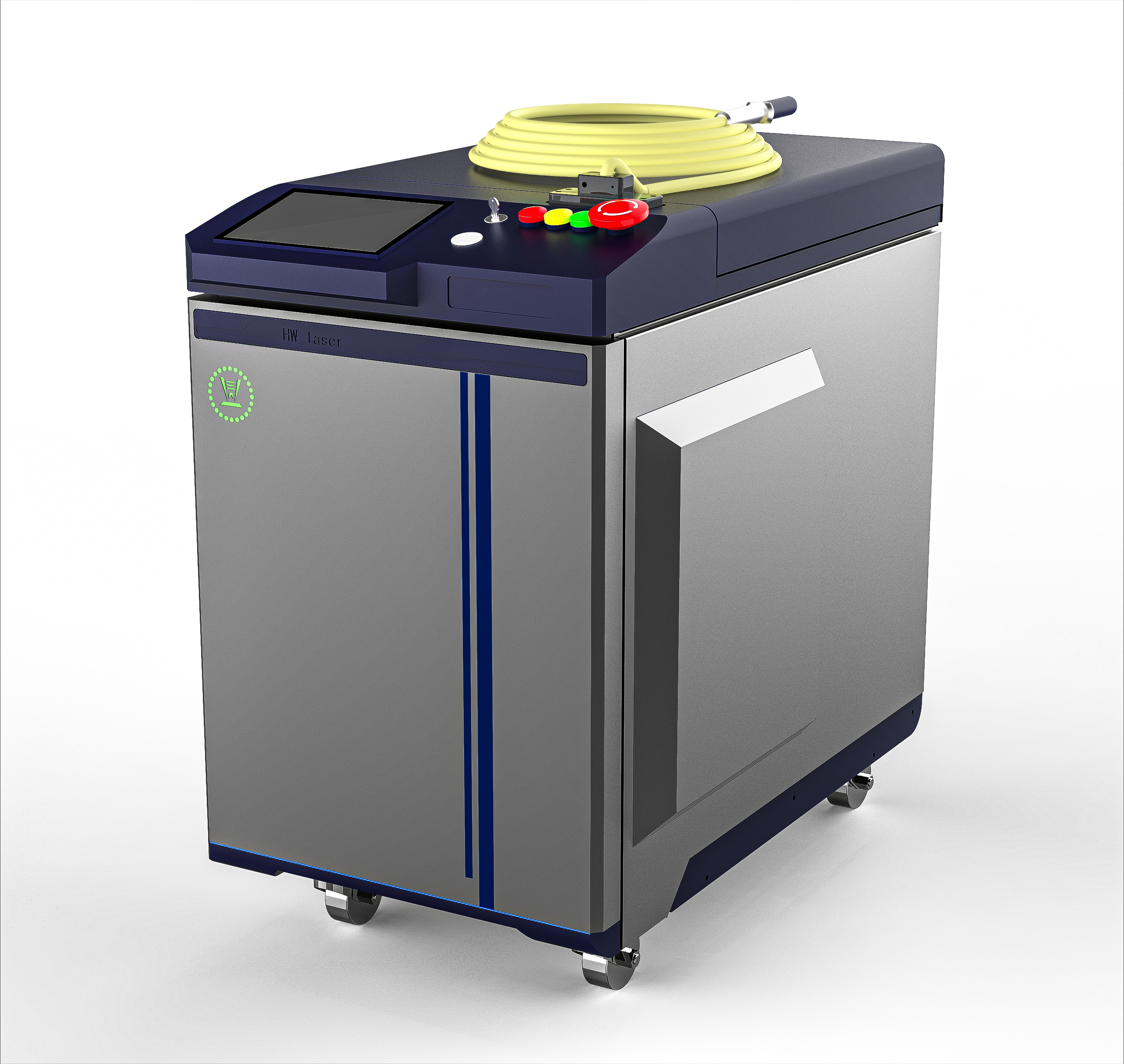

HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
Specifications
Model Number :
HW-DH-2Kw+2Kw
Cooling Method :
Water Cooling
Payment Terms :
T/T
Fiber Cable Length :
10m (Customized)
Supply Ability :
2000 Sets / year
Fiber Core(um) :
50/100
Working mode :
CW/QCW/PWM
Brand Name :
HanWei
Laser Power :
Up to 6000W
Packaging Details :
Export Plywood Packing
Operating Voltage :
380v±10% 50/60Hz
MOQ :
1 Set
Delivery Time :
10 working days
Guide Beam(mW) :
≥0.5
Frequency(Khz) :
1~100
Price :
USD / Set
Connection :
QBH
Certification :
CE
Laser power stability :
≤ 3%
Place of Origin :
Shenzhen, China
Wavelength :
1080 nm ±3
Description
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
Product Description

The full-version spot-ring beam laser welding machine adopts a laser source developed by our own company. The energy of the inner and outer ring beams can be adjusted independently, allowing precise regulation of the laser energy distribution according to different welding requirements. This flexible beam control design provides a reliable foundation for advanced laser welding applications.

By integrating spot-ring beam technology, this laser welding machine can provide different output modes, including Gaussian beam with a single inner ring, ring beam, and combined inner-outer ring beam. Operators can select the appropriate beam pattern during the welding process, making the equipment more adaptable to various welding conditions.

HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source

Product Features
  • Self-Developed Laser Source with Adjustable Beam Distribution.
  • Multiple Spot Configurations for Different Welding Processes.
  • A Solution for High-End and Challenging Welding Applications.
  • Design Based on Customer Requirements.
Technical Parameters
Model HW-DH-2Kw+2Kw HW-DH-3Kw+3Kw HW-DH-2Kw+4Kw
Laser Power 4000 W 6000 W 6000 W
Working mode CW/QCW/PWM CW/QCW/PWM CW/QCW/PWM
Wavelength 1080 nm ±3 1080 nm ±3 1080 nm ±3
Frequency(Khz) 1-100 1-100 1-100
Guide Beam(mW) ≥0.5 ≥0.5 ≥0.5
Connection QBH QBH QBH
Fiber Core(um) 50/100 50/100 50/100
Fiber Cable Length 10m (Customized) 10m (Customized) 10m (Customized)
Operating Voltage 380v±10% 50/60Hz 380v±10% 50/60Hz 380v±10% 50/60Hz
Power Consum 8Kw 12Kw 12Kw
Air Switch Capacity 60A 60A 60A
Work Mode 102 105 105
Working Temp 5~40℃
Working Humidity ≤70
Cooling Method Water Cooling
Cooller Temp 25℃ (28℃ Summer)
Chiller Electric ≥12 KW
Machine Dimension 1000*450*850mm
Machine Weight 100 Kg
Product Application

The adjustable beam structure provides greater process flexibility for applications requiring high welding quality and complex processing techniques. The system helps achieve more stable welding performance and improved process efficiency, making it an important product for demanding laser welding applications.

We independently develop, manufacture, and supply dot-ring beam laser welding machines. According to different application needs, the power distribution ratio and fiber core diameter ratio can be adjusted to provide a suitable laser configuration for specific welding processes.

Shen Zhen HanWei Laser Enterprise and Features
Established in 2016, Shenzhen Hanwei Laser Equipment Co., Ltd. specializes in the manufacturing and export of laser welding equipment. The company focuses on providing laser-based solutions for customers working with metal fabrication and industrial processing.
HW Full‑featured Spot‑Ring Welder Has Adjustable‑Beam Self‑Developed Laser Source
Our main products include handheld laser welding machines, laser welding heads, laser cleaning systems, and other supporting laser equipment. These products are designed to meet the requirements of different applications, materials, and processing conditions.

As a laser equipment manufacturer, Hanwei Laser pays attention to product quality, equipment compatibility, and customer requirements during cooperation. We communicate with customers to understand their applications and provide corresponding product information and technical support.
