Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Specifications
Guide Beam(mW) :
≥0.5
Frequency(Khz) :
1~100
MOQ :
1 Set
Delivery Time :
10 working days
Connection :
QBH
Price :
USD / Set
Operating Voltage :
380v±10% 50/60Hz
Packaging Details :
Export Plywood Packing
Cooling Method :
Water Cooling
Model Number :
HW-DH-2Kw+2Kw
Fiber Core(um) :
50/100
Working mode :
CW/QCW/PWM
Supply Ability :
2000 Sets / year
Fiber Cable Length :
10m (Customized)
Payment Terms :
T/T
Laser Power :
Up to 6000W
Brand Name :
HanWei
Laser power stability :
≤ 3%
Certification :
CE
Wavelength :
1080 nm ±3
Place of Origin :
Shenzhen, China
Description

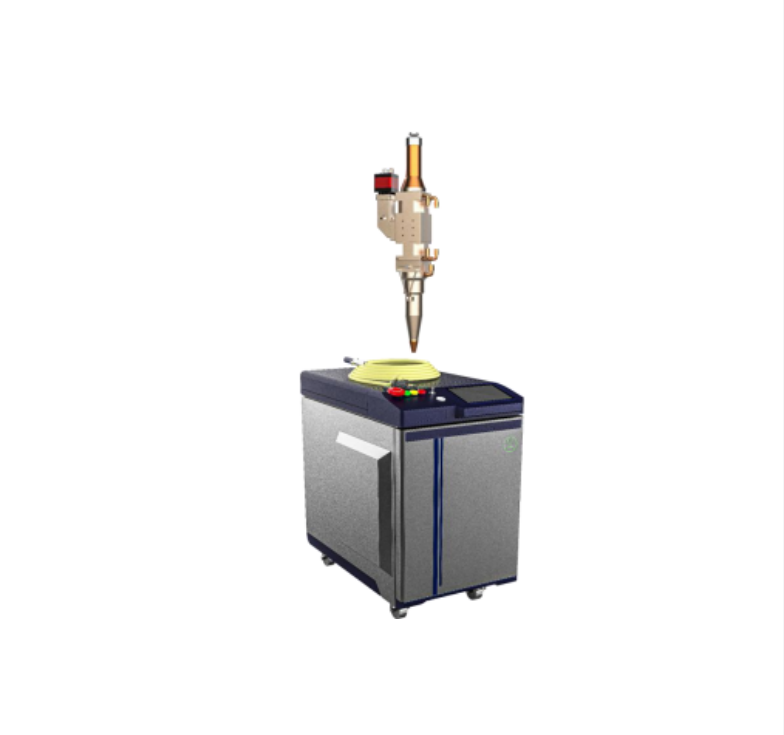

Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes
Product Description

The Full Version Dot-Ring Beam Laser Welding Machine is developed around a flexible beam energy distribution concept. Its self-developed laser source allows the energy of the inner and outer ring beams to be adjusted independently, giving users greater control over how laser energy is distributed during welding.

Different welding processes may require different laser energy distributions. This system provides Gaussian beam output with a single inner ring, ring-shaped beam output, and a combined inner-and-outer beam pattern. These beam configurations can be selected and changed according to the requirements of the welding process, allowing one machine to adapt to different process conditions.

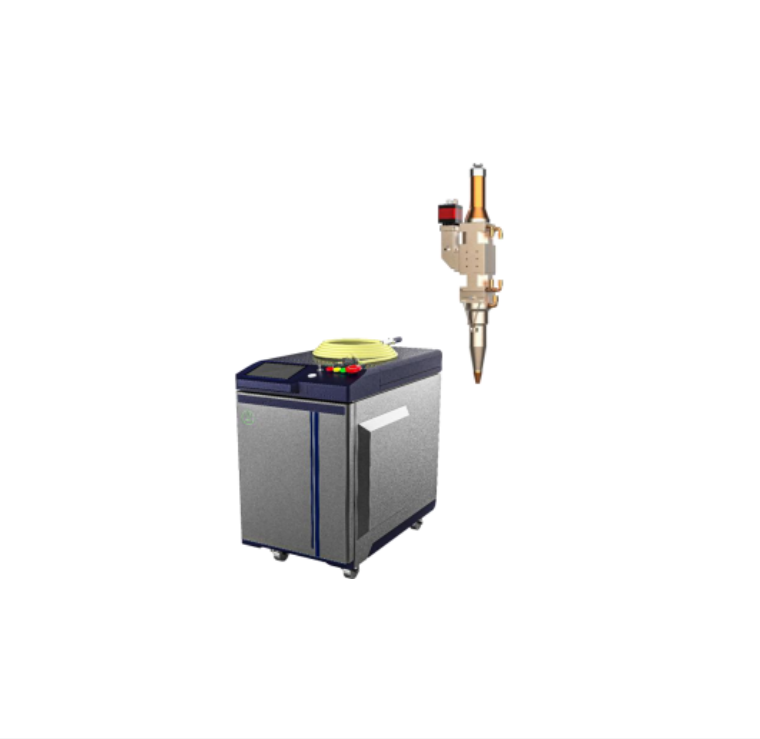

Full Version Spot-Ring Laser Welding Machine Built for Demanding Welding Processes

Product Features
  • Intelligent Beam Distribution for Advanced Welding.
  • One System with Different Beam Patterns.
  • Built for Demanding Welding Processes.
  • Configured Around Your Welding Requirements.
Technical Parameters
Model HW-DH-2Kw+2Kw HW-DH-3Kw+3Kw HW-DH-2Kw+4Kw
Laser Power 4000 W 6000 W 6000 W
Working mode CW/QCW/PWM CW/QCW/PWM CW/QCW/PWM
Wavelength 1080 nm ±3 1080 nm ±3 1080 nm ±3
Frequency(Khz) 1-100 1-100 1-100
Guide Beam(mW) ≥0.5 ≥0.5 ≥0.5
Connection QBH QBH QBH
Fiber Core(um) 50/100 50/100 50/100
Fiber Cable Length 10m (Customized) 10m (Customized) 10m (Customized)
Operating Voltage 380v±10% 50/60Hz 380v±10% 50/60Hz 380v±10% 50/60Hz
Power Consum 8Kw 12Kw 12Kw
Air Switch Capacity 60A 60A 60A
Work Mode 102 105 105
Working Temp 5~40℃
Working Humidity ≤70
Cooling Method Water Cooling
Cooller Temp 25℃ (28℃ Summer)
Chiller Electric ≥12 KW
Machine Dimension 1000*450*850mm
Machine Weight 100 Kg
Product Application

The combination of adjustable beam energy and multiple spot configurations makes this equipment suitable for welding processes with demanding quality and process requirements. It provides greater flexibility when working with complex welding procedures and can contribute to improved welding efficiency and overall process performance.

HanWei independently handles the development, manufacturing, and sales of this dot-ring beam welding equipment. To accommodate different process requirements, the power ratio and fiber core diameter ratio can be adjusted. This allows the laser configuration to be matched more closely with the customer’s specific welding application.
