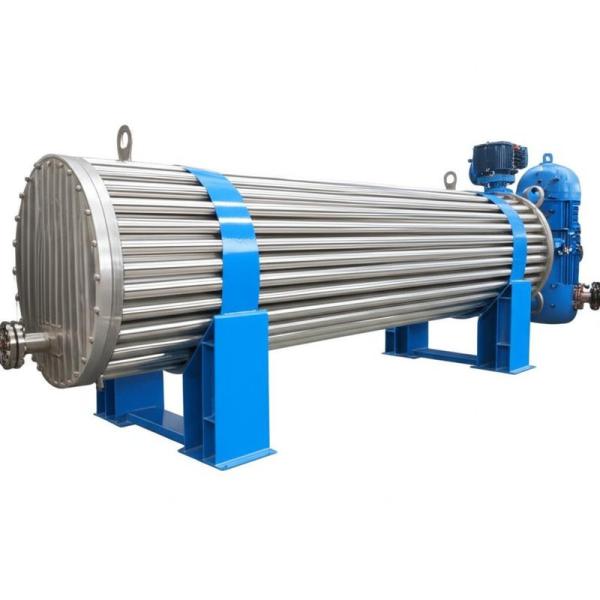

Engineer-to-order multi-effect evaporation (MEE) train built around shell-and-tube heat exchangers for efficient concentration of liquids across food, chemical, and environmental applications. Staged effects reuse vapor energy, reducing utility consumption while maintaining stable capacity and product quality. Options include TVR or hybrid MVR for further energy savings.

• Thermal economy: Cascaded effects cut steam use; TVR/MVR options lower OPEX further.
• Robust duty: Shell-and-tube exchangers tolerate scaling, solids, and erosion better than narrow-gap plates.
• Quality protection: Vacuum operation and optimized ΔT preserve color, flavor, and actives.
• Easy maintenance: Removable bundles, mechanical cleaning, and CIP-ready design.
• Scalable: Modular effects to match evaporation load and future expansion.

Live steam heats the first effect; generated vapor drives subsequent effects in sequence, each at lower pressure/temperature. Optimized ΔT/LMTD, residence time, and circulation keep heat-transfer coefficients high and fouling low.

Wetted parts in SS316L/duplex (Ti/Hastelloy available for corrosives). Straight-tube or U-tube bundles, sloped/drainable layouts, and validated CIP enable long campaigns and fast turnarounds.

• Feed conditioning: screening/filtration, softening or pH trim to mitigate scaling/corrosion.
• Multi-effect evaporation (vacuum): shell-and-tube heaters with effect-to-effect vapor reuse.
• Energy recovery: optional TVR ejectors or hybrid MVR compressor for reduced utilities.
• Condensate management: polishing (filters/RO/AC) to reuse or compliant discharge.
• Concentrate routing: to finishing, crystallization, or ZLD solids handling as required.

• Shell-and-tube heaters (straight/U-tube) per effect with vapor–liquid separators
• Preheaters, inter-effect vapor lines, surface condenser, vacuum/NCG handling skid
• Options: TVR ejectors, hybrid MVR compressor, heat-recovery exchangers
• PLC/HMI/SCADA; instruments (T/P/flow/cond/level)
• CIP skid; anti-scale dosing and inline monitoring

*Performance depends on feed composition, fouling tendency, compression ratio (if TVR/MVR), and exchanger design.
