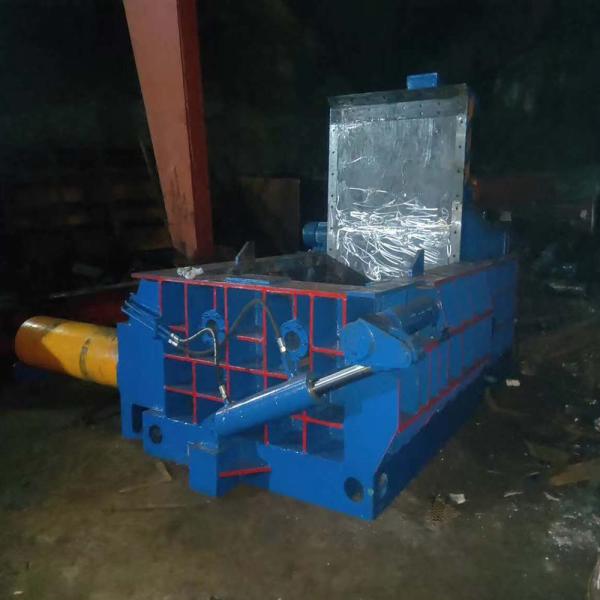

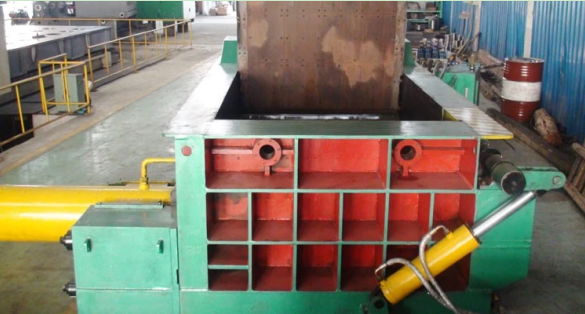

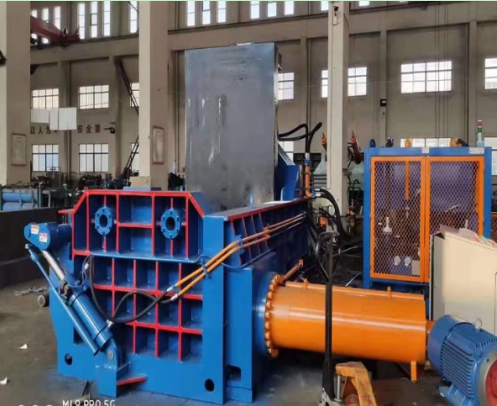

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
Specifications
Brand Name :
HANLV
Model Number :
Y81 SERIES
Certification :
CE
Place of Origin :
CN
MOQ :
1SET
Price :
$3000-300000
Payment Terms :
D/P, T/T, L/C, D/A, Western Union
Supply Ability :
300sets per year
Delivery Time :
30 work days
Packaging Details :
wooden crate / sea packing
Description

Application

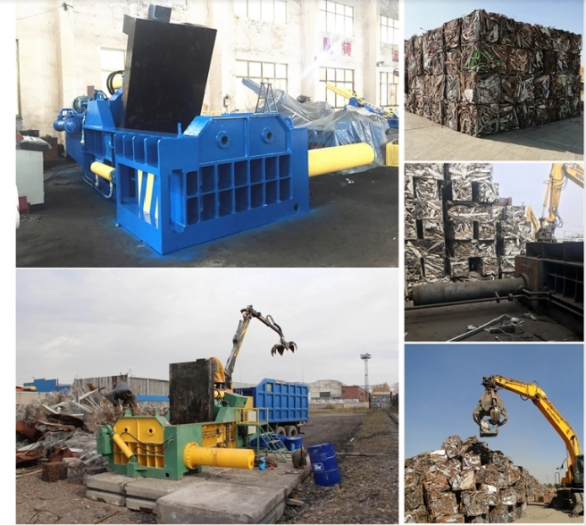

Y81 series hydraulic metal baler can squeeze all kinds of metal scrap(steel shavings, scrap steel, aluminum, copper, stainless steel, as well as scrap vehicle waste, etc. ) into rectangular, octagonal, cylindrical shape, which can reduce transportation costs, speed up the furnace speed, lower smelting cost.

SPECIFICATIONS FOR Y81F-200C METAL BALER MACHINE

System Parameters

 Main Pressure Cylinder. Force 200 Ton
Side Pressure Cylinder. Force 2*100 Ton
Lid Cylinder. Force 80 Ton
Bale Discharge Cylinder. Force 10 Ton
Hydraulic System Pressure 25 MPa

Power System (Motor, 2 set)

 Type Y200L2-6
Rated Power 22 KW/set
Rated Speed 970 rpm

Hydraulic System (Pump, 2 set)

 Type 160YCY14-1B
Rated Displacement 160 ml/r
Max Operating Pressure 31.5 MPa

Performance

1) All types adopt hydraulic driving system, manual or PLC automatic operation.

2) Discharging methods: Turn-out type, Forward-out type, Push-out type

3) Installation without foot screws, diesel engine can be available if there is no power.

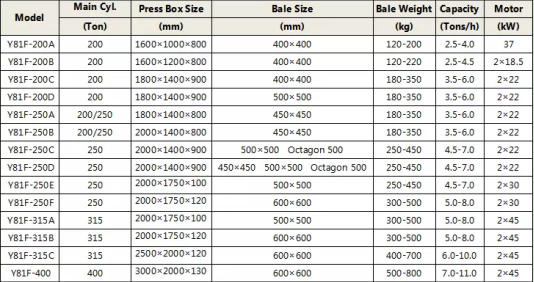

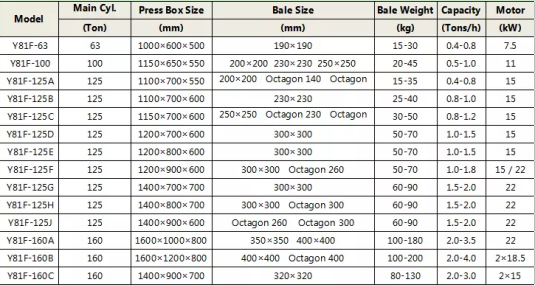

4) Press force range from 63 tons to 600 tons, production efficiency from 4 tons -40 tons each shift.

5) Press box size and bale size could be designed and made according to the customers' requirements.

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine

Y81 Series Hydraulic Metal Baler Turn Out Baler Metal Baling Machine
