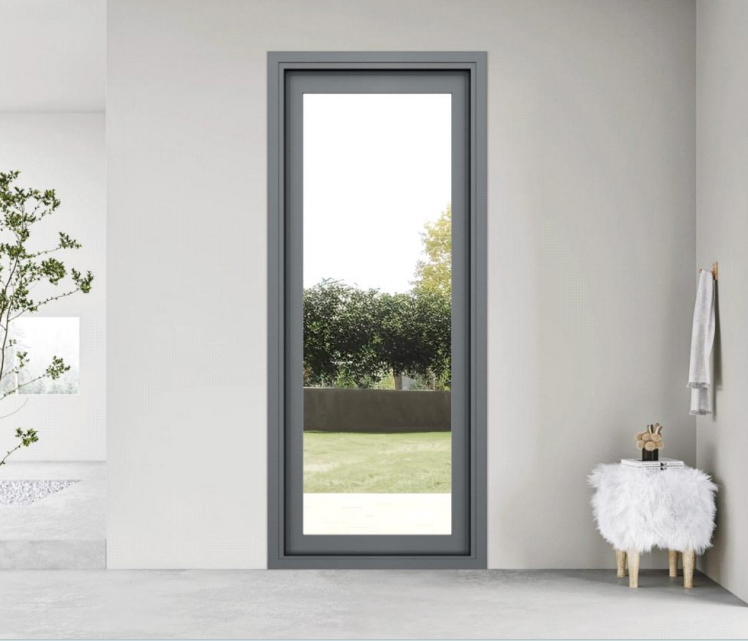

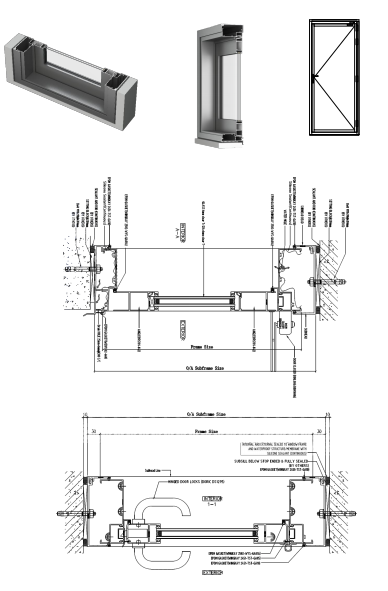

The 150 Non-Thermal Break Series Casement Door is a high-strength door system designed for industrial plants, logistics warehouses, and large commercial facilities. Utilizing 150 Series thickened aluminum profiles and heavy-duty hinge structures, it meets the durability requirements of high-frequency use and large door openings. The door leaf is constructed from 6063-T6 aluminum profiles with a wall thickness of 2.5mm, reinforced internally with a grid-style stiffening framework, allowing single-leaf dimensions up to 1500mm×3000mm. The hardware system includes heavy-duty bearing hinges (single hinge load capacity ≥80kg), multi-point anti-pry locking mechanisms, and an adjustable sealing threshold, ensuring long-term structural stability and basic sealing performance.

The system emphasizes practicality for industrial applications: the door leaf features standard dual-layer EPDM sealing gaskets combined with a liftable bottom sealing strip, providing basic airtightness and waterproofing within the non-thermal break design. Glazing options include single-layer tempered, laminated, or insulating glass, with surface finishes available in high-temperature cured fluorocarbon coating (or wood grain transfer) to suit diverse architectural aesthetics. All hardware components undergo a 144-hour salt spray test, and the door frame employs a split adjustable installation structure, accommodating ±20mm wall thickness variations.

This product is suitable for high-load scenarios such as factory main entrances, logistics passage doors, and sports equipment access points. It supports single-leaf, double-leaf, and Dutch door configurations, with optional motorized operation and security system integration. Characterized by "structural reinforcement, easy maintenance, and flexible adaptation," the 150 Non-Thermal Break Series Casement Door serves as a standardized solution for industrial-grade doors in non-extreme climate zones.
