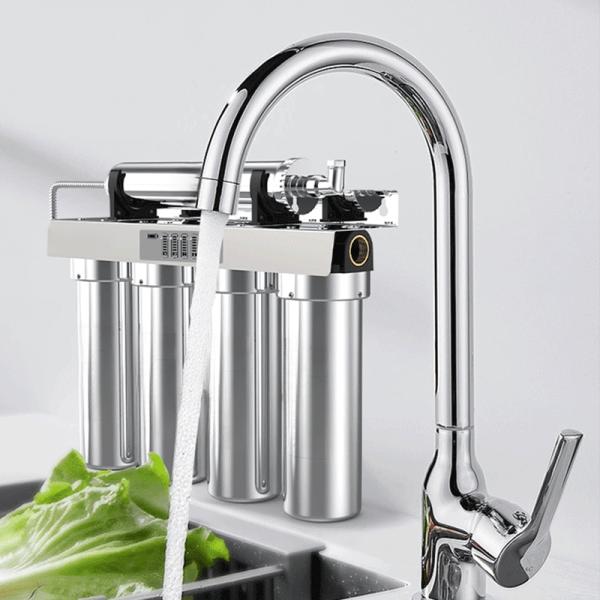

Super High Traffic Household Ultrafiltration Water Filter 6 Stages Filtering Water Purifier System

1. UV Ultrafiltration Water Purifier Parameters.

2. Factory Profile.

Shenzhen Hanlan Environmental Protection Technology Co., Ltd, was established in 2010and was recognized as a National High-tech Enterprise of China in 2024. The company focuseson the water purification field, possessing global R&D innovation, intelligent manufacturing,supply chain integration, and software and hardware service capabilities. We hold over 100national patents and has an annual production capacity of 5 million units, providing OEM and ODM solutions for over 100 brands worldwide.

3. Ultrafiltration Water Purifier Features and Benefits​.

​​6-Stage Filtration Process​​

​​1. Stage 1: 316 Stainless Steel (SS) Filter Screen (40 Micron)​​

• ​​Material​​: 316L stainless steel (superior corrosion resistance, especially for saline/well water).
• ​​Function​​: Removes large sediment, sand, rust, and debris.
• ​​Key Benefit​​: ​​Self-cleaning & reusable​​ (backwashable design reduces maintenance).

​​2. Stage 2: PP Cotton Filter (5–20 Micron)​​

• ​​Material​​: Polypropylene (depth filtration).
• ​​Function​​: Captures finer particles, protecting downstream filters.
• ​​Key Benefit​​: ​​Low-cost replacement​​ (every 3–6 months).

​​3. Stage 3: Granular Activated Carbon (UDF)​​

• ​​Material​​: Granular Carbon.
• ​​Function​​: Adsorbs chlorine, pesticides, VOCs, and organic compounds.
• ​​Key Benefit​​: Adsorption of Most Impurities Heterochromatic Odor

​​4. Stage 4: Taste Activated Carbon (CTO)​​

• ​​Material​​: Coconut shell-based carbon.
• ​​Function​​: Secondary Adsorption of Chlorine, Volatile Organic Compounds I and Improved Taste.
• ​​Key Benefit​​: Adsorption Heterochromatic Odor and Improved Taste.

​​5. Stage 5: PVDF Ultrafiltration (UF) Membrane (0.01–0.1 Micron)​​

• ​​Material​​: Polyvinylidene fluoride (PVDF) — high chemical/thermal stability.
• ​​Function​​: Removes ​​bacteria, viruses, microplastics, and colloids​​.
• ​​Key Benefit​​: ​​No chemicals needed​​, retains beneficial minerals.

6. Stage 6: Post active carbon​

• ​​Material​​: Sintered Activated Carbon.
• ​​Function​​: Remove Peculiar Smell in Water and Supplement a Small Number of Mineral Elements..
• ​​Key Benefit​​: ​​Final safety barrier​​ :Second Improvement of Taste and Odor Removal.

Applications​​

• ​​Well Water​​: Perfect for high-sediment/bacterial contamination.
• ​​Municipal Tap Water​​: Extra protection against pipe corrosion/byproducts.
• ​​Outdoor Use​​: Suitable for RVs, farms, and remote cabins (within temp range).

FAQ

How could I get a sample?

• Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

​Sample time?

• Existing items: Within xxx days.

Whether you could make our brand on your products?

• Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Whether you could make your products by our color?

• Yes, The color of products can be customized if you can meet our MOQ.

​How to guarantee the quality of your products?

• Strict detection during production.
• Strict sampling inspection on products before shipment and intact product packaging ensured.
