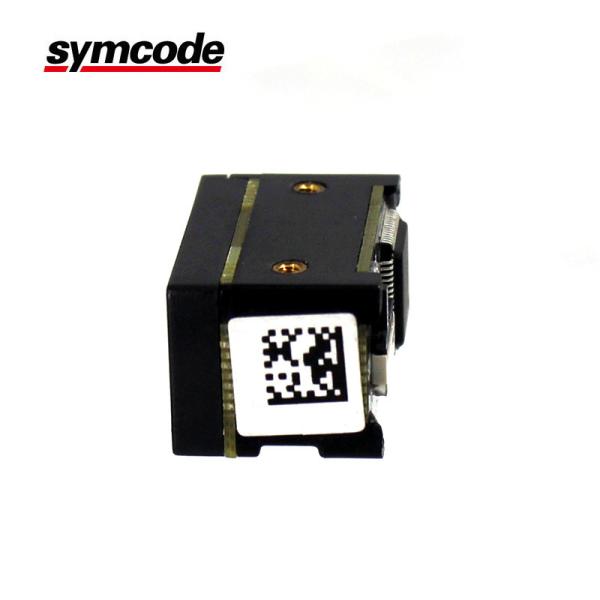

Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module
Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module
Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module
Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module
Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module
Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module
Specifications
Brand Name :
symcode
Model Number :
MJ-2000
Certification :
CE FCC ROHS IP54
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
50,000pcs per month
Delivery Time :
Sample order:1-3 days / Bulk order:7-15days
Packaging Details :
Standard package
Reading Mode :
1D 2D
Meas :
21mm 11mm 13mm
Interface :
TTL232 (3.3V) USB
Barcode accuracy :
>/=4mil
Print Contrast :
30%
Voltage :
3.3V ± 5%
Standby Current :
2mA
Operation Temperature :
(-20℃ to 60℃
Storage Temperature :
(-40℃ to 80℃
Max Power Comsumption :
1.4W
Sensor Resolution :
648x 488
Scan Angle :
"Pitch angle: 28° Skew tolerance:21.5°"
Description

Auto sense CMOS 2D QR PDF Embedded

Barcode Scanner module MJ-2000

Functions

1. Qr code scanner usb

2. Medical plastic material,shell with disinfection can resist the harmful effects of stimulating chemical

3. Dust-proof,IP54 waterproof standard,shockproof and resist fall

4. Light weight&ergonomic design:

5. With auto-sensing Handle

6. Put the scanner on the special handle, then auto-sensing will open

  • Lifetime Replacement Warranty: Our program enables you to get the product replaced for free, if anything wrong, we will even pay for shipping!
  • Super decoding ability with a decoding rate of 150 times per second, and a decode error rate of less than 1/8 million communication distance 300-500m
  • Full quakeproof design, withstands 2 m drops.
  • USB / RS 232 / PS 2 Keyboard interface
  • Choose between automatic or manual operation, easy to operate, service life button up to 5 million times
  • Operating Channel 433 MHz|SM , Intelligent AGC control, supports 20 countries keyboard language
  • Brand : Symcode

Type 2D image scanning module
Sensor Resolution 648x 488
Barcode types Codabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix
Barcode accuracy >/=4mil
Focal diatance to front of engine 40~300mm
Ambient Light 0~100000LUX
Print Contrast 30%
Scan Angle Pitch angle: 28°
Skew tolerance:21.5°
Max Power Comsumption 1.4W
Voltage 3.3V ± 5%
Max Current 135mA
Operation Current 58mA
Standby Current 2mA
Operation Temperature (-20℃ to 60℃
Storage Temperature (-40℃ to 80℃
Humidity 5% to 95%
Dimensions: 21mm 11mm 13mm
Weight 7g

FAQ

1. Service purposes

SYMCODE service hotline to provide you online technical advice, product selection recommendations, field service dispatch and customer feedback follow up with comprehensive technical services

2. Common problem

You can find what you want to know about, and a wide range of product application case in applications, allowing you to use handy Dvorak products

Auto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner ModuleAuto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner ModuleAuto Sense CMOS 2D Scan Engine , QR PDF Embedded Barcode Scanner Module

Type 2D image scanning module
Sensor Resolution 648x 488
Barcode types Codabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Standard 2 of 5,QR code,PDF417,Data matrix
Barcode accuracy >/=4mil
Focal diatance to front of engine 40~300mm
Ambient Light 0~100000LUX
Print Contrast 30%
Scan Angle Pitch angle: 28°
Skew tolerance:21.5°
Max Power Comsumption 1.4W
Voltage 3.3V ± 5%
Max Current 135mA
Operation Current 58mA
Standby Current 2mA
Operation Temperature (-20℃ to 60℃
Storage Temperature (-40℃ to 80℃
Humidity 5% to 95%
Dimensions: 21mm 11mm 13mm
Weight 7g
