Hand Tool Horizontal Handle Toggle Clamp Apply in Electronics Industry GH-203-FL

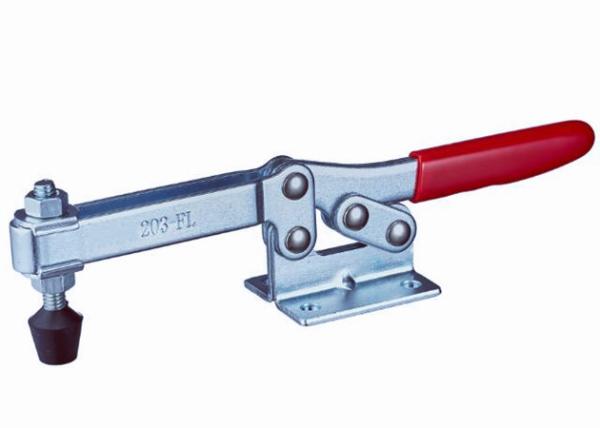

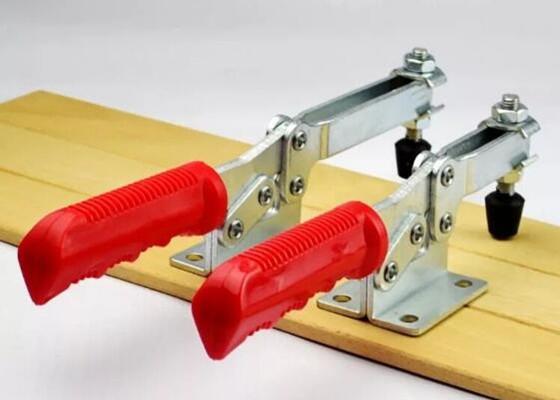

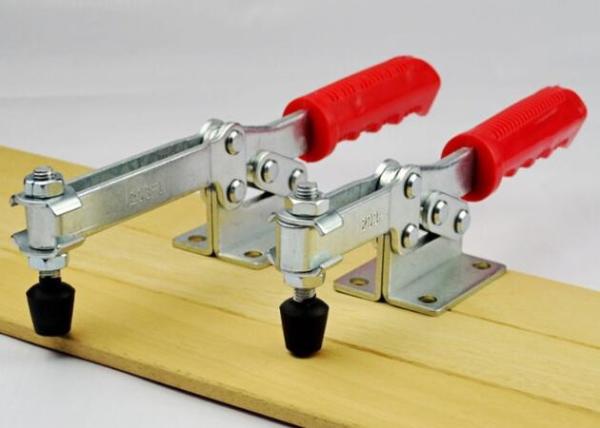

Horizontal Hold Down Handle Toggle Clamp GH-203-FL

Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Electronics Industry

1. Manual toggle clamps are used in the assembly line and testing process of small motors and electric tools.
Main application models: 203-FL, 12050,12050-U,101-A,102-B,301-A,304-C etc.

2. The metal shell of various electrical appliances, such as water heaters, microwave ovens, air conditioners, refrigerators, cabinets, and chassis is quickly clamped on the "welding molds" as a fixture. Main application models: 11412,203-F,225-D,21502-B,102-B,101-D

3. Electrostatic spraying equipment and manual toggle clamps serve as accessories, mainly for barrel cover opening and closing. (In the spraying production line, a manual toggle clamp is sometimes used to fix the processed object).
Main application models: 40323,431,40341,451 etc.

4. One of the production equipment for PCB boards, jet-soldering machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.

5. The manual toggle clamp is used as a component on the "mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.

6. Electronic toys, game consoles and IC cards (The use of manual toggle clamps is the same as in points 5-1 and 5-2).

Railway Vehicle Industry (including subways and light rail vehicles)

1. Body keel welding is used as fixtures for welding molds.
Main application models: 101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.

2. For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps.

3. Welding of door panels is used as positioning bolts and fixtures for welding jigs. Main application models: 11412,12205,10247,225-D,21382,304-C,304-E etc.

4. Welding of seats is used as fixtures for welding fittings. Main application models: 12265,11421,36020,22235 etc.

5. The production of molded foams for luxury seats is used as fixtures for foaming molds. Main application models: 702-D,40341,304-H etc.

6. The adhesion of luxury auto interior accessories is used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
