Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Specifications
private mold :
NO
products status :
Stock
type :
Barcode Scanner
scan element type :
CMOS
colour depth :
32 Bit
interface type :
usb, COM
max paper size :
A4 Size
optical resolution :
3mil
scan speed :
25inch/63cm per second
Brand Name :
Luckydoor
Place of Origin :
Guangdong, China (Mainland)
warranty(year) :
2-Year
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Black
Product name :
Phone Back-Clip Portable barcode Scanner
Light source :
617nm LED Aimer, White LED
Housing Material :
ABS+PC
Interface :
Receiver: USB-HID, Bluetooth: HID, BLE, SPP
Function :
Bar Code Reading
Scan Mode :
Auto Sense
Scanning method :
Antomatic
Feature :
Fast Scanning, smart
Application :
Logistics Industry, warehouse
Description
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Product Description

Wireless Barcode Scanner Bluetooth 1d 2d Qr Code Phone Back Clip Android Bar Code Reader Handheld Barcode Reader

Luckydoor K-20 is a brand new series of ATEK which belong to high-end products of Syble, excellent stability and quality
assurance.compatible with 99% mobile phones.press and hold for 5s to enter the pairing state.clonnect the scanner when you hear a beep,the pairing is successful.plug and play,no driver installation needed.experience the power of a long-lasting battery.
Product Features
1.Can interpret all kinds of 1D/2D code, direct Chinese 2D code
2.Support Android/iOS system, can replace PDA, scanning gun, mobile phone scanning
3.512000 characters can be stored in offline/inventory storage mode
4.Bluetooth connection, easy and fast
5.Wireless Bluetooth empty 50-100 meters
Specification
Light Sources
White LED lighting when decoding, gradient lighting with distance. Laser cross indication
Supported Symbologies
1D: Code 128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code 11, ITF-25(Interleave 2 of 5), Code 39, Code 93, Code 32, CodaBar, Matrix 2 of 5, Industrial 25, IATA25, MSI-Plessey.
2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec.
Scan Angle
Yaw45°, Rotaion 360°, Pitch45°
Contrast
≥20%
Resolution
640*480
Scan Mode
Manual/Continuous/Automatic Scintillation
Precision
≥3mil
Field Angle
42°(H) x 28°(V)
Depth of Scan Field
EAN-13(13mil):4-55mm
Error Rate
1/5million
Interface
Receiver: USB-HID, Bluetooth: HID, BLE, SPP
Communication Mode
Paired dedicated receiver: 2.4g communication;
Paired mobile bluetooth devices: Dual-mode Bluetooth
Transmission Distance
100M(Open Yard)
Pairing Mode
1, through the bar code pairing
2,special pairing button
Prompt Function
1, power prompt
2, connection prompt
Pairing Mode
One to One: One Scanner Pairs One Receiver, One scanner paired with a Bluetooth mobile device.
Receiver
Dedicated Bluetooth USB flash drive receiver for Android /IOS mobile devices
Storage Mode
Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters.
Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.
Dimension
69mm*36mm*153mm
Weight
1M straight
Material
ABS+PC
Operating Temperature
-20℃~55℃
Storage Temperature
-40℃~70℃
Humidity
0%~95%(Non-condensing)
Drop Resistance
Withstands multiple 1.5 meters drops to concrete
Voltage
DC 5V±5%
Lithium battery
3000mA
Charging Time
3-4.5h
Battery Working Time
12h
Operating Current
when not scanning code ≥26mA; when scanning code ≥300mA
Standby Current
0mA(Standby is to cut off battery power)
Charging Model
TypeC USB charging cable, plug-in direct charging

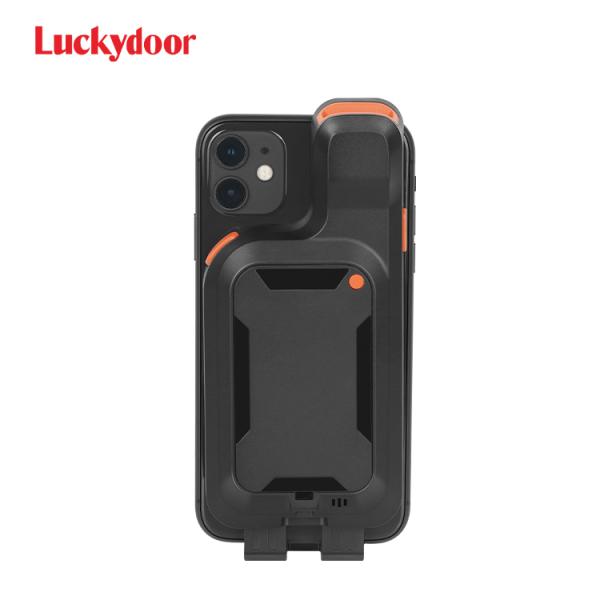

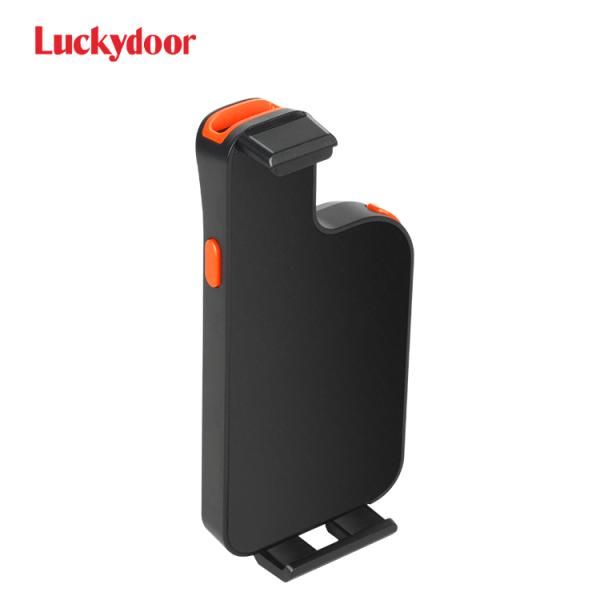

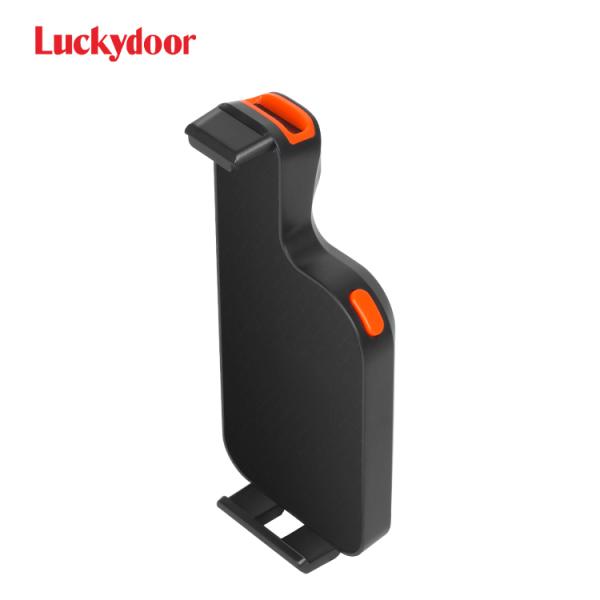

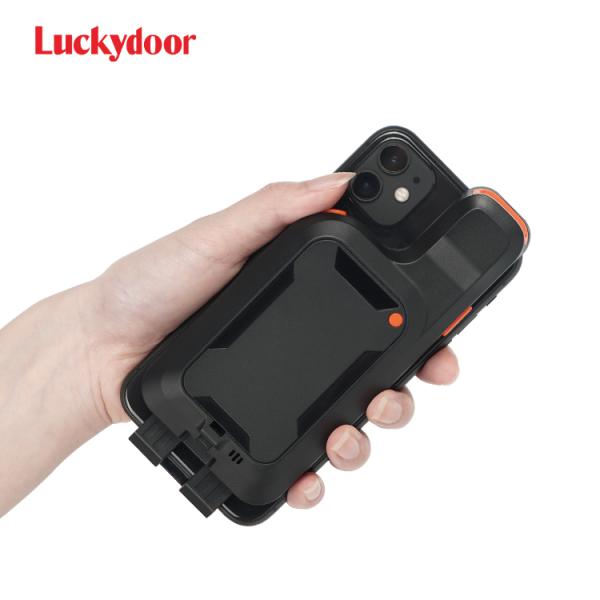

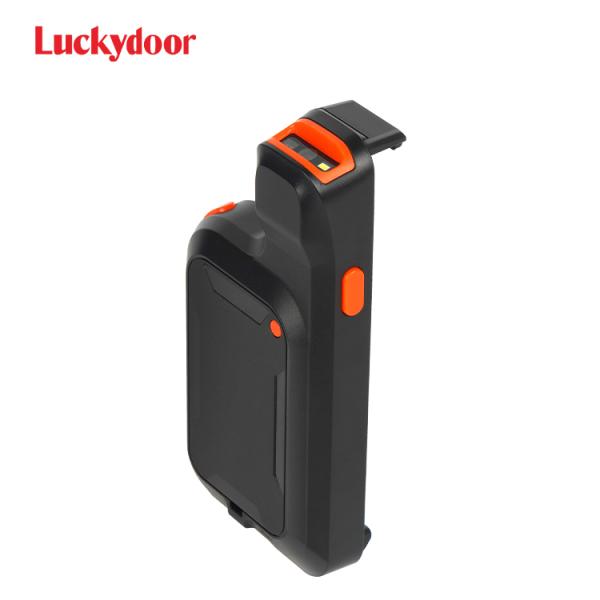

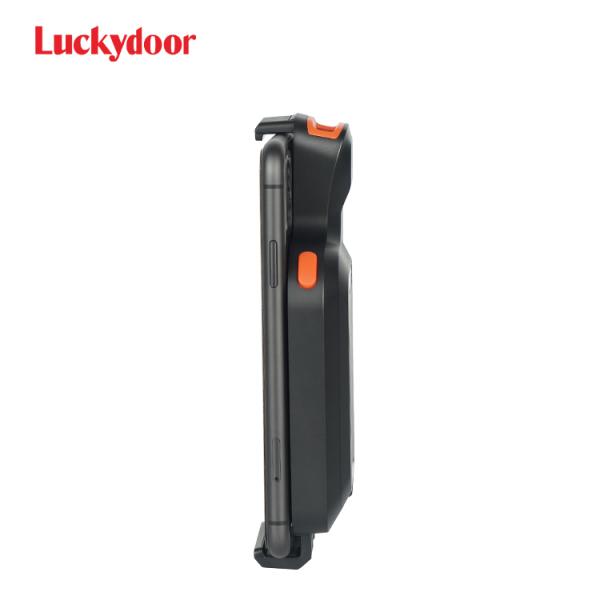

Details Images
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Application
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Product Advantage:
• Widely use in different application like warehouse,retail stores
• Long wireless transmission distance
• Supports 2.4G wireless,Bluetooth connection and USB wired connection

Packaging Details：Package Contents

1* barcode scanner
1* stand(optional)
1* User Manual (English version)
1* Cable (1.8m)
1* Warranty card
Syble barcode scanner standard package
Related Products
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
1D handheld wired laser barcode scanner
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
1D / 2D handheld wired barcode scanner
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
1D / 2D wireless barcode scanner
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
1D / 2D hands-free desktop barcode scanner
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
1D / 2D presentation desktop barcode scanner
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
1D / 2D presentation desktop barcode scanner
Company Profile
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
Barcode Scanner Tlphones Portables Wireless Back Clip Use with Rugged Phone Scanners
FAQ
1, Does this 2d blue tooth mini barcode scanner use usb type C?
Yes, it uses a USB type C for charging and connecting to a PC or notebook

2, How many barcodes can I store into this wireless blue tooth mini barcode reader ?
It can store max 35000 barcodes (EAN13)

3, Can I use this portable blue tooth barcode scanner as a wired scanner when the battery run out ?
Yes ,it can use as wired mode

4, What is your company warranty policy on this blue tooth portable barcode scanner ?
We support 2 years warranty on this blue tooth barcode scanner ,extended warranty is available
