Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Luckydoor Scanners Wired Lecteur Code bar for Pos Systems
Specifications
private mold :
NO
products status :
Stock
type :
Barcode Scanner
scan element type :
CMOS
colour depth :
32 Bit
interface type :
usb, COM
max paper size :
A4 Size
optical resolution :
Code39 4.8mil
scan speed :
25inch/63cm per second
Brand Name :
luckydoor
Place of Origin :
Guangdong, China (Mainland)
warranty(year) :
2-Year
after-sales service :
Free spare parts
software development kit (sdk) :
NO
color :
Black
Product name :
QR Code Scanner
Light source :
617nm LED Aimer, White LED
Housing Material :
ABS+PC
Depth of scan field :
5-390mm
Working current :
135mA
Weight :
250g
Dimensions (W x D x H): x H) :
102mm*71mm*177mm
Application :
Logistics,Supermarket,Store,Libary,Warehouse,Hospital,etc
Certificate :
CE, ROHS, FCC
Description

Luckydoor Scanners Wired Lecteur Code bar for Pos SystemsLKD K-626 Market hot selling RS232 POS QR Code Scanner for supermarket

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

Product Brief:

1.Light sources: 617nm LED Aimer,White LED

2.Scan Type: Image COMS

3.Scan Speed: >25inch/63cm per second

4.Working voltage & current: 5V,300mA

5.Interface: USB-HID, USB-COM, PS2, RS232

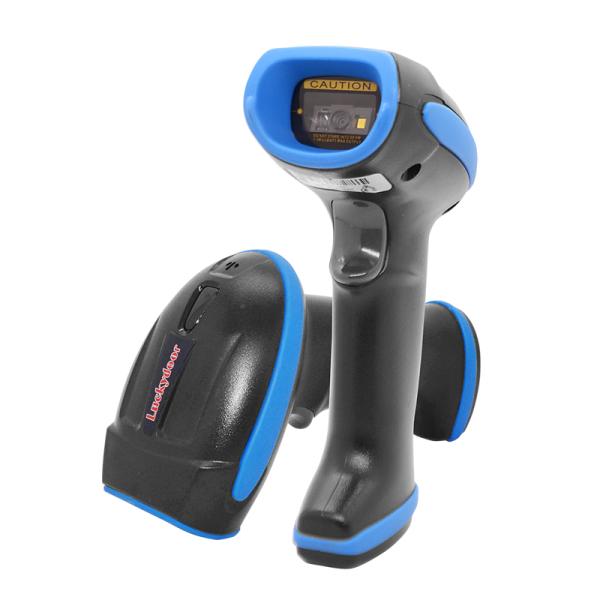

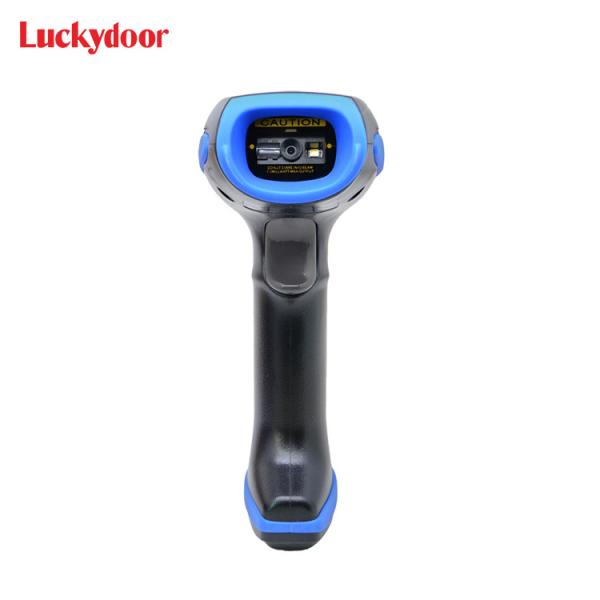

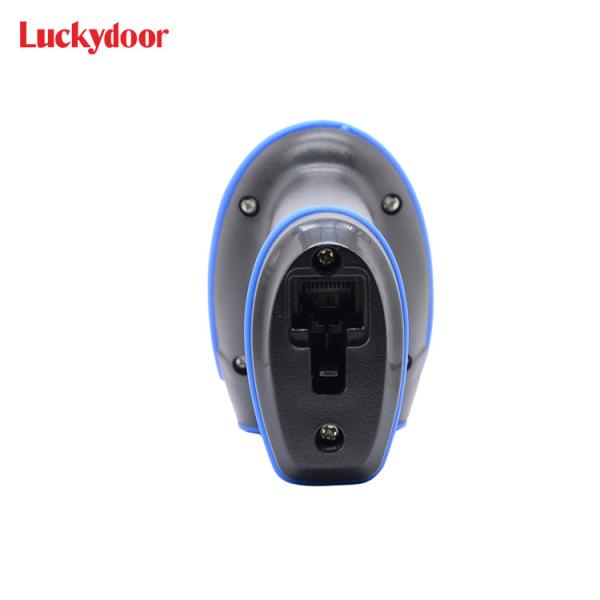

Photo details:

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

Working Parameters
Light Source 617nm LED Aimer,White LED
Scan Distance 5-390mm
Scan Angle Yaw 65°,Rotation 60°,Pitch 360°
Scan Speed >25inch/63cm each second
Min.Resolution SR;Code39 4.8mil,UPC60% 5mil,PDF417 5mil,Datamatrix7.5mil
Print Contrast Signal >30%(UPC/EAN 100%)
LED Indication white
Sound adjustable buzzer
Communication Interface HID USB,USB Virtual COM,RS-232 ,PS2
hysical Parameters
Dimension 176mmx100mmx72mm
Weight 354g (data line not included)
Wire Length 2.0m
Power Supply Parameters
Input Voltage 5VDC±1%
Working Current 85mA( operating)
Environment Parameters
Operating Temperature -20°C~+50°C
Operating Humidity 5%~95% no condensation
Storage Temperature -40°C~+70°C
Ambient Brightness 3000~8,000Lux(fluorescence),3000-8000Lux(sunlight)
Safety Standards
EMC CE EN55022 B, FCC Part 15 Class B, SGS, IP54 Waterproof Test,
Laser Safety IEC 60825-1 Class 1
Decode Type
1D Barcodes UPC/EAN/JAN ,UPC/EAN with Supplementals,UCC/EAN 128,
CODE 39,MSI,CODE 11,CODE 39 FULL ASCII,CODE 39 TriOptic
code 128,code 128Full ASCII,Codebar ,code 93,Discrete20f5,
IATA,RSSvariants,Codabar,Chinese2of5,Inteleaved2/5
interleaved2of5,china post code and all international 1D code
2D Barcodes PDF417, Data Matrix, QR Code, Aetec, Hanxin.

Packing Details:

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

List per Unit:
1*rs232 pos qr code scanner of K-626

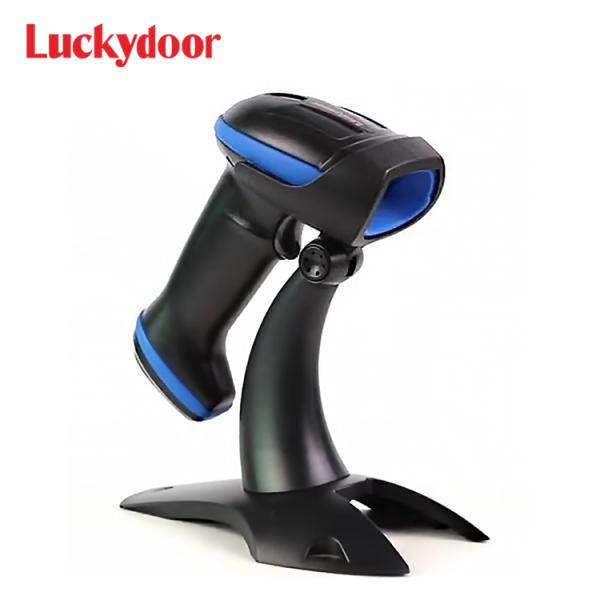

1*Stand(optional)
1*2Cable
1*User Manual(English Version)
Dimensions per Unit: 10*8*19 CM /10*8*24CM
Units per Export Carton: 50 Units
Export Carton Dimensions: 53*50*42.5 CM /65*50*50CM

Related Products

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

Click here to see more product

Or send your inquiry details in the below, Click "Send" Now !!!

Company Information

Luckydoor Scanners Wired Lecteur Code bar for Pos SystemsLuckydoor Scanners Wired Lecteur Code bar for Pos SystemsLuckydoor Scanners Wired Lecteur Code bar for Pos Systems

Certificates

Luckydoor Scanners Wired Lecteur Code bar for Pos SystemsLuckydoor Scanners Wired Lecteur Code bar for Pos SystemsLuckydoor Scanners Wired Lecteur Code bar for Pos Systems

FAQ

Luckydoor Scanners Wired Lecteur Code bar for Pos Systems

Q1. Are you manufacturing company or a trading company?
We are manufacturing company with our own factory and we could arrange a factory tour for you.

Q2. Can I get a sample from you?
Yes. You could contact us for a paid sample.

Q3. Do you have OEM/ODM services?
Yes. We are the factory directly, we have our own R&D team, we can make it as you requirement, Please contact us for details.

Q4. What's the MOQ for your products?
MOQ for most of our products is 1 Unit. If you purchase large qty,you will get a better price.

Q5. Can I get some technical supports from you?
Of cause! Our technical team always gets ready at any time.

Q6. What's the payment term?
By T/T, Western Union, Money Gram, PayPal, etc.

Q7. What's the shipping way?
Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
