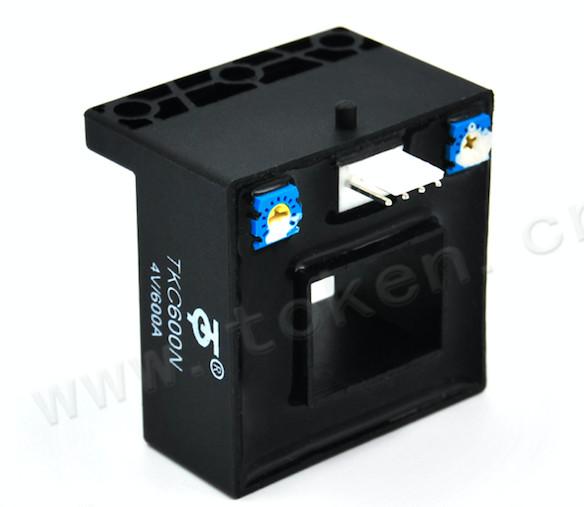

UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current
Specifications
Brand Name :
TOKEN
Model Number :
TKC-N/NR
Certification :
CE;ROHS
Place of Origin :
Nanjing,China
MOQ :
10pcs
Price :
Price reconsideration
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
10K pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Little carton:34*23*21CM 36pcs/carton;Large carton size 48*37*26CM 72pcs/carton
Product name :
TKC-N/NR series current sensor
principle :
hall effect
application :
Switched Mode Power Supplies
Input current :
100-2000A
Supply voltage :
±15 ±5%
Standards :
IEC60950-1:2001
Description

UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current

The TKC-N/NR series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

Type

Parameter

 TKC100N/NR TKC200N/NR TKC300N/NR TKC400N/NR TKC500N/NR TKC600N/NR

Unit

Rated input (Ipn)		 ±100 ±200 ±300 ±400 ±500 ±600 A

Measure range(Ip)		 ±300 ±600 ±900 ±1000 ±1000 ±1000 A

Rated output		 @Ip=±Ipn ±4±1% V

Supply voltage		 ±15 ±5% V

Power Consumption

 +18,-10 mA

Offset voltage		 @Ip=0 ≤25 mV

Magnetic offset		 @Ip=±Ipn ≤±30 mV

Offset drift		 @ -40℃～+85℃ ≤±0.5 mV/℃

output drift		 @ -40℃～+85℃ ≤±0.5 mV/℃

Linearity		 @Ip=0-±Ipn ≤1 %FS

Response time		 @50A/μS, 10%-90% ≤5 μS

Galvanic isolation		 @ 50HZ,AC,1min 3.0 KV

Applications

Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical

Switched Mode Power Supplies (SMPS)

Mechanical dimension(for reference only)


UL94-V0 Open Loop Hall Effect Current Sensor 100-2000A Input Current

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor).

Customs can adjust Output amplitude of the sensor by needs.

Custom design in the different rated input current and the output voltage are available.

Standards

  • UL94-V0.
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 79 g M

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise
