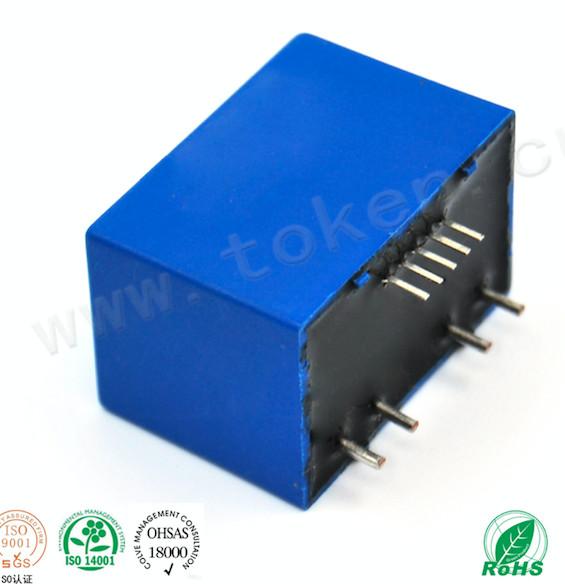

TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement
TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement
TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement
TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement
Specifications
Brand Name :
TOKEN
Model Number :
TBC-PX5
Certification :
CE;ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Price Reconsideration
Supply Ability :
2.2K pcs per month
Packaging Details :
Little Carton Size:34*23*21CM;240pcs/Carton ;Large Carton Size:48*37*26CM;480pcs/Carton
application :
Uninterruptible Power Supplies
Mounting Type :
PCB Mounting
Principle :
null balance
Standard :
high precision
product name :
Hall Effect Current Sensor
Operating temperature :
-40～+85
Description

TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement

TBC-PX5 series current sensor is two closed loop device based on the measuring principle of the hall effect,

with a galvanic isolation between primary and secondary circuit. It has strong anti-jamming ability and provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type

Parameter

TBC03

PX5

TBC05

PX5

TBC10

PX5

TBC15

PX5

TBC20

PX5

TBC25

PX5

TBC30

PX5

TBC50

PX5

 Unit

Rated input (Ipn)		 3 5 10 15 20 25 30 50 A
Measuring range(Ip) 6.6 11 22 33 44 55 66 110 A
Turns ratio(Np/Ns) 4: 5:1500 3:1500 2:1000 2:1500 1:1000 1:1250 1:1500 1:1000

Inside resistance

 100±0.1% 100±0.1% 50±0.1% 50±0.1% 50±0.1% 50±0.1% 50±0.1% 20±0.1% Ω
Rated output @ Ip=Ipn, 1.0±0.5%FS V
Supply voltage +5±5% V
Power consumption ≤20+IpX(Np/Ns) mA

Zero voltage		 @ Is=0 2.5±0.5% V

Zero drift		 @ -40～+85℃ ≤±0.5 mV/℃
Linearity @ Ip=0-±Ipn ≤0.1 %FS
Response time @ Ip=Ipn, 50 A/µS ,10%-90% ＜500 ns
Bandwidth @ -1dB 0—100 KHZ
Galvanic isolation @ 50/60HZ, AC, 1min 5.0 KV
Applications


Variable speed drives

Welding machine

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Electrochemical

DC motor drives

Mechanical dimension(for reference only)

TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement

Remarks:

1. All dimensions are in mm.

2. General tolerance ±1mm.

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor).

Custom design in the different rated input current and the output voltage available.

Standards

  • UL94-V0
  • EN60947-1:2004
  • IEC60950-1:2001
  • EN50178:1998
  • SJ 20790-2000

General date

Value Unit Symbol
Operating temperature -40 to +85 ºC TA
Storage temperature -40 to +125 ºC TS
Mass(approx) 18 g M

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise

TBC-PX5 Hall Effect Current Transducer DC AC Or Pulsed Current Measurement
