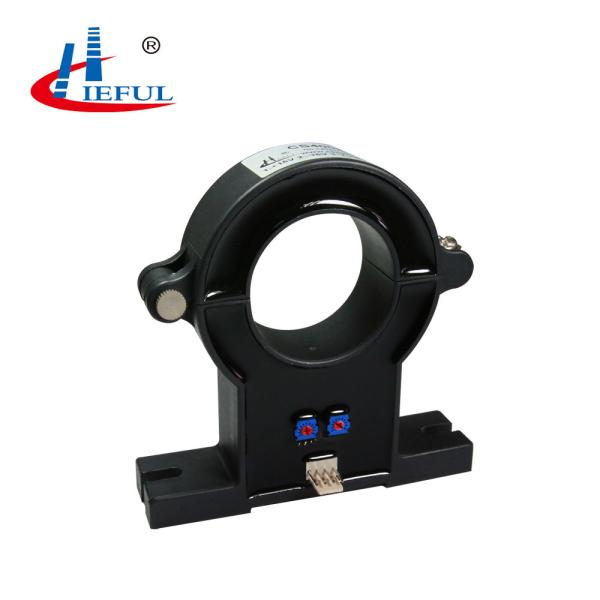

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color
Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
chieful
Model Number :
CS500EKG
MOQ :
1-499 Pieces
Price :
Negotiable
Usage :
Magnetic Sensor
Theory :
Hall Sensor
Output :
Analog Sensor
color :
blue
diameter :
20.5 mm
weight :
50g
detachable :
yes
Application :
welding machine,power solar ...
Product name :
dc current sensor CS500EKG
Certificate :
CE ,RoHS,ISO9001
Capacity :
10000pcs/month
Warranty :
5years
Type :
Open loop
Selling Units :
Single item
Single package size  :
23X18X7 cm
Single gross weight :
0.05 kg
Package Type :
packing in bubble and carton
Description
Product Description

dc current sensor CS500EKG

The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

Applications

1. VF speed regulating device

2. Inverter / Converter

3. UPS

4. SMPS

5. Electric locomotive

6. Grid monitoring

7. Industrial power supply (welding machine, textile machine, etc. )

Electrical characteristics
Type CS100EKG CS200EKG CS300EKG CS500EKG CS600EKG
IPN Primary nominal input current 100 200 300 500 600 A
IP Measuring range of primary current 0～±200 0～±400 0～±600 0～±1000 0～±1200 A
VOUT Nominal output voltage 4(±1%) V
VC Supply voltage ±12~±15(±5%) V
IC Current consumption 25 mA
Vd Insulation voltage AC/50Hz/1min 3.0 kV
εL Linearity ±1 %FS
V0 Offset voltage TA =25℃ 25 mV
VOM Residual voltage IPN→0 <±20 mV
VOT Thermal drift of V0 IPN=0 TA =-25～+85℃ <±1 mV/℃
Tr Response time ≤7 μs
f Frequency bandwidth(-3dB) DC～20 kHz
TA Ambient operating temperature -25～+85 ℃
TS Ambient storage temperature -40～+100 ℃
RL Load resistance ≥10K Ω
m Mass 50 g
Standard Q/320115QHKJ01-2010
Dimensions of drawing (mm)

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color

About us

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color

CHIEFUL offers a wide range of current and voltage transducers in the portfolio. And our transducer can be designed according to the specific demands.The company explore foreign markets actively, our products have been sold to the United Kingdom, Germany, Denmark, France, Italy, Sweden,Turkey, Israel, South Korea, India etc.

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue ColorSplit Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color

Exhibition

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color

Logistics packaging

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color

Split Core Hall Effect DC Current Sensor For Magnetic Sensor Blue Color
