Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet
Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet
Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet
Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet
Specifications
Supply Ability :
1000units per month
Operating Voltage of Movement :
DC24V
Brand Name :
GUIANKEJI
Overall Mounting Dimension :
246*100mm
Model Number :
3GZ-001
Solenoid Valve :
DC24V
MOQ :
1 sets
Delivery Time :
30 to 90 days
Motor :
24V 40W, L-60 Brushless Motor
Payment Terms :
L/C,D/A,D/P,T/T
Control Signal :
Switch Signal
Price :
Discuss based on needs
Model :
FAT-QZDS07
Certification :
EMC-FCC
Recommended Cabinet Width :
≥220mm
Place of Origin :
China
Description
Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet
High-security tripod turnstile mechanism featuring L-type design with electromagnet locking system for controlled access management.
Technical Specifications
Parameter Item Parameter Value
Model FAT-QZDS07

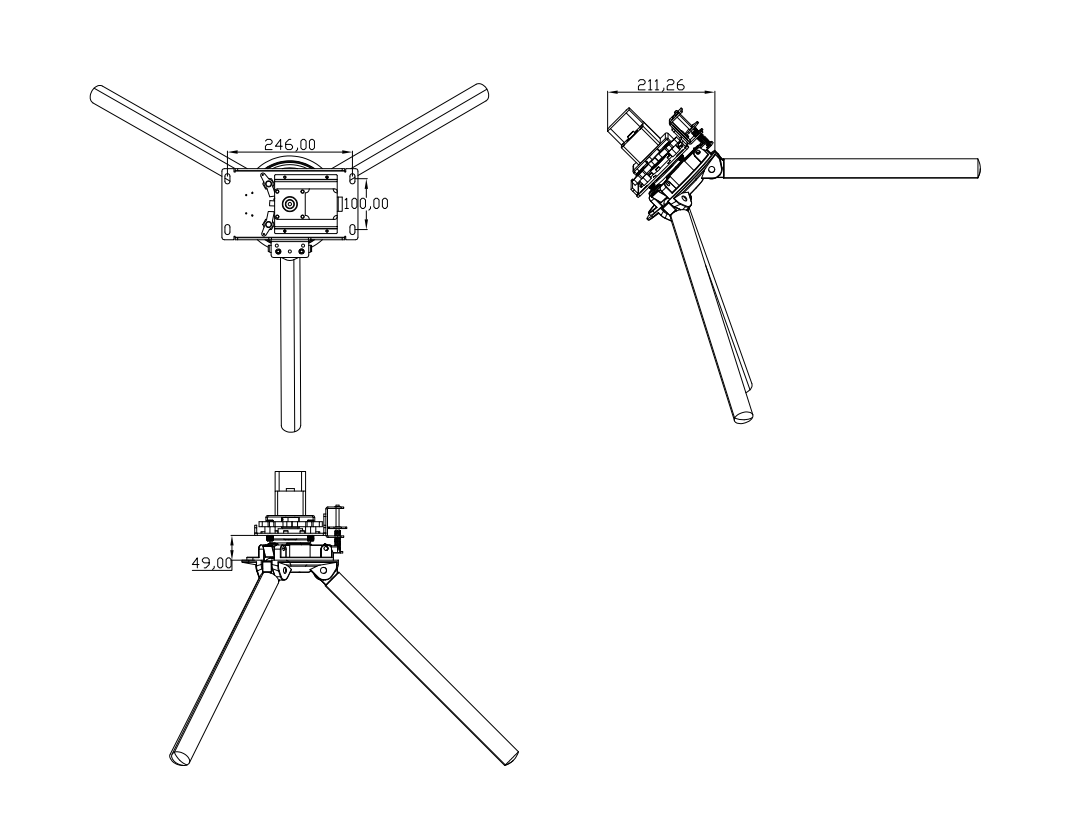

Overall Mounting Dimension 246*100mm
Recommended Cabinet Width ≥220mm
Solenoid Valve DC24V
Operating Voltage of Movement DC24V
Motor 24V 40W, L-60 Brushless Motor
Control Signal Switch Signal
Passage Capacity Approx. 30 persons/min
Card Reader Mounting Positions 2 pcs
Gate Opening & Closing Time Approx. 0.6s
Operating Ambient Temperature -30℃ ~ 60℃
Key Features
  • Full-automatic operation supported. After card swiping, the gate opens slightly as a prompt for passage. Auto-reset arm function upon power-on.
  • The solenoid valve remains de-energized in standby mode. When pushing the arm without authorized access, the solenoid valve activates to lock the corresponding passage direction. Once pushing stops and the rotary arm resets to zero position, the solenoid valve deactivates for the next operation cycle.
  • Compared with conventional full-automatic tripod turnstiles with clutches, this movement delivers smoother pushing experience. Traditional clutch-type movements allow partial arm rotation after clutch release; repeated pushing may force unauthorized passage. This design completely eliminates such risk — the rotary arm cannot be pushed without card authorization, ideal for high-security premises.
Product Images

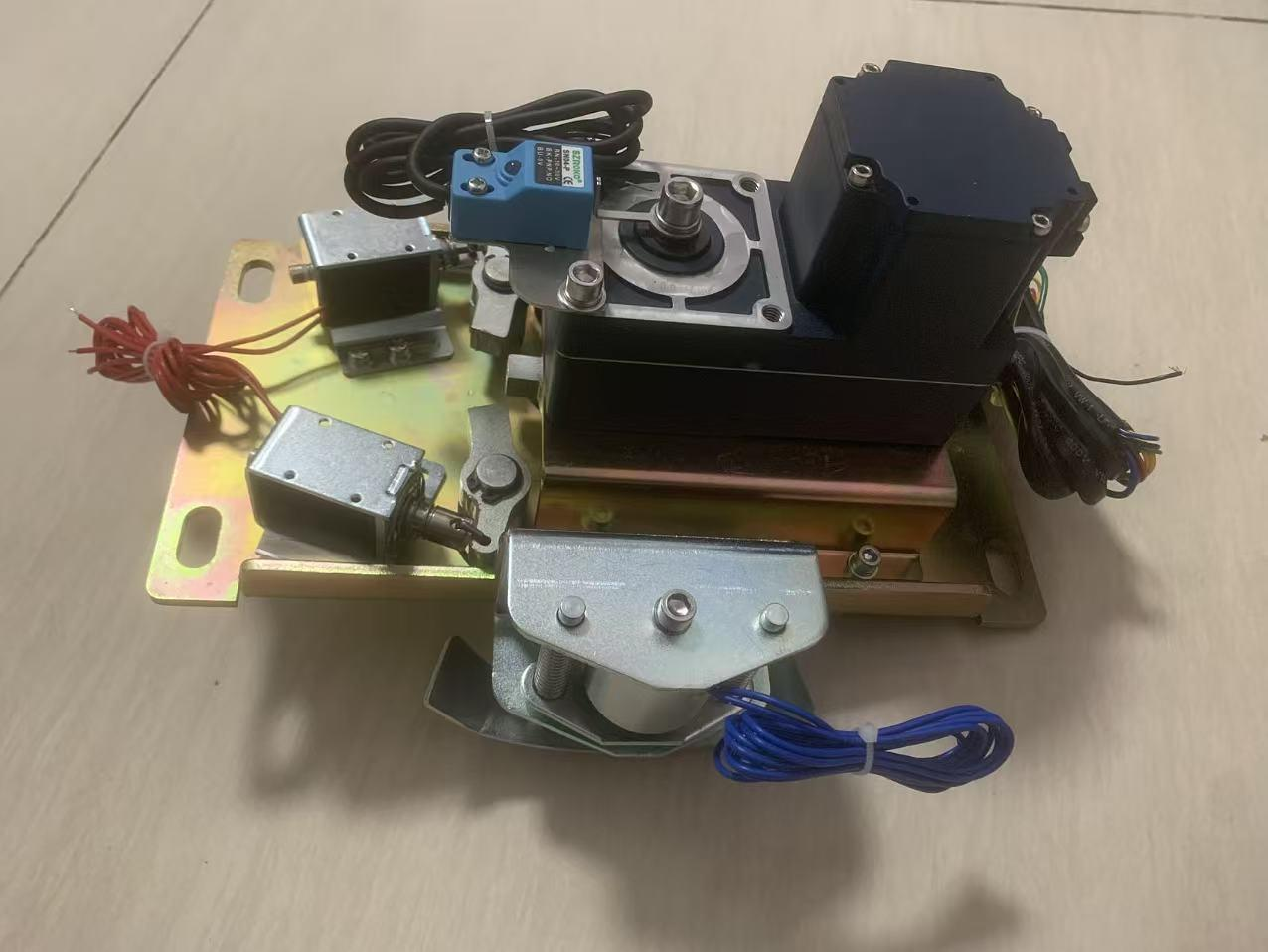

Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet
