Specifications
Supply Ability :
1000units per month
Model :
FAT-QGJX1
Model Number :
ZJJX-001
Passing Capacity :
Approx. 30 persons per minute
MOQ :
1 sets
Delivery Time :
30 to 90 days
Motor :
Model 80 Eccentric Shaft Brushless Motor, 24V 80W
Payment Terms :
L/C,D/A,D/P,T/T
Mounting Dimension :
340mm*210mm
Movement Operating Voltage :
DC24V
Price :
Discuss based on needs
Required Top Cover Height :
≥190mm
Solenoid Valve :
DC24V
Gate Opening & Closing Time :
Approx. 0.6 seconds
Brand Name :
GUIANKEJI
Operating Ambient Temperature :
-30℃ ~ 60℃
Certification :
EMC-FCC
Place of Origin :
China
Packaging Details :
Wooden case
Description
Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement
High-performance movement mechanism designed for full automatic tripod turnstiles, providing reliable access control with advanced security features.
Technical Specifications
Parameter Item Parameter Value
Model FAT-QGJX1
Mounting Dimension 340mm × 210mm
Required Top Cover Height ≥190mm
Solenoid Valve DC24V
Movement Operating Voltage DC24V
Motor Model 80 Eccentric Shaft Brushless Motor, 24V 80W
Control Signal Switch Signal
Passing Capacity Approx. 30 persons per minute
Card Reader Mounting Positions 2 sets
Gate Opening & Closing Time Approx. 0.6 seconds
Operating Ambient Temperature -30℃ to 60℃
Key Features & Functions
  • Driven by high-power motor with electromagnetic locking system that resists unauthorized pushing and automatically releases only when arm resets to zero position
  • After card verification, motor rotates arm 5-10 degrees as passage prompt, allowing light push to drive automatic rotation to designated position
  • Reverse pushing triggers electromagnetic lock that releases only when arm returns to zero position
  • Eliminates locking defects of clutch-type movements, preventing unauthorized forced access through repeated pushing
  • Quieter and vibration-free operation with auto rotation, non-overheating electromagnet, and reliable anti-reverse rotation angle control
  • Advanced technology with premium appearance, ideal for high-end venues and applications

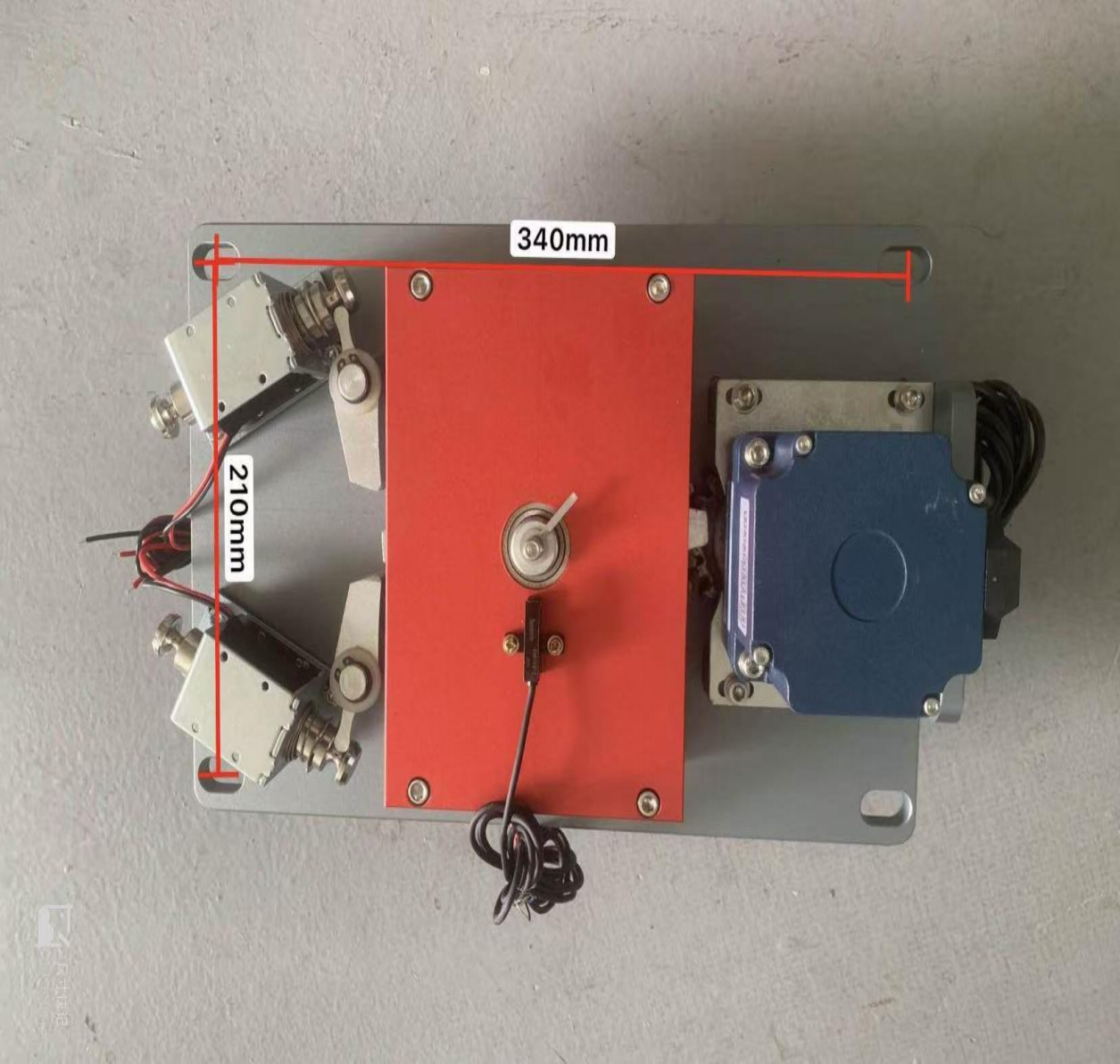

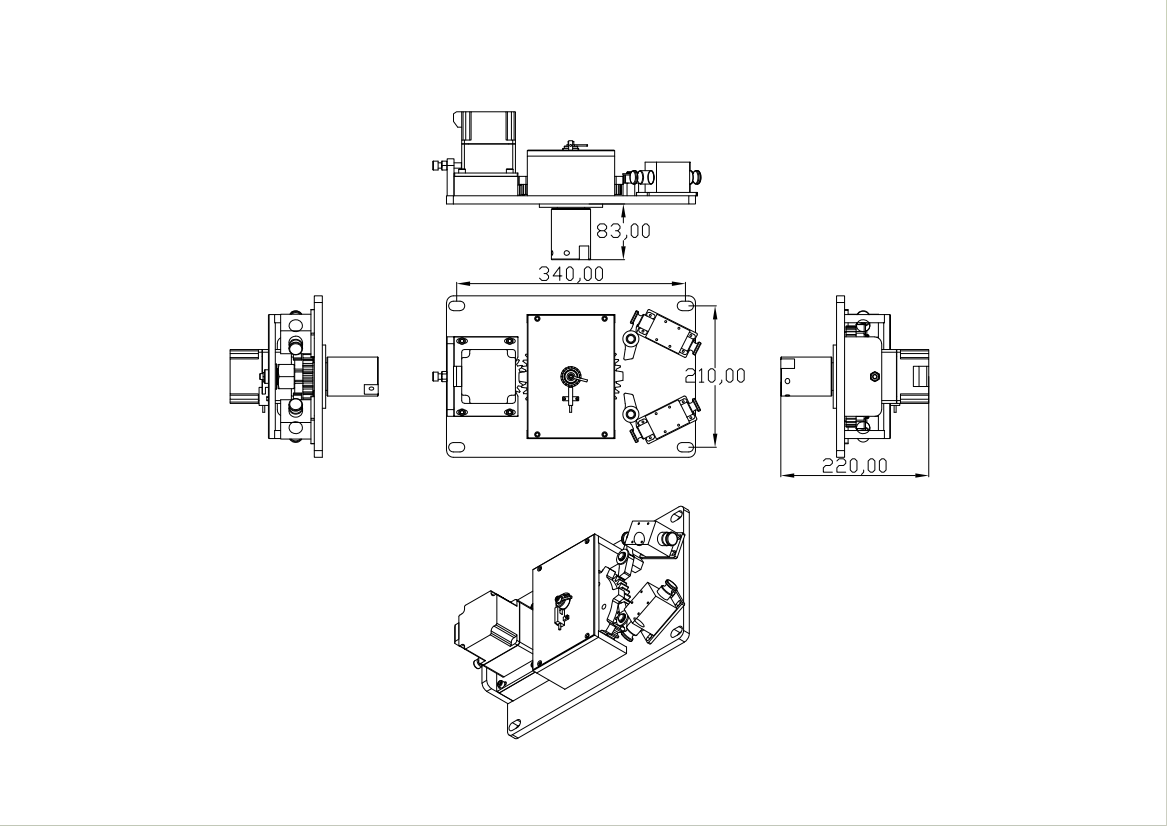

Product Images
Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile
