Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Specifications
Supply Ability :
300 units per month
Transmission Guide Rail :
Ultra-quiet high-strength aluminum alloy ball guide rail, operating noise ≤65dB; Suspended and fixed by 6061 aluminum alloy high-strength steel base bracket
Model Number :
pym-001
Communication Interface :
Reserved 485/232 communication port
MOQ :
2 sets
Delivery Time :
30 to 90 days
Drive Motor :
Brushless DC motor, 24V, 1800RPM, reduction ratio 36:1, adjustable speed; Base made of 6mm thick Q345 high-strength alloy steel with electroplating process, supports adjustable fixed installation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Power :
40W
Price :
2000$-10000$
Decorative Cover Plate :
1.5mm thick oil brushed 304 stainless steel, processed by grooving then bending, seamless and tight docking, smooth surface; Whole machine appearance protection class IP54
Certification :
EMC-FCC
Name :
Half Height PSD
Kick Plate :
1.5mm thick oil brushed 304 stainless steel plate
Place of Origin :
China
Packaging Details :
Wooden case
Fixed Side Box / Fixed Frame :
304 stainless steel, formed by bending process
Brand Name :
GUIANKEJI
Description

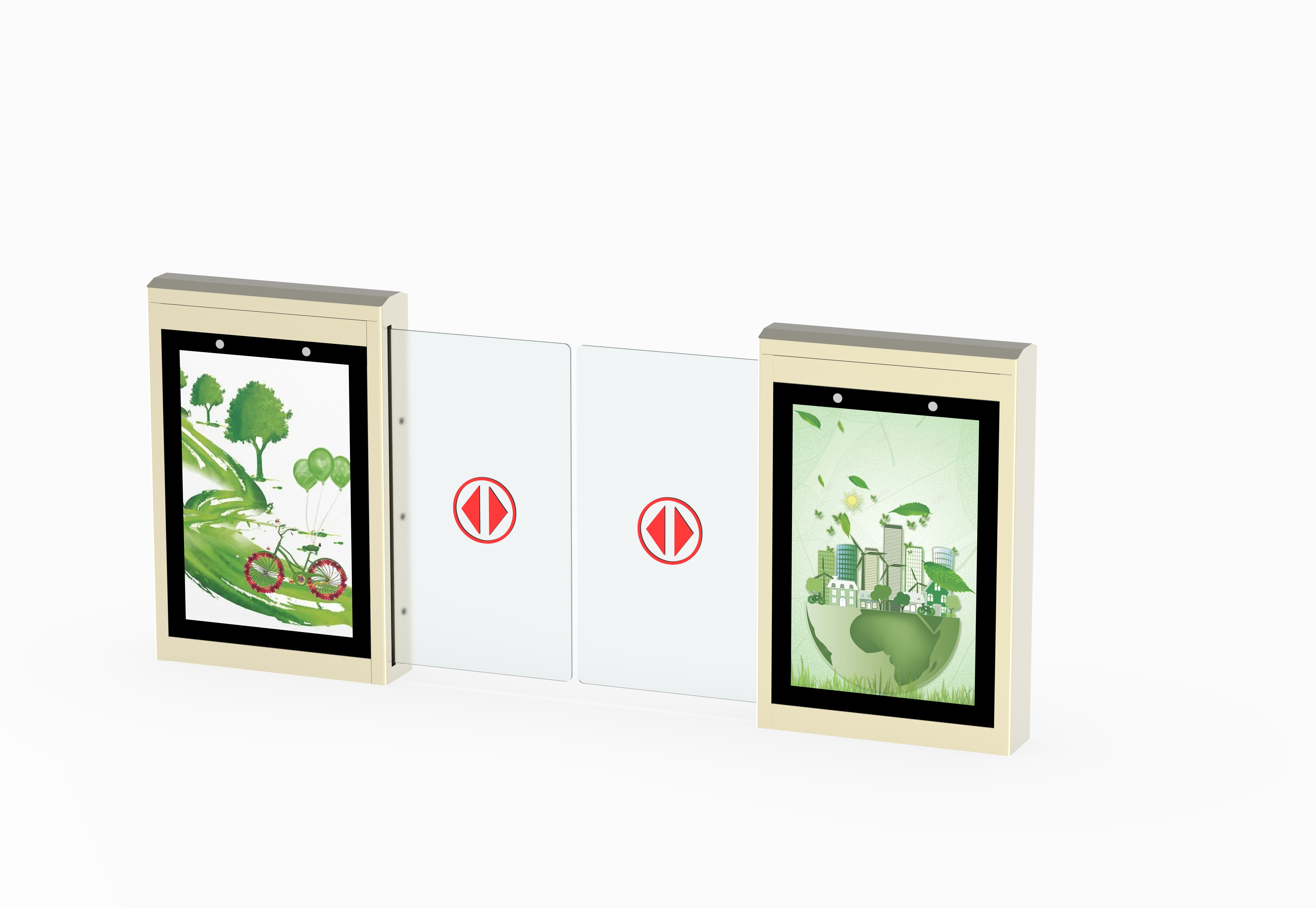

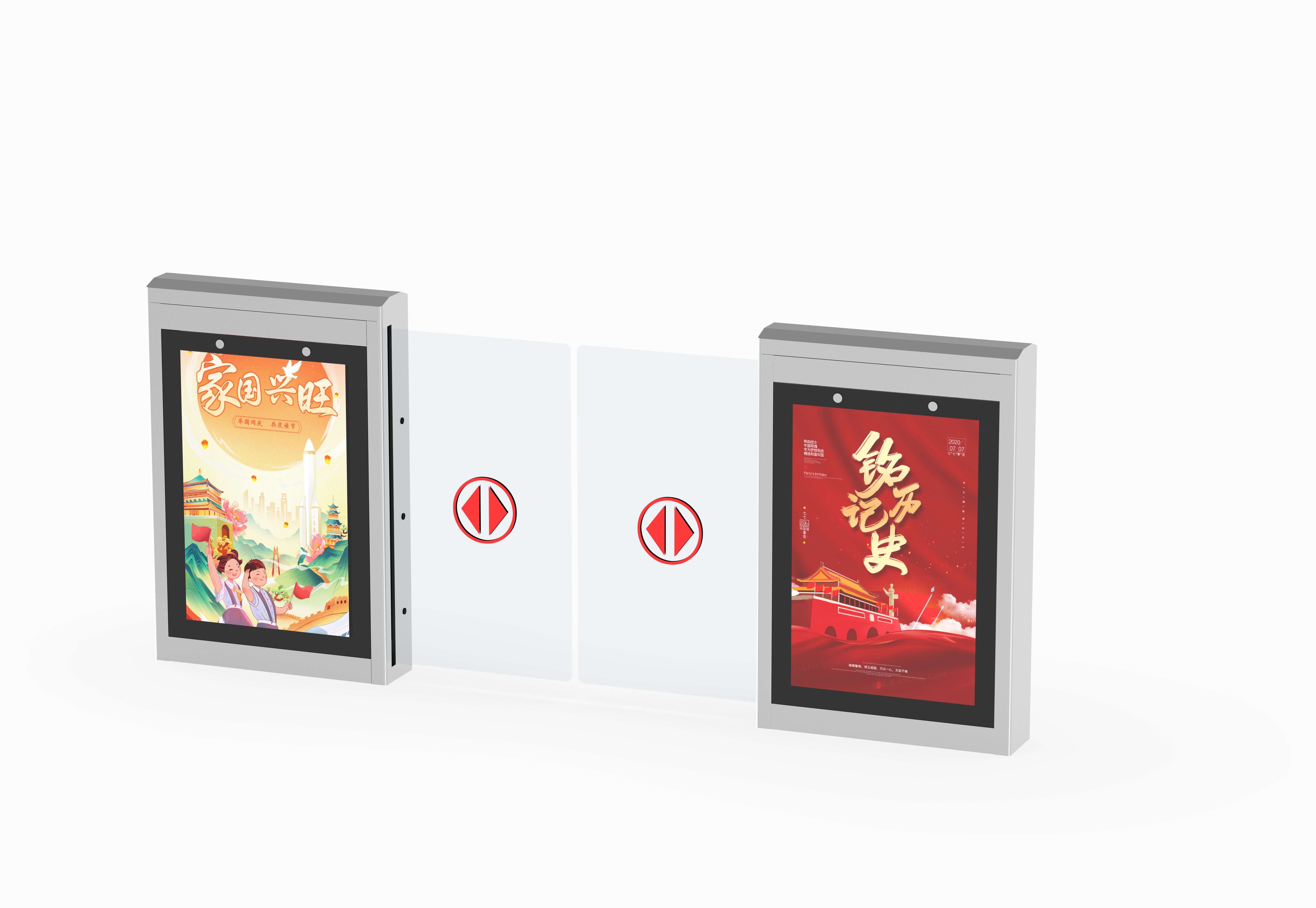

Half Height PSD Office & Supermarket Sliding Access Gate
Half height PSD Office & Supermarket Sliding Access Gate
Technical Specifications
Category Parameter Item Detailed Description
Power & Transmission System Drive Motor Brushless DC motor, 24V, 1800RPM, reduction ratio 36:1, adjustable speed; Base made of 6mm thick Q345 high-strength alloy steel with electroplating process, supports adjustable fixed installation
Rated Power 40W
Transmission Device Connecting rod transmission structure, which can cushion load impact, stable operation, durable, wear-resistant and tensile-resistant
Transmission Guide Rail Ultra-quiet high-strength aluminum alloy ball guide rail, operating noise ≤65dB; Suspended and fixed by 6061 aluminum alloy high-strength steel base bracket
Body Structure & Material Internal Main Frame 3mm thick high-quality structural steel, electrogalvanizing process; All machined parts are CNC processed, seamless docking with Luban mortise and tenon process, reinforced by fusion welding
Fixed Side Box / Fixed Frame 304 stainless steel, formed by bending process
Decorative Cover Plate 1.5mm thick oil brushed 304 stainless steel, processed by grooving then bending, seamless and tight docking, smooth surface; Whole machine appearance protection class IP54
Top Cover Assembly 1.5mm thick oil brushed 304 stainless steel, closed locking design, dustproof and waterproof safety cover, equipped with LCB lock
Kick Plate 1.5mm thick oil brushed 304 stainless steel plate
Chassis Door 304 stainless steel mirror finish frame, with 5mm tempered and painted clear glass, fixed with customized stainless steel lock
Sliding Door Assembly Sliding Door Main Frame Fixed with 6061 aluminum alloy splint bracket, door panel made of high-transparency imported acrylic material, can display red, green and blue lights when opening and closing
Adjustment & Connection Mechanism 12.9 grade high-strength bolts for reamed holes; 4 sets of adjustable movable leaf adjustment mechanisms; 6063 aluminum alloy slideway; Multiple sets of silent ball guide rails; 2 sets of anti-falling fastening adjustable devices
Electronic Control & Lighting System Indicator Light Assembly LED three-color light, green light flashes when opening, red light flashes when closing, automatically synchronized with the opening and closing action of the movable leaf
Timed Lighting LED lighting strip inside the chassis frame, can customize the switch duration, with automatic start-stop function, suitable for paper advertisement display needs
Remote Control System Wireless receiving module, remote control distance ≥30 meters, supports one-to-many control and multi-device sharing function
Power Supply Cable Original factory matched ZR-KVV national standard cable
Communication Interface Reserved 485/232 communication port
Safety & Performance Standards Safety Mark Safety signs and operation prompts are pasted on the chassis, movable leaf and electronic control center
Service Life Average trouble-free operation times ≥5 million times, corresponding test report can be provided
Product Images
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
Security Door System Automatic Sliding Access Gate Supermarket Office Entry Barrier Control
