30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
Specifications
Supply Ability :
500 units per month
Model Number :
pyz-001
Application Scenarios :
Serves as the opening & closing drive component for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Especially suitable for turnstile lanes with medium & large pedestrian flow demand.
MOQ :
2 sets
Delivery Time :
30 to 90 days
Operating Voltage :
DC 24V
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Optional Motors :
Brushless motor, brushless servo motor, servo motor
Price :
Discuss based on needs
Core Structural Advantages :
1. All structural parts are precisely CNC machined. Equipped with high-strength bearings and slide rails to guarantee long service life and structural rigidity. Adopts connecting rod mechanism to realize self-locking during gate opening & closing; silent b
Certification :
EMC-FCC
Lane Dimension :
500mm–1200mm (customizable)
Brand Name :
GUIANKEJI
Name :
Sliding Turnstile
Place of Origin :
China
Customizable Item :
Adjustable stroke available for customization
Packaging Details :
Wooden case
Description
Sliding Gate Mechanisms Customizable Stroke Medium & Large Pedestrian Flow High-speed Railway / Metro / Turnstile Sliding Barrier Mechanism
Product Overview

Sliding Gate Mechanisms - Economic Sliding Turnstile Core Mechanism

Economic sliding turnstile core mechanism designed for pedestrian flow control in various security applications.

Product Specifications
Product Name Economic Sliding Turnstile Core Mechanism
Application Scenarios Acts as the opening and closing drive assembly for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Especially ideal for lanes with low pedestrian flow demand.
Custom Stroke Customizable stroke range: 500-600mm
Lane Width 500mm-600mm (customizable)
Operating Voltage DC 24V
Optional Motor Configurations Brushless motor, brushless servo motor, servo motor
Structural & Running Features
  • All structural components are precisely CNC machined. Equipped with high-strength bearings and slide rails to ensure outstanding durability and structural strength.
  • Adopts connecting rod self-locking structure for gate opening & closing; silent ball linear guides deliver ultra-quiet operation.
  • Suitable for both indoor and outdoor installation.
  • Passing speed: 30-40 persons per minute
  • Operating temperature: -25°C ~ 75°C

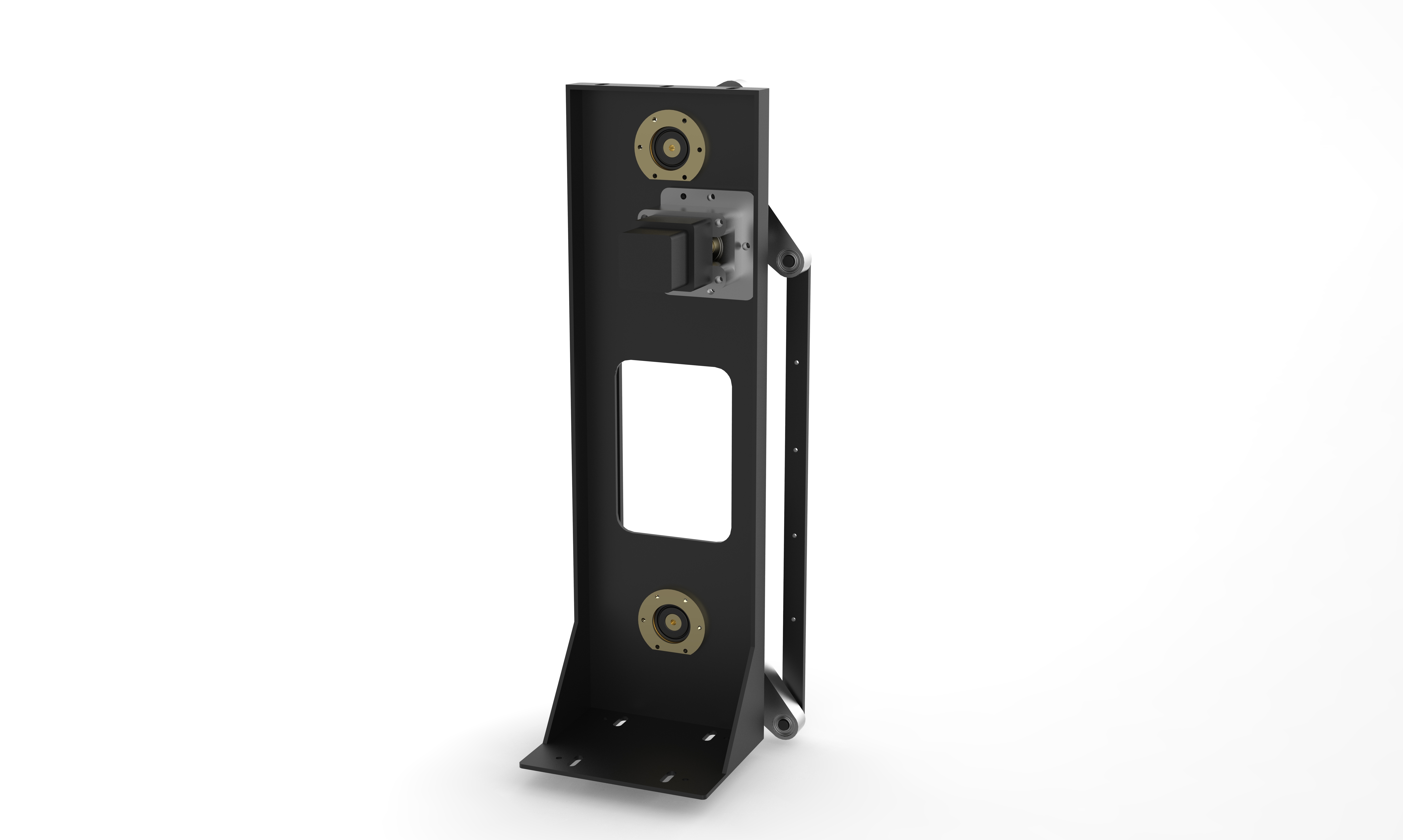

Product Images
30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke 30-40 Persons/Min Sliding Turnstile Core Mechanism Customized Stroke
