Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
Specifications
Delivery Time :
30 to 90 days
Model Number :
stm-001
Application Scenarios :
Serves as the opening & closing drive assembly for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Perfectly suitable for narrow installation sites with limited floor space.
Price :
Discuss based on needs
Packaging Details :
Wooden case
Operating Voltage :
DC 24V
Supply Ability :
1000units per month
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Optional Motor Configurations :
Brushless motor, brushless servo motor, servo motor
Place of Origin :
China
Passing speed :
30–40 persons per minute
Brand Name :
GUIANKEJI
Certification :
EMC-FCC
Product Name :
Speed Gate Core Mechanism
MOQ :
2 sets
Operating temperature :
-25°C ~ 75°C
Description

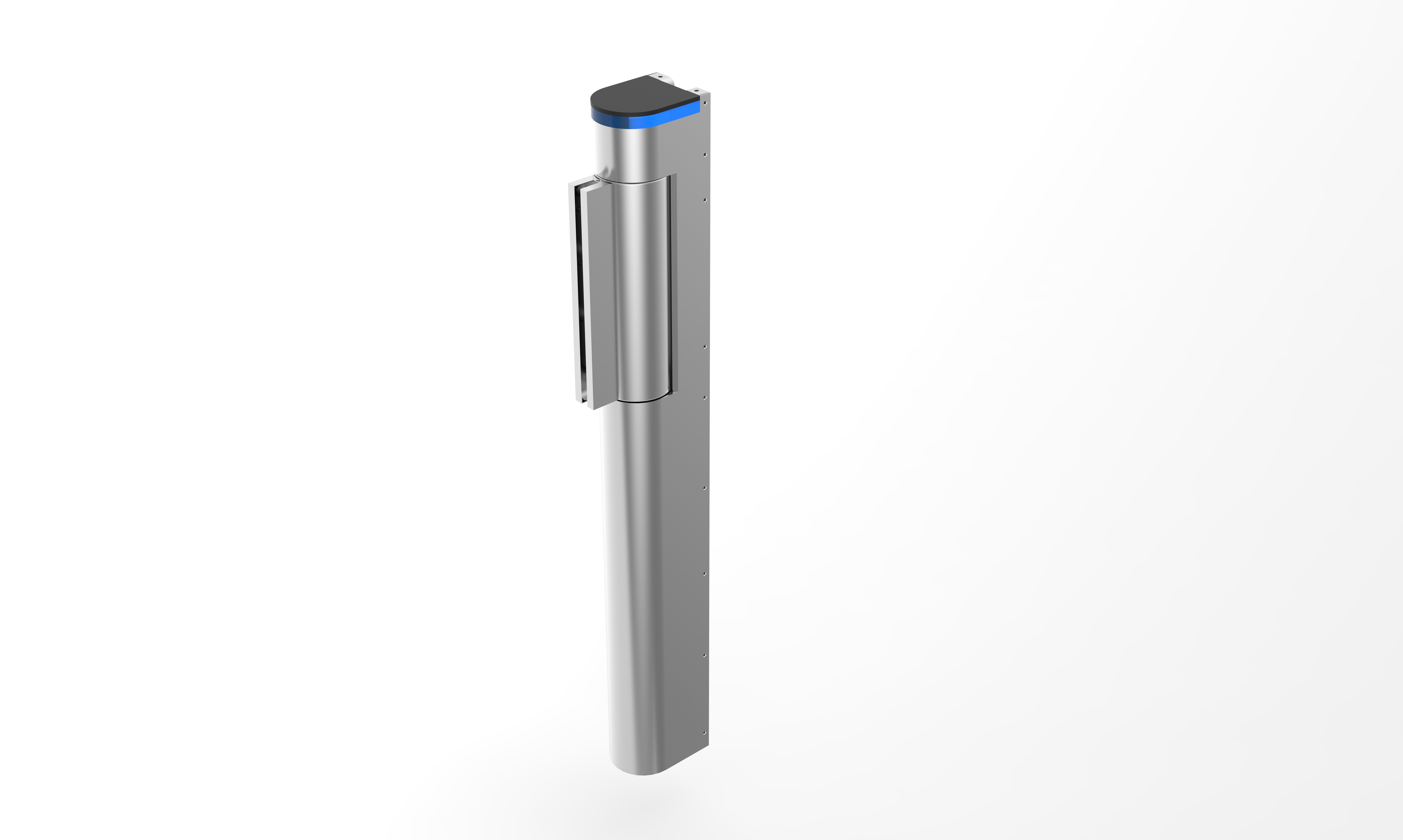

Speed Gate Mechanisms with Tri-color Indicator Light
Product Overview

Advanced speed gate core mechanism featuring tri-color indicator light, clutch locking function, and infrared radar sensor integration. Engineered for high-traffic access control applications requiring reliability and precision.

Technical Specifications
Product Name Speed Gate Core Mechanism
Application Scenarios Serves as the opening & closing drive assembly for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Perfectly suitable for narrow installation sites with limited floor space.
Maximum Passage Width Single gate: 900mm; Double gate: 1800mm
Operating Voltage DC 24V
Optional Motor Configurations Brushless motor, brushless servo motor, servo motor
Structural & Performance Features
  • The roller drum is precisely CNC machined from 5.0mm thick seamless SUS304 stainless steel pipe
  • All internal structural components adopt CNC precision processing
  • High-strength bearings guarantee long service life and structural rigidity
  • Sophisticated built-in mechanical structure supports clutch locking and anti-push locking functions
  • Tri-color top indicator light: blue for standby status, green for normal communication/passage, red for unauthorized intrusion alert
  • Reserved mounting positions for infrared radar sensors as required
  • Applicable for both indoor and outdoor installation
  • Passing speed: 30-40 persons per minute
  • Operating temperature: -25°C ~ 75°C
Performance Highlights

Designed for high-efficiency operation with a passing speed of 30-40 persons per minute and robust construction capable of operating in extreme temperatures from -25°C to 75°C.

Product Images
Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System Tri Color Indicator Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor Access System
