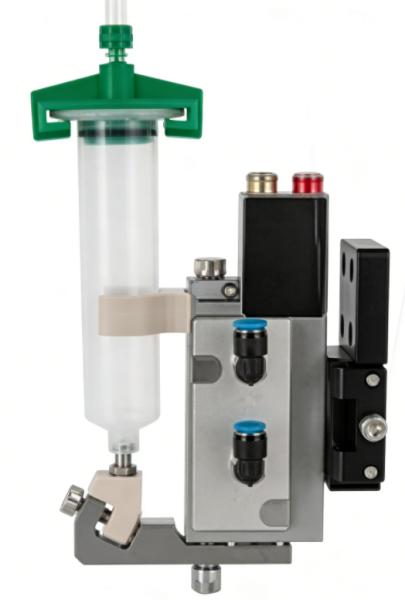

Non Contact Dispensing Valves High Precision Piezoelectric Jet Valve For Underfill Applications
Non Contact Dispensing Valves High Precision Piezoelectric Jet Valve For Underfill Applications
Non Contact Dispensing Valves High Precision Piezoelectric Jet Valve For Underfill Applications
Non Contact Dispensing Valves High Precision Piezoelectric Jet Valve For Underfill Applications
Specifications
Non-Contact Operation :
Eliminates Z-axis movement, increases throughput
Payment Terms :
T/T
Broad Material Compatibility :
Epoxy, UV, silicone, ink, primer, and more
Ultra-Wide Viscosity Range :
0-2,000,000 cps—solvents to thick pastes
Place of Origin :
China
Piezoelectric Actuation :
High-speed, precise droplet ejection
Model Number :
H-Y01
Nanoliter PrecisionMicro-Feature Capability :
0.15mm dots, 0.20mm lines
Excellent Consistency :
±2% dot-to-dot repeatability
MOQ :
1 unit
Brand Name :
Haipai
Delivery Time :
15 working days
Description
H-Y01 Piezoelectric Jet Valve
High-precision non-contact dispensing solution for underfill applications
Advanced Dispensing Technology
The H-Y01 Piezoelectric Valve represents the pinnacle of dispensing technology, offering non-contact jetting with exceptional precision across an extraordinarily wide range of materials. Using advanced piezoelectric actuation, it ejects tiny droplets at high speed without ever touching the substrate—eliminating Z-axis movement and dramatically increasing throughput.
Precision Performance
  • Minimum dispense volume: 1nl per dot
  • Single-point diameter: As small as 0.15mm
  • Line width capability: Down to 0.20mm
  • Dot-to-dot consistency: Maintained within ±2%
Exceptional Material Versatility
The valve handles an impressive viscosity range of 0-2,000,000 cps, accommodating everything from low-viscosity solvents and primers to extremely thick pastes and adhesives. This versatility is unmatched by conventional dispensing valves.
Material Compatibility
Compatible with epoxy resin, UV adhesive, LED silicone, red adhesive, ink, primer, TUFFY adhesive, and many other materials. Non-contact operation eliminates substrate damage risk and enables dispensing on fragile components or uneven surfaces.
Technical Specifications
Model H-Y01
Valve Type Piezoelectric jet valve
Dispensing Method Non-contact jetting
Viscosity Range 0-2,000,000 cps
Minimum Dispense Volume 1nl per spot
Minimum Line Width 0.20mm
Single-Point Diameter 0.15mm
Consistency ±2% for glue dots
Z-Axis Movement Not required (non-contact)
Material Compatibility Epoxy resin, UV adhesive, LED silicone, red adhesive, ink, primer, TUFFY adhesive

Maintenance Guidelines

Maintenance Cycle: Check internal consumables every 90 working days
Cleaning Procedure: Flush with matching diluent after each use
