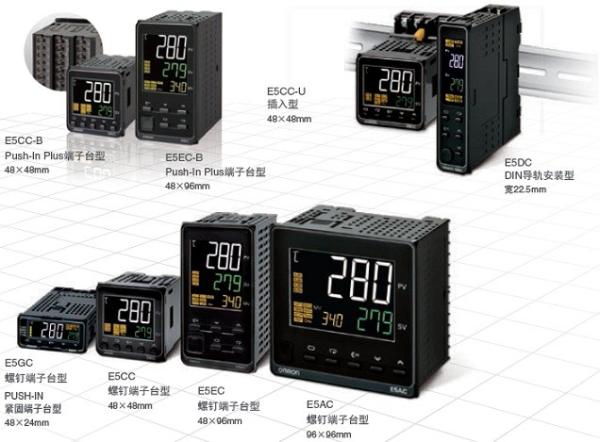

OMRON E5CC E5CC-B E5CC-U Digital Temperature Controller
OMRON E5CC E5CC-B E5CC-U Digital Temperature Controller
OMRON E5CC E5CC-B E5CC-U Digital Temperature Controller
OMRON E5CC E5CC-B E5CC-U Digital Temperature Controller
Specifications
Brand Name :
OMRON
Model Number :
E5CC/E5CC-B/E5CC-U
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
600 Sets per 1 Month
Delivery Time :
10 work days
Packaging Details :
Packed by international standard, anti-rusty treated and wrapped film packing.
Power supply voltage :
A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range :
85 to 110% of rated supply voltage
Power consumption :
5.9 VA max. at 100 to 240 VAC, and 3.2 VA max. at 24 VAC or 1.8 W max. at 24 VDC
Setting method :
Digital setting using front panel keys
Storage temperature :
−25 to 65°C (with no condensation or icing)
Installation environment :
Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)
Description

Digital Temperature Controller Diaper Machine Spare Parts OMRON E5CC/E5CC-B/E5CC-U

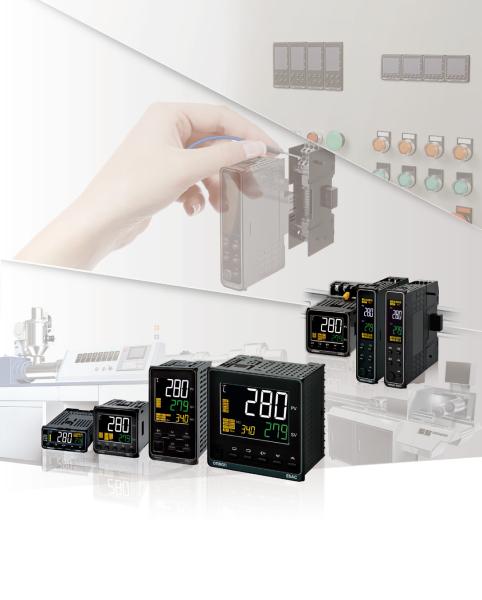

Greater downsizing and higher performance in control panels and other equipment

  • A wide range of lineup to handle various control panel/equipment sizes.
  • Advanced control performance to help increase equipment speed and yield.

Greater efficiency from designing toassembly and operations

  • Saves your work in each process from designing to operation of control panels and other equipment.

Innovating control panel and equipment usability

  • Wide viewing angle and high-contrast LCD for high visibility.
  • Reduces the workload of entering set values on-site.

Specifications Ratings

Power supply voltage A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range 85% to 110% of rated supply voltage
Power consumption Models with option selection of 000:5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at 24 VAC or
1.6 W max. at 24 VDC
All other models: 6.5 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W max. at 24 VDC
Sensor input Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V,or 0 to 50 mV (The 0 to 50 mV range applies to the
E5CC-U only for those manufactured in May 2014 or later.)
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
(Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
