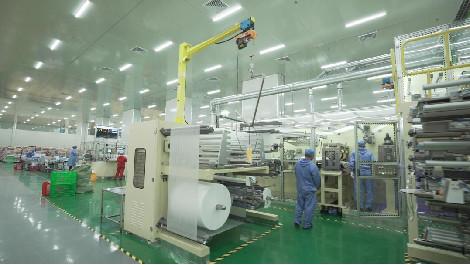

Full Automatic High Performance Adult Diaper Making Machine With Stacker

Features:

1. Inspecting system:

• Raw jointer auto checking & rejecting
• Raw broken alarm & stop line
• SAP lower position alarm
• Hook side tape lacking detecting, auto rejecting.
• Spandex broken alarm
• Clothlike, Frontal on-line mark position.

2. Unwind & splice:

• Raw splice at stable running & unwinding, manual or auto alternative.
• Splice speed can be setup by Interface.
• The diameter of material can be precisely adjusted while splice, save the raw.

3. Feeding control:

• Cellulose pulp feeding adopt inverter control, Interface setup the feed-inquantity.
• SAP spray is inverter control, continue working, interface setup the spray weight, lower position alarm.
• Elastic stretching rate is inverter control, interface setup.

4. Human-machine Interface:

• Interface install at machine middle position, English & Chinese language,Big-screen LED display.
• Raw materials lacking, jointer, splice, fans & vacuum pump jump-off, all display the real-time information.
• Auto rejecting & rejecting position can be setup
• Production speed(pcsmin), shift output, rejecting quantity, total capacity, are interface display.

5. Heating system:

• Rotary set temperature control by heating couple, & temp. unit.
• Heating rotary set adopt heating tube.
• Power track-in & signal output work by mercury rotary connector.
• Heating rotary set use pneumatic compress, auto lifting while line stop,manual control enabled.

6. Safety devices:

• Safety doors equipped
• Frontal & ear side E-stop & safety line.
• Speed-up & down, alarm device button, easy operation
• Safety plate install at die entrance.
• Glue applicators place on the second platform on the rear side

7. Rear side wire put into the groove, electric & electronic routes, independent switches.
8. Electronic voltage: 24V.
9. Spray & coat glue control, setup the rear upper platform.

• Pre-served hotmelt application position, spray & coat head keep 90 degree toward materials, hoses fix-up at rear side, perforated vertical through face board.
• Working with hotmelt units, auto glue spray & stop, manual control enabled.
• Supply 0-10V CD glue auto tracking singal.
• Lamp installed at hotmelt positions
• Over-bridges, head base & hotmelt adhesive are own prepared by thehotmelt applicator supplier.

Main parts supplier

Customer Distribution

At Present, Our Production Lines Are Used By Domestic High End Users, And Others Exported To South Asia, Southeast Asia, Middle East, South America, Africa And So On. Till Now, Total 120 Sets Of Our Machines Are Satisfied Using By Our Local And Overseas Customers. Now We Have Won Excellent Reputation In This Industry By Superb Professional Technology And Extremely High Level Of After-Sales Service.
