335KW Adult Diaper Making Machine
335KW Adult Diaper Making Machine
Specifications
Brand Name :
HAINA
Model Number :
HNJX-CK300
Place of Origin :
CHNA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
6 Sets per 1 Month
Delivery Time :
180 work days
Packaging Details :
Packed by international standard, anti-rusty treated and wrapped film packing.
Design Speed :
300PPM
Stable Speed :
250PPM
Product Size :
XL/L/M/S
Product Weight Tolerance :
±5%
Wastage :
≤4.0%(Excluding Glue, Splice, Raw Jointer Defectives）
Efficiency :
≥85%
Installation :
335KW（glue Machine & Air Compressor Not Included）
Power Supply :
380 /440V 、50/60Hz (3 Phases, 4 Lines, Ground-in)
Air Compressor :
0.6-0.8Mpa
Machine Sizes :
38m×8m×4.5m（Including Mill, Pulp & Stacker）
Description

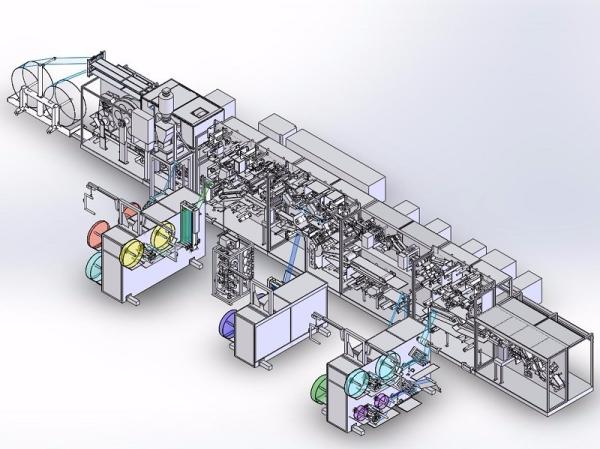

Dual drums Full Servo Control Adult Diaper Making Machine

335KW Adult Diaper Making Machine

Technical features

  • Compact design, easy operation&maintenance
  • Modular design, for future upgrading
  • Low consumption, high efficiency
  • Servo or frequency inverter transmission
  • Touch screen for man-machine conversation
  • Auto record and calculation of process data
  • Main raw material auto splicing at zero speed
  • Inverter or servo unwinding with tension control
  • Web guiding controller
  • Sensor quality control systems
  • Material broken and lost inspection,
  • Auto machine stop and defective products auto rejection
  • Easy size changing and manufacture
  • CE approval

335KW Adult Diaper Making Machine335KW Adult Diaper Making Machine

Basic process configuration:

  • High speed pulverizer(untreated pulp is allowed)
  • Fluff forming unitI
  • Fluff forming unitII
  • SAP dosing unitI
  • SAP dosing unitII
  • Raw material feeding units
  • Notch cutter Unit
  • Longitudinal folding unit
  • Final cutter unit
  • Transverse folding unit
  • Air application unit
  • Safety protection unit

Optional process configurations:

  • Aloe/perfume application unit
  • Gravimetric SAP dosing unit
  • Full servo auto stacker
  • Camera quality detection unit

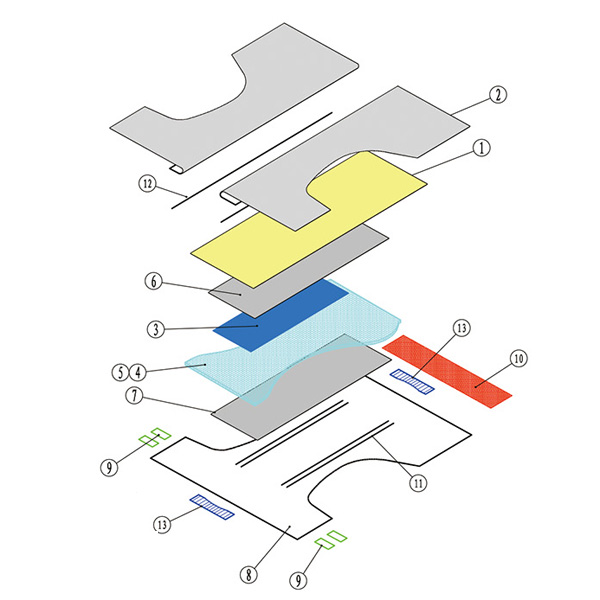

Raw material specifications

Item Number Raw material layer
1 Hydrophilic N.W.(for top sheet)
2 Hydrophobic N.W.(for standing cuff)
3 Acquisition&distribution layer N.W.
4 Fluff core pad
5 SAP(super absorbent polymer)
6 Upper tissue
7 Lower tissue
8 Back sheet PE
9 Fastening tab tapes
10 Frontal pad
11 Leg elastics
12 Leak elastics(for standing cuff)
13 Waist band
Options(for two fluff cores)
1 Fluff core padII
2 SAP applicatorII(super absorbent polymer)
Options(for clothlikes back sheet)
1 Back sheet(clothlikes)

See Machine Running Video on Youtube

https://youtu.be/TCew9Q-TpXI

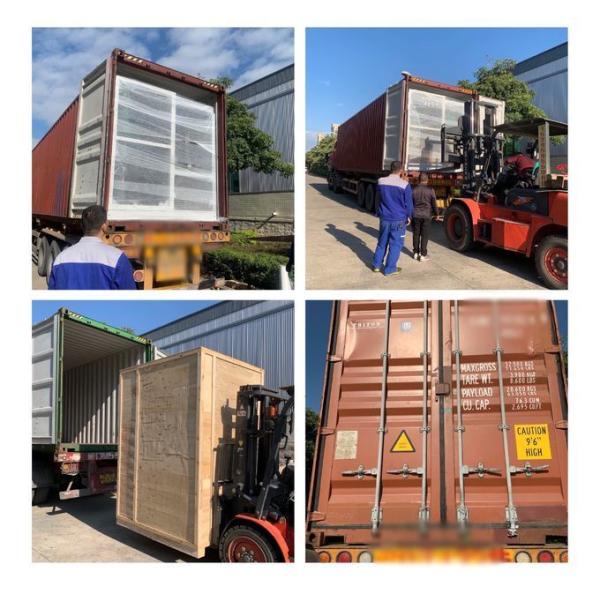

Packing Way
Anti-rusty Treated and Wrapped Film Packing
Some Parts Will Use Carton Box or Wood Case
335KW Adult Diaper Making Machine
