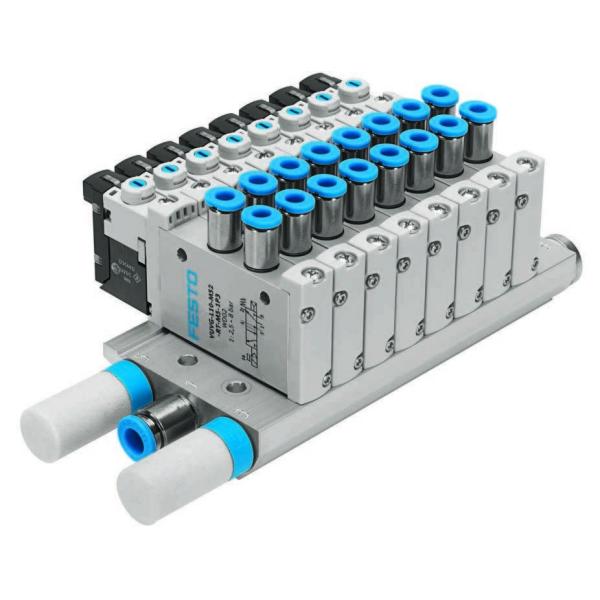

Universal 24VDC 3Hz Festo Solenoid Valve Diaper Machine Spare Parts
Universal 24VDC 3Hz Festo Solenoid Valve Diaper Machine Spare Parts
Specifications
Brand Name :
Festo
Model Number :
VUVG
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 Pcs per 1 Month
Delivery Time :
7 Work Days
Packaging Details :
Carton packing.
Key features :
2x 3/2-way, 3/2-way, 5/2-way, 5/3-way valves
Design :
Piston spool
Sealing principle :
Soft
Actuation type :
Electrical
Type of control :
Piloted
Pilot air supply :
External
Signal status indication :
LED
Product weight :
59g
Certification :
c UL us - Recognized (OL)/c CSA us (OL)/RCM compliance mark
Description

Compact Universal Solenoid valve Diaper Machine Spare Parts Festo

Key features

Innovative

• Festo-specific I-Port interface for bus nodes (CTEU)
• IO-Link mode for direct connection to a higher-order IO-Link master
• Festo-specific I-Port interface with interlock
• Variable multi-pin plug connection using Sub-D or ribbon cable
• Reversible piston spool valves, up to 24 valve positions
• Reduced power consumption
• Excellent price/performance ratio Flexible

• Choice of quick push-in connectors
• Multiple pressure zones possible
• Sub-D variant and fieldbus interface with degree of protection to IP67
• Internal or external pilot air with the same manifold rail possible through the use of blanking plugs
• Sub-base valves with working ports underneath for installation in control cabinets

Universal 24VDC 3Hz Festo Solenoid Valve Diaper Machine Spare Parts

Reliable

• Sturdy and durable metal components
– Valves
– Manifold rails
• Fast troubleshooting thanks to LED display
• Manual override:
choose from non-detenting,
detenting or covered

Easy to install

• Easy mounting thanks to captive screws and seal
• Connection technology easy to change
• Inscription label holder for labelling

Universal 24VDC 3Hz Festo Solenoid Valve Diaper Machine Spare PartsUniversal 24VDC 3Hz Festo Solenoid Valve Diaper Machine Spare Parts

Specification

Electrical connection Via E-box
Operating voltage 24 ±10%[V DC]
Power 1/0.4 (after 25 ms)W
Duty cycle 100%
Max. switching frequency 3Hz
Switching time on 8-12ms
Switching time off 20-38ms
Max. positive test pulse with 0 signal 1600us
Max. negative test pulse with 1 signal 3000us
Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
