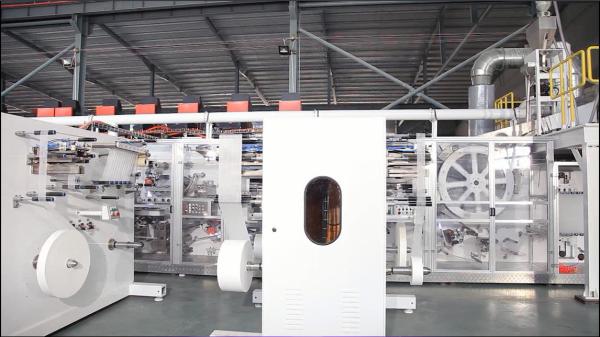

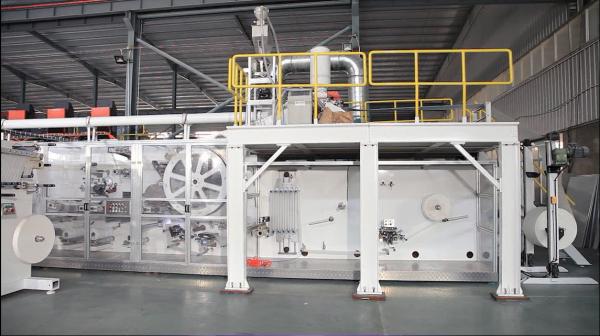

Siemens System 100T 300KW Baby Diaper Making Machine
Siemens System 100T 300KW Baby Diaper Making Machine
Siemens System 100T 300KW Baby Diaper Making Machine
Siemens System 100T 300KW Baby Diaper Making Machine
Siemens System 100T 300KW Baby Diaper Making Machine
Siemens System 100T 300KW Baby Diaper Making Machine
Specifications
Brand Name :
HAINA
Model Number :
HNJX-UNK600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
72 SETS/YEAR
Delivery Time :
150 Days
Packaging Details :
Film wrapped
Program System :
Servo Control
Design Speed :
600 PPM
Stable Production Speed :
500 PPM
Warranty :
One Year
Warranty Service :
Video Technical Support, Online Support, Spare parts, Field installation
Power :
300 KW For Reference
Power Source :
380V, 50HZ
Condition :
New
Description

Customized Full Automatic Siemens System / PLC Baby Diaper Machinery

Machine Full Servo Remote Maintenance Baby Diaper Machinery
Model HNJX-UNK600
Products Baby Diaper
Products Structure Upper & Lower tissue paper, Cotton core ( mix with SAP), ADL, PE film, frontal tape, topsheet hydrophilic nonwoven, leg cuff hydrophobic nonwoven, S cut side tape, waistband online.
Product Size NB, S, M, L, XL, XXL
Glue Machine Nordson / Chinese Brands Optional
Design speed 600 pcs/min
Production speed 500 pcs / min
Defective rate ≤3%
Efficiency ≥85%
Power Supply 3 Phase 380VAC, 50HZ (base on customer local power)
Total Weight 100 T customized
Power ~300KW
Required Air Compressor 2m³/min, 0.6-0.8Mpa
Dimension L~42m,W~8.0,H~4m
Machine direction From right to left or left to right (According to the customer requirements)
Color Customized

Diaper Structure:

1. Topsheet

2. Hook

3. Leakcuff

4. Elastic Waist

5. Backsheet

6. Frontal tap

Siemens System 100T 300KW Baby Diaper Making Machine

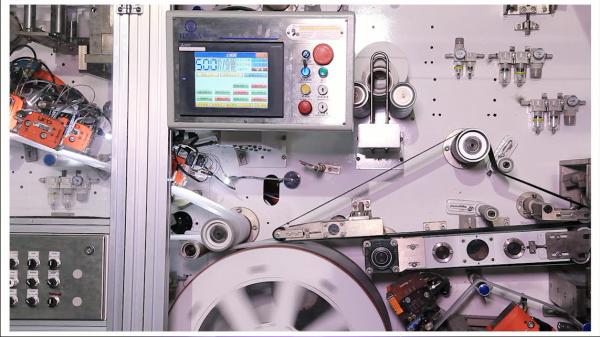

  • Program System

Servo driven, intelligent HMI touch screen man-machine interface

  • Tension System

Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice.

  • Driven System

Servo drive, digital size change, ensure run synchronously at full process.

  • Driven System

Servo drive, digital size change, ensure run synchronously at full process.

  • Safety System

Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.

  • Auto Pack System

Auto stacker and Packaging machine to be defined by customer need.

  • Web Guiding System

BST , Germany / FIFE, USA

  • Customized Function Available

Accessory equipment

(Need to purchase separately, you can ask Haina to purchase them for you or you purchase them by yourself)

1. Stain camera system

2. Air compressor

3. Dust collector device

4. Metal detecting instrument

5. Ink-jet printer

6. Perfume spray device

Siemens System 100T 300KW Baby Diaper Making Machine

Introduction

Jinjiang Haina Machinery Co., Ltd is a very professional equipment manufacturer in China. Specializing in baby-diapers, adult-diapers, sanitary napkins machinery. With the spirit of keeping innovating and improving, Haina has made more achievements and earned very good reputation in this field during these years. Haina was listed on Hongkong exchange stock market successfully on June this year.(Stock code HK1645).

About Haina Machinery:

1. Jan. 2011, Haina was founded in Jinjiang City, Fujian Province.
2. Nov. 2011, Haina started R&D for the class pull-up baby diaper line.
3. Jun. 2012, We finished production of class pull-up baby diaper line.
4. Mar. 2013, Finished production of our full surrounded baby diaper line.
5. Sept. 2013, Recognized as National level high-new technology enterprise.
6. Nov. 2013, We got CE certificate.
7. Dec. 2014, R&D and finished production of new type pull-up line.
8. Feb. 2014, U-type hourglass baby diaper productione line was delivered.
9. Dec. 2015, Adult pants production line was delivered.
10. Jul. 2016, Sold machines to Hengan Group-No.1 hygiene factory in China.
11. Apr. 2016, HANGZHOU HAINA (second branch) set up.
12. Jun. 2020, Haina is successful to list on HongKong Stock exchange market
Siemens System 100T 300KW Baby Diaper Making Machine

We can provide full aspects after-sales service :

• You can send technician to our factory to learn to operate the machine before 1 month from the machine delivery. We can offer food and accommodation.

• When machine arrives in your factory, we will send technicians to your factory to install, test the machine and train your workers.

• If you need one Chinese technician to work long time for you, we well know some good operators, who are well experienced, and are well recognized by other customers.

We will introduce them to you, you can select one.

Haina team is always here ready for serving you very well. Our customers are very also satisfied with our service, and built long-term cooperation relationship.

Siemens System 100T 300KW Baby Diaper Making Machine

Global Sales Network

Haina has many renowned suppliers from oversea and domestic market. We have established long-term partnership with them, also get customers' great satisfaction.

Siemens System 100T 300KW Baby Diaper Making Machine
