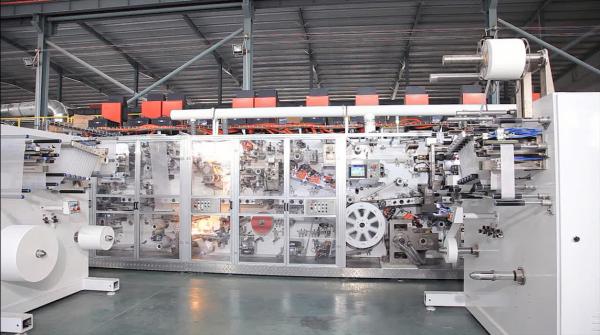

250KW 600Pcs/Min Elastic Band Waist Diaper Production Line
250KW 600Pcs/Min Elastic Band Waist Diaper Production Line
250KW 600Pcs/Min Elastic Band Waist Diaper Production Line
250KW 600Pcs/Min Elastic Band Waist Diaper Production Line
250KW 600Pcs/Min Elastic Band Waist Diaper Production Line
250KW 600Pcs/Min Elastic Band Waist Diaper Production Line
Specifications
Brand Name :
HAINA
Model Number :
HNJX-UNK600
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
72 SETS / YEAR
Delivery Time :
150 Days
Packaging Details :
Film wrapped
Program System :
Servo Control
PLC :
Mitsubishi / Siemens Optional
Warranty :
One Year
Warranty Service :
Video Technical Support, Online Support, Spare parts, Field installation
Power :
250 KW For Reference
Air Pressure :
0.6 - 0.8 Mpa
Product Structure :
Fluff Type
Condition :
New
Description

Full Automatic Elastic Band Waist I Shape Baby Diaper Machinery With Mitsubishi System

Machine Full Servo High Speed 700 pcs/min Baby Diaper Machinery I Shape
Model HNJX-UNK600
Products Baby Diaper
Products Structure Upper & Lower tissue paper, Cotton core ( mix with SAP), ADL, PE film, frontal tape, topsheet hydrophilic nonwoven, leg cuff hydrophobic nonwoven, S cut side tape, waistband online.
Product Size NB, S, M, L, XL, XXL
Glue Machine Nordson / Chinese Brands Optional
Design speed 600 pcs/min
Production speed 500 pcs / min
Defective rate ≤3%
Efficiency ≥85%
Power Supply 3 Phase 380VAC, 50HZ (base on customer local power)
Total Weight 100 T customized
Power ~300KW
Required Air Compressor 2m³/min, 0.6-0.8Mpa
Dimension L~42m,W~8.0,H~4m
Machine direction From right to left or left to right (According to the customer requirements)
Color Customized

Elastic Waist Baby Diaper Schematic View

250KW 600Pcs/Min Elastic Band Waist Diaper Production Line

Main Part Suppliers:

NAME BRAND BRAND(Can be Customized)

Servo motors & drivers,

Unwinding Inverters

Interface, control system

 MITSUBISHI / SIEMENS, Customized
Motors Teco motor, Taiwan
Web guiders BST / FIFE
Photo sensor SICK, Germany
Temp. unit OMRON, Japan
Lower electric part Schneider, France
Solid relay OMRON, Japan
Pneumatic parts(cylinders, values, air jointers) FESTO, Germany
Main Bearing NTN & NSK, Japan
Time belts Gates, USA
Convey belts European Brand

Haina has many renowned suppliers from oversea and domestic market. We have established long-term partnership with them, also get customers' great satisfaction.

250KW 600Pcs/Min Elastic Band Waist Diaper Production Line

Accessory equipment (Need to purchase separately):

1. Stain camera system

2. Air compressor

3. Dust collector device

4. Metal detecting instrument

5. Ink-jet printer

6. Perfume spray device

250KW 600Pcs/Min Elastic Band Waist Diaper Production Line

Common question:

Q1: How can we get the quotation?

A1: Normally, we will provide offer within 24h, plz contact with us if hurry (Tel & Whatsapp: 008615059553620, Email: becky@fjhaina.com).

Q2: What is the payment term?

A2: 30% deposit before production, 60% before shipment, 10% after installation at buyer's side.

Q3: Where is your factory, how can I visit you?

A3: Haina machinery is located in Jinjiang City, Fujian province, China. You can take the flight to Quanzhou airport, we will go to pick you to our factory.

Q4: What's your after-sale service?

A4: When the machine was shipped from our factory, we will apply visa for engineer at once. When the machine arrives at your factory, we will dispatch them at once.

Q5: Can you provide raw materials?

A5: Sure, we cooperate with many raw material suppliers, they are all reliable suppliers and able to provide very good quality materials.
