EQUIPMENT DETAILS FOR 5150-HD ALUMINUM FOIL METAL DETECTOR
EQUIPMENT DETAILS FOR 5150-HD ALUMINUM FOIL METAL DETECTOR
EQUIPMENT DETAILS FOR 5150-HD ALUMINUM FOIL METAL DETECTOR
EQUIPMENT DETAILS FOR 5150-HD ALUMINUM FOIL METAL DETECTOR
EQUIPMENT DETAILS FOR 5150-HD ALUMINUM FOIL METAL DETECTOR
EQUIPMENT DETAILS FOR 5150-HD ALUMINUM FOIL METAL DETECTOR
Specifications
Brand Name :
HAIDA
Model Number :
5150-HD
Certification :
CE,ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power :
Electronic
Range :
0 ~ 1000g
Test speed :
1 ~ 40mm/s, arbitrary settings
Dimensions :
500 x 400 x 600 mm
source :
220V, 50Hz
Printing system :
embedded thermal printer
Description

EQUIPMENT DETAILS OF 5149-HD METAL DETECTOR

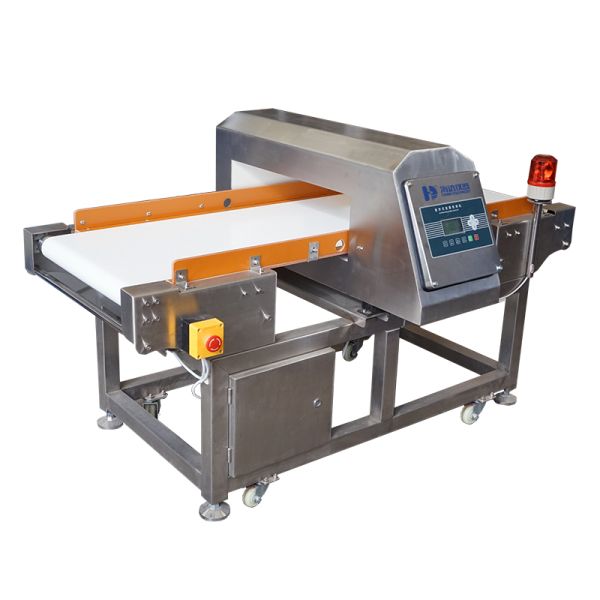

----Picture for reference

MACHINE PRODUCTION

Detecting all metal contaminants in packaged and non-packaged products, including ferrous metal (Fe), non-ferrous metals(Copper, Aluminum etc.) and stainless steel.

STANDARD FEATURES:

1. It adopts abroad more balanced principle of the metal detector and has a more stable and reliable, the performance is better.

2. Phase regulation technology, it can adjust product and effectively restrain the product effect.

3. Combining the DSP and MCU to detect signal data sampling and data processing, improve the detection effect.

4. It has the good man-machine conversation interface.

5. To detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials, with self-learning function, material scope of detection.

6. It has memory function and also can store 20 kinds of products inspection parameters.

TECHNICAL PARAMETERS AND SPECIFICATIONS:

Model

5149-HD

Alarm

Buzzer & Lamp

Detect Height

100mm

Detect Width

500mm

Sensitivity

(Channel Center)

Fe Φ Diameter

≥1mm

NFe Φ Diameter

≥1.5 mm

SUS304 Diameter

≥2.0mm

Belt speed

28m/min

Weight(Approx.)

210 kg

Power

220V 50HZ 60W

CONFIGURATION LIST:

High accuracy detector

1 set

Drive belt

1 Pc

Electronic box

1 set

Drive motor

1 set

LCD controller

1 set

Standard test piece

Fe 1mm, NFe 1.5mm, SUS304 2mm

Emergency stop switch

1 Pc

Machine Rack

304# Stainless steel

Power line

1 Pc

Operation manual(English)

1 Copy

Factory calibration

1 Copy
