High Precision Textile Testing Equipment for Ferromagnetic Metal Detection in Raw Textile Materials and Finished Products to Support Control
High Precision Textile Testing Equipment for Ferromagnetic Metal Detection in Raw Textile Materials and Finished Products to Support Control
High Precision Textile Testing Equipment for Ferromagnetic Metal Detection in Raw Textile Materials and Finished Products to Support Control
High Precision Textile Testing Equipment for Ferromagnetic Metal Detection in Raw Textile Materials and Finished Products to Support Control
High Precision Textile Testing Equipment for Ferromagnetic Metal Detection in Raw Textile Materials and Finished Products to Support Control
High Precision Textile Testing Equipment for Ferromagnetic Metal Detection in Raw Textile Materials and Finished Products to Support Control
Specifications
Brand Name :
HAIDA
Model Number :
5147-HD
Certification :
CE,ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power :
Electronic
Range :
0 ~ 1000g
Test speed :
1 ~ 40mm/s, arbitrary settings
Dimensions :
500 x 400 x 600 mm
source :
220V, 50Hz
Printing system :
embedded thermal printer
Description
PRODUCTS DESCRIPTION

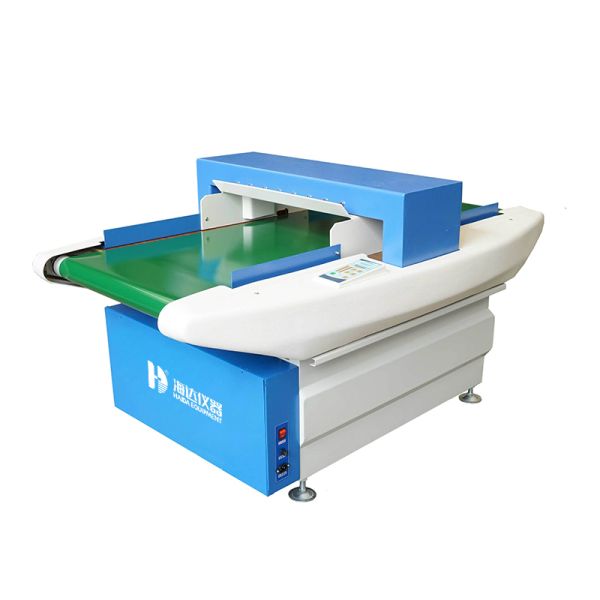

Needle detection machine is mainly used for toys, clothing, zip, leather, knitting and other industries that need to detect ferromagnetic metal impurities detection, for the detection of interspersed or lost in the raw materials or products, such as broken needles, broken wire and other ferromagnetic non-ferrous metals.

STANDARD FEATURES
Specifications 5147-HD
Detecting method Magnetic induction
Belt speed appr. 26m/min
Detecting adjustment Stepless adjustment
Detecting width 600mm
Detecting height 100mm 120mm 150mm 200mm
Detecting ability ≥0.8mm iron ball ≥1.0mm iron ball ≥1.2mm iron ball ≥1.5mm iron ball
Alarm method Buzzer
Power Supply AC 220V 50HZ
Rated output 60W
Instrument Dimension(L*W*H) 1650*1050*900mm
Net Weight 220kg
