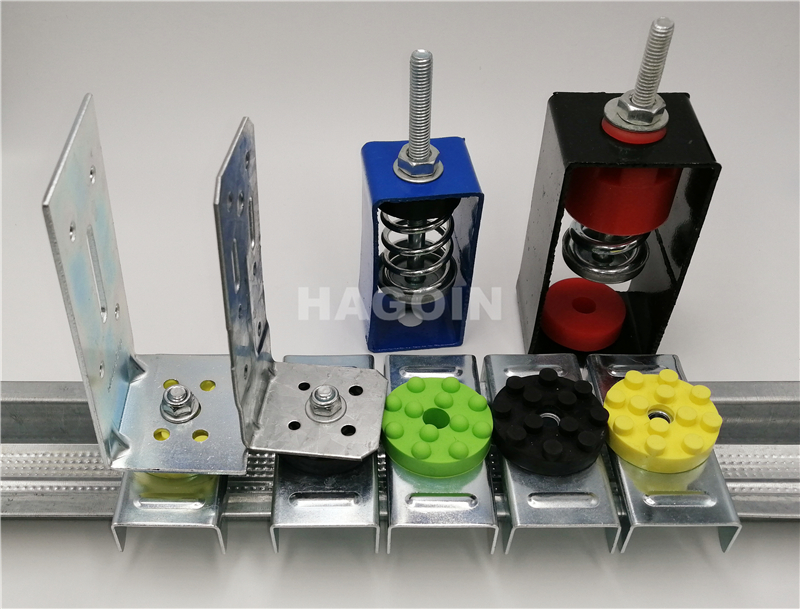

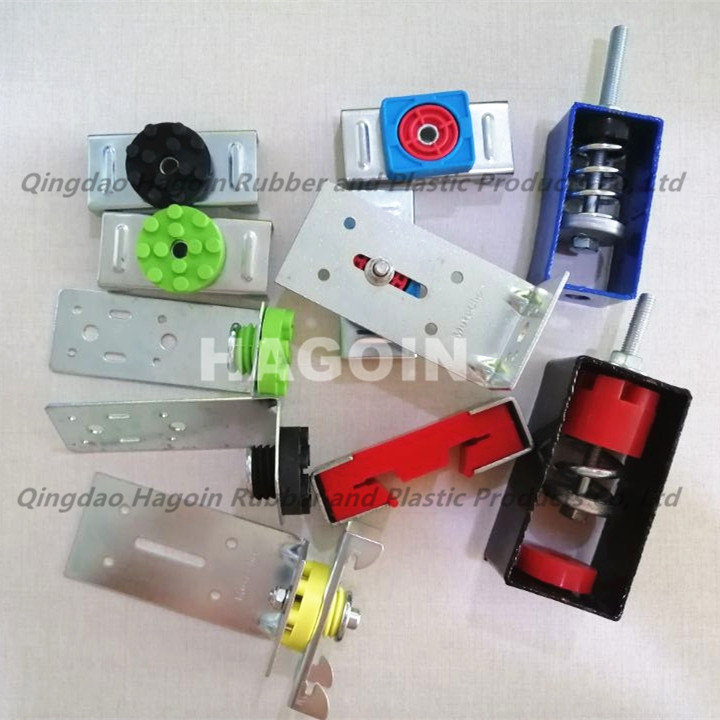

RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
Specifications
Model Number :
RSIC-1 and RSIC-dc04
Design Style :
Traditional
Hardness :
40-50 Shore A
Product name :
Resilient Sound Isolation Clip
Model :
RSIC-DC04
Feature :
RESILIENT, Resilient
Project Solution Capability :
graphic design, 3D model design
Color :

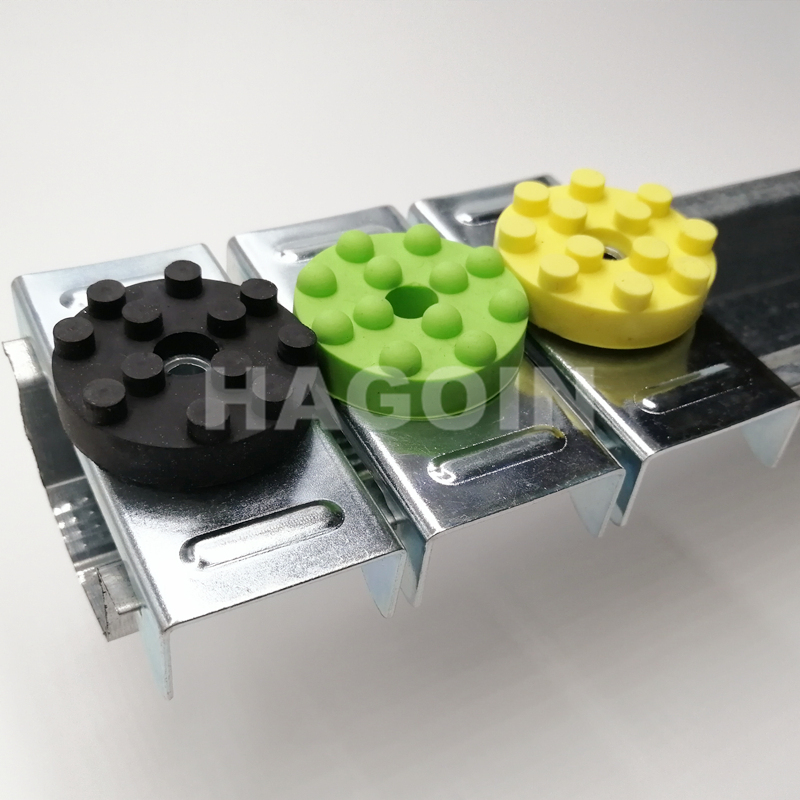

Black, Grenn, Red, Custoized
Payment Terms :
T/T
Application :
Soundproofing, Celling, Floor, Wall, Drywall, Wood Keel, Steel Framed, Joist
Smaple :
Free
MOQ :
100/ 150 pcs, one carton
Packaging Details :
cartons and pallet
MOQ :
1000
Warranty :
3 Years
Supply Ability :
1000 pieces per day
Place of Origin :
Shandong, China
After-sale Service :
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return and Replacement
Brand Name :
HAGOIN
Material :
NR OR SILICONE+ STEEL, Rubber + steel
Certificate :
CE,ISO9001,LFGB, ROHS
Delivery Time :
20 days
Description
RSIC-1, DC04 Rubber Resilient Sound Isolation Clips, Acoustic Hangers, Quiet Mute Clip, Resilient Channel Clips
Product Description

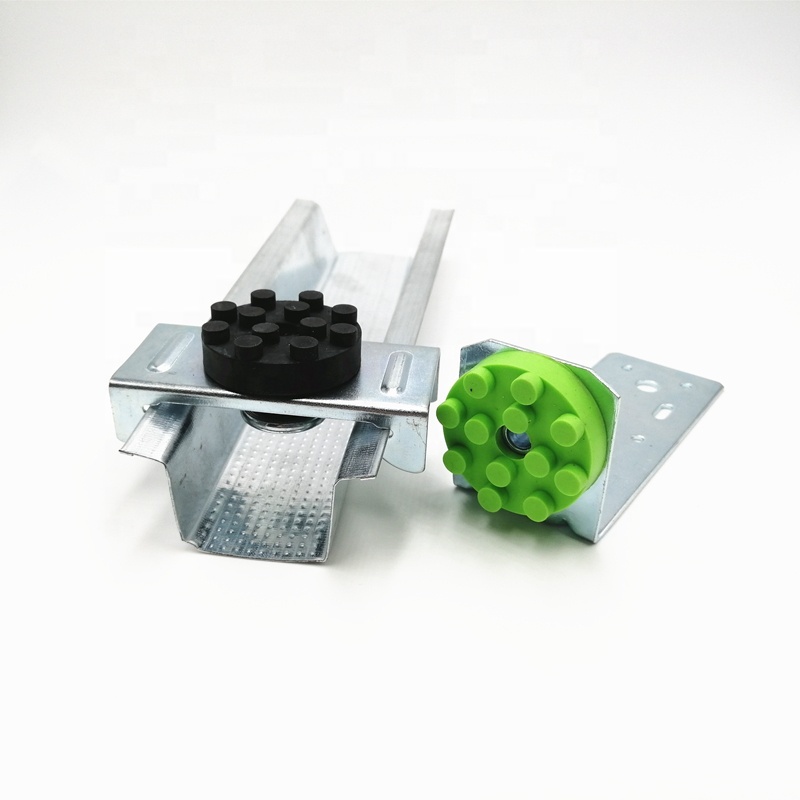

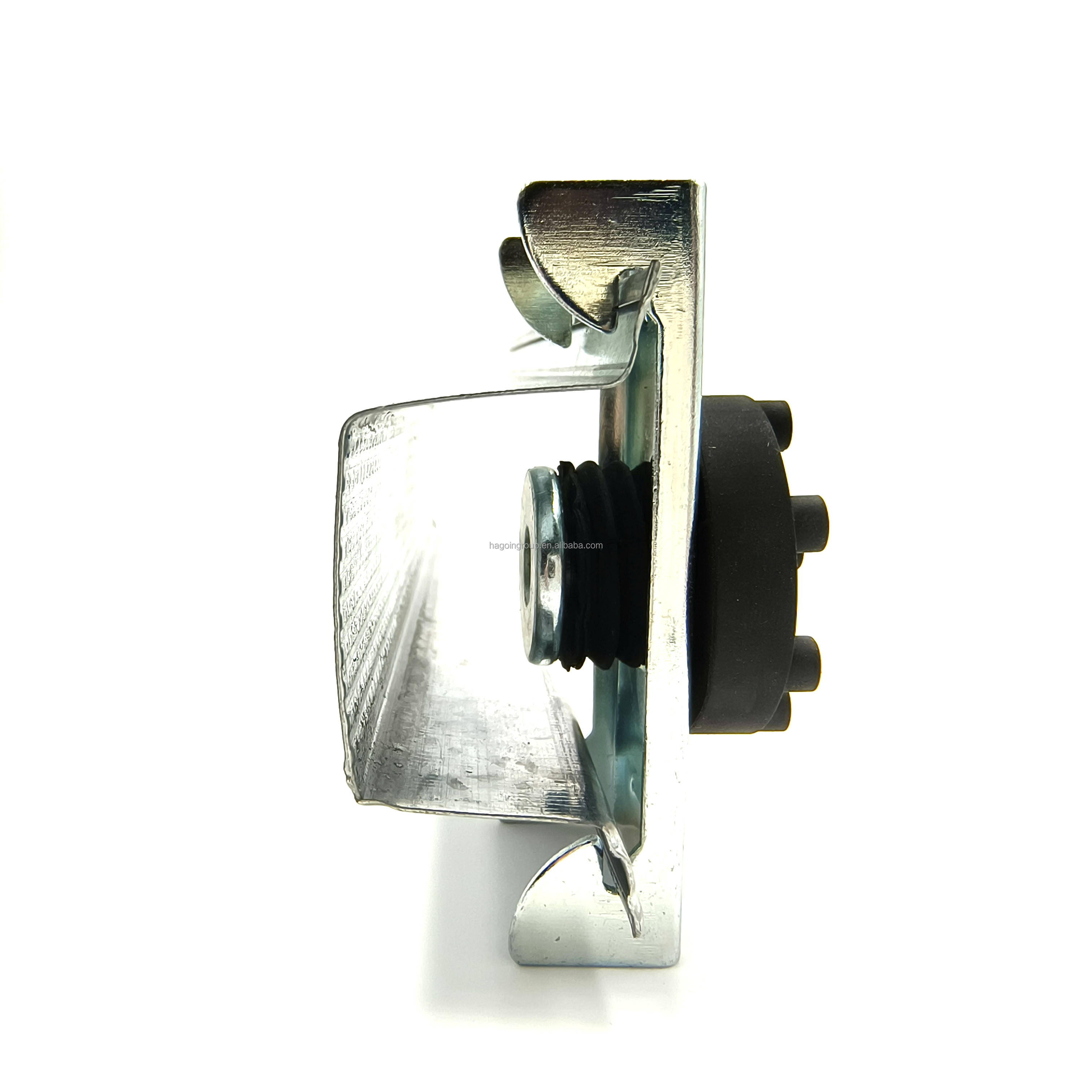

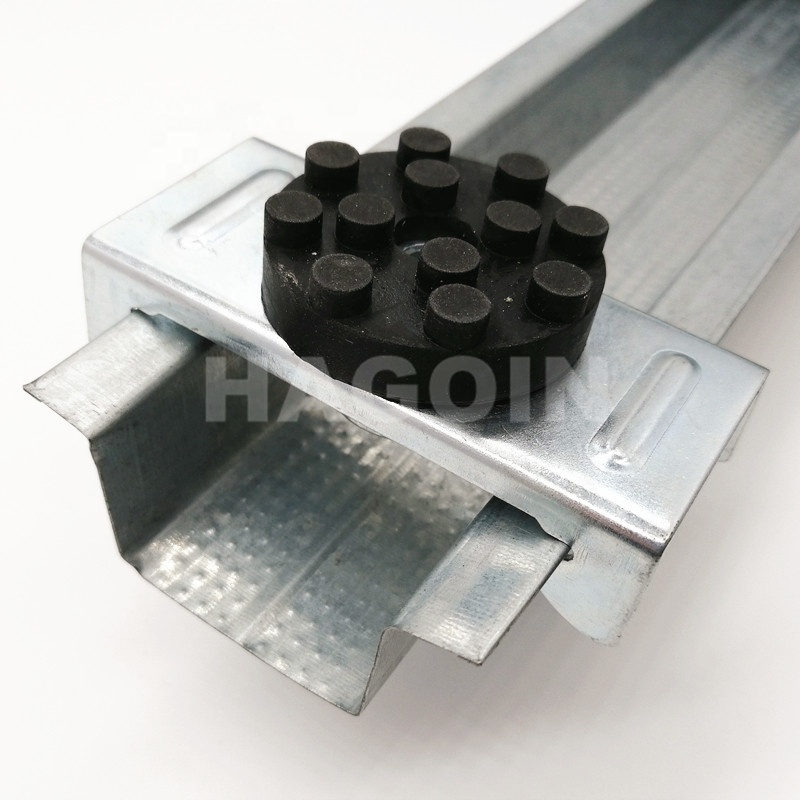

Resilient Sound Isolation Clips are designed to allow a decoupling separation between the walls and ceiling from the underlying framing studs and joists. When utilizing sound isolation clips for drywall installation, the drywall furring channels (“hat” channels) are attached to the clips and the clips are then fastened to the studs or joists, following the supplied instructions. Once installed, the drywall (or other wall material) is isolated from the framing. This significantly lowers the ability for sound, especially low frequency sound, from transmitting into the room where they're installed.

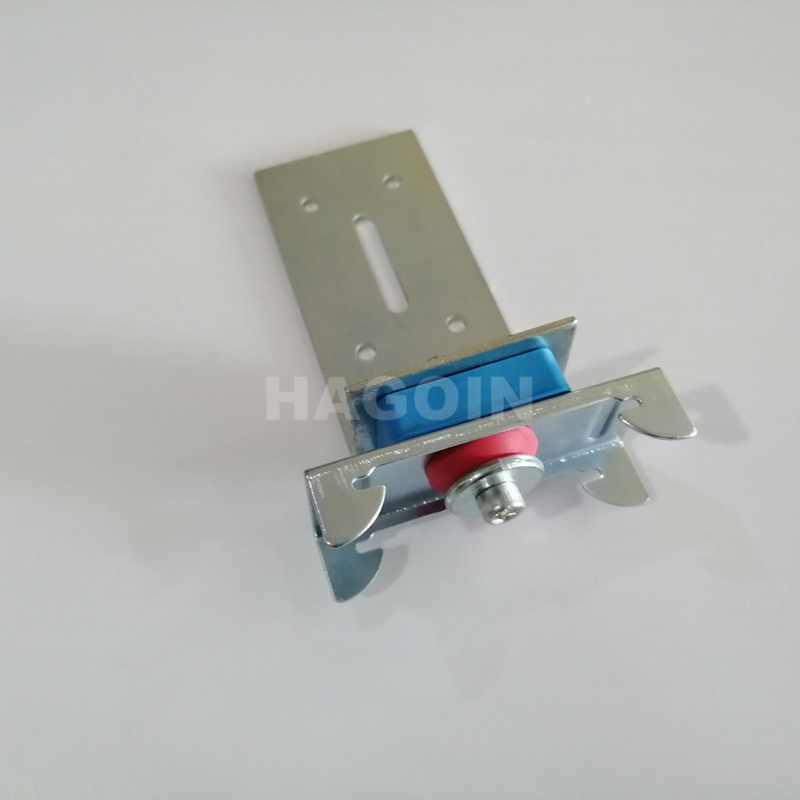

The DC04 series is a universal and versatile product line. The most common use is decoupling wall framing and ceiling systems. The DC04 can be used in new construction or retrofit. The DC04 should be used when items need to be acoustically decoupled for noise and vibration isolation.

RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger

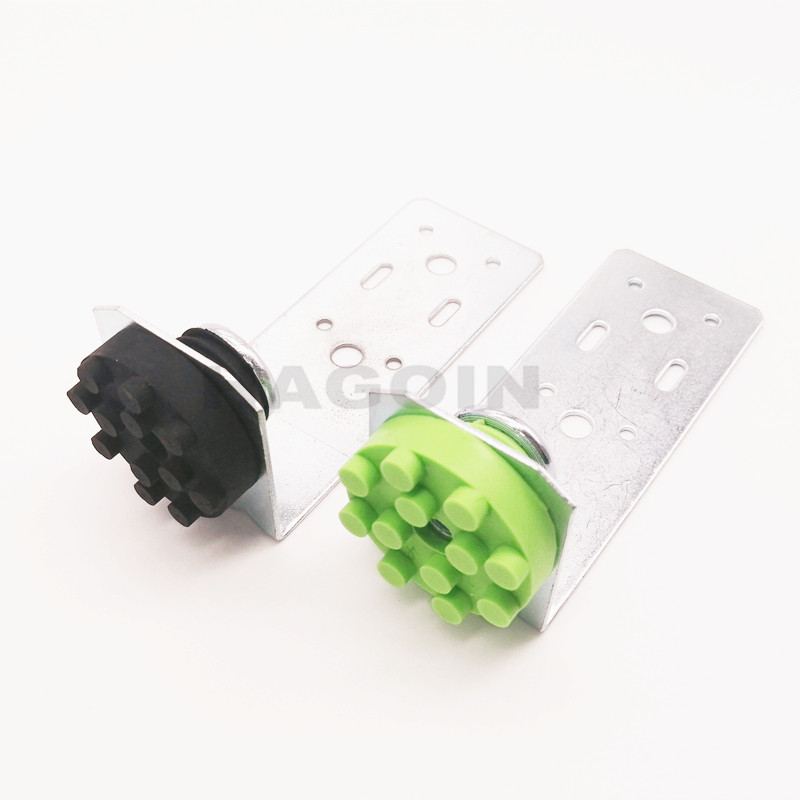

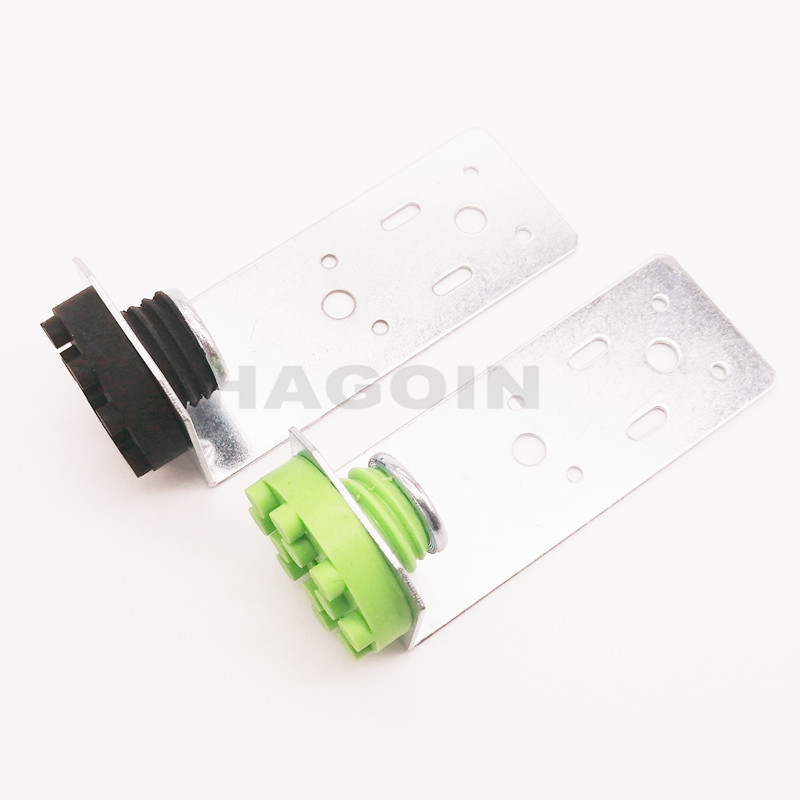

RSIC-1 specifications:
Acoustical design load36 Lbs
Total deflection3 mm
Double deflectionYes (1.5mm)
Made with Recycled contentYes
Low VOC treatedYes
AdjustableNo
Cavity Min1-5/8’’
Cavity Max1-5/8’’
Adjustable limitN/A
Use on ceilingYes
Use on wallsYes
New ConstructionYes
Retro FitYes
Made in ChinaYes
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
Sound Isolation clip specifications:
Acoustical design load36 Lbs
Total deflection3 mm
Double deflectionYes (1.5mm)
Made with Recycled contentYes
AdjustableNo
Cavity Min1-1/2’’
Cavity Max4-1/2’'
Adjustable limit4''
Use on ceilingYes
Use on wallsYes
New ConstructionYes
Retro FitYes
Made in ChinaYes
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger

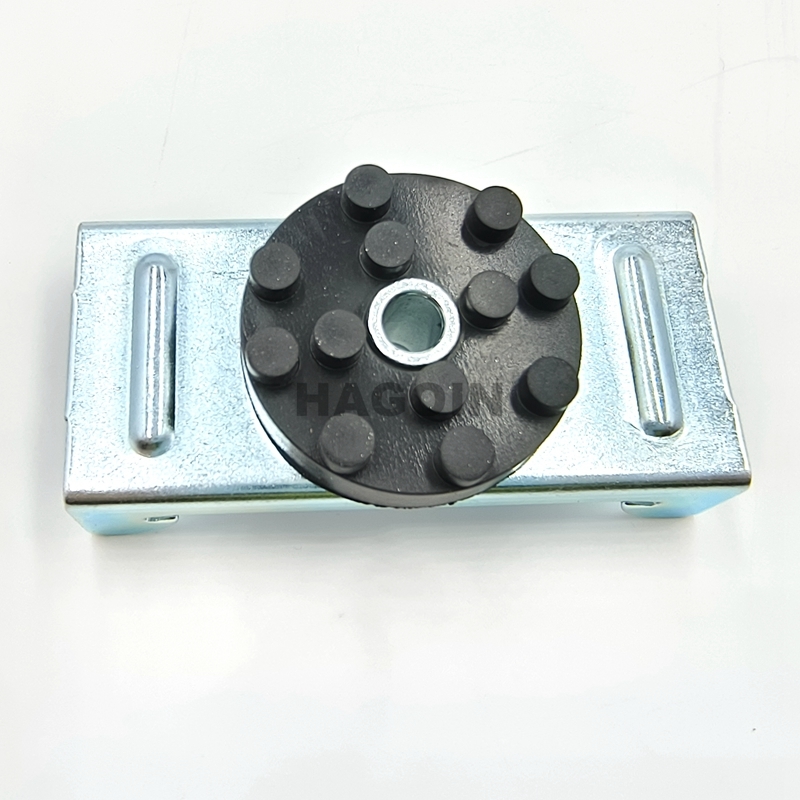

Size Information

RSIC-1 clip 3’’ tall

RSIC-1 clip 1-1/4’’ deep

RSIC-1 and drywall furring channel 1-5/8’’ deep

Application
  • Home Theaters
  • Mechanical rooms Libraries
  • Study Gyms
  • Golf Rooms
  • Master Suites
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
Size Information

Height: 112mm

Width: 45*40mm

Depth: 26mm

Maximum Spacing: 48 inches on center Maximum Acoustical Design Load: 36 lbs

Application
  • Home Theaters
  • Mechanical rooms Libraries
  • Study Gyms
  • Golf Rooms
  • Master Suites
Packing&Shipping
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
Certifications
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
Company Introduction

Hagoin(Hæ Gu′i: N) group was originally found in the year 1998, has been devoted to produce high quality rubber parts, plastic parts and metal parts for both domestic and oversea customers. Our products are widely used in automotive, industrial, Agriculture, aerospace, building, electronic, mobile phone, daily life etc fields. Our products get CE, RoHS, REACH, LFGB certified, meet great demand on both USA and European markets. We have 46 employees, including 2 master′s degrees, 7 bachelordegrees and 37 experienced workers. We have flat vulcanized machines, injection machines, material mixer, punching machines, bending machines, laser, CNC center etc 35 sets. We have advanced test equipment, including the UV aging tester, tensile strength tester, tear strength tester, hardness reader, high and low temperature tester, ensure the quality meet customers′requirements.

We also meet ISO9001 and TS16949 system. Most of our raw material are imported from USA, Germany, Japan, Thailand and Russia.

RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
RSIC-1 Acoustic Mf Ceiling Hangers Rubber Resilient Sound Isolation Acoustic Pipe Hanger
FAQ

1. who are we? We are based in Shandong, China, start from 2014,sell to North America(00.00%),Oceania(00.00%),South America(00.00%),Eastern Europe(00.00%),Central America(00.00%),Southern Europe(00.00%),Domestic Market(00.00%),Africa(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),Mid East(00.00%),Northern Europe(00.00%),South Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us? Rubber Parts,Plastic Parts,Steel Parts

4. why should you buy from us not from other suppliers? 1) Factory 12 years production experience 2) OEM/ODM production welcomed. 3) Value friendship between you and us belong all things. 4) Care what you need, fullfill your demand is our responsibility. 5) Focus on qualified products and satisfied service.

5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash; Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian
