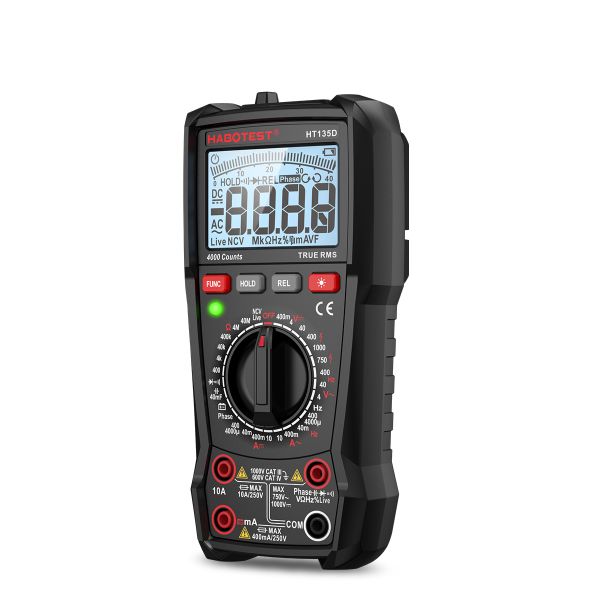

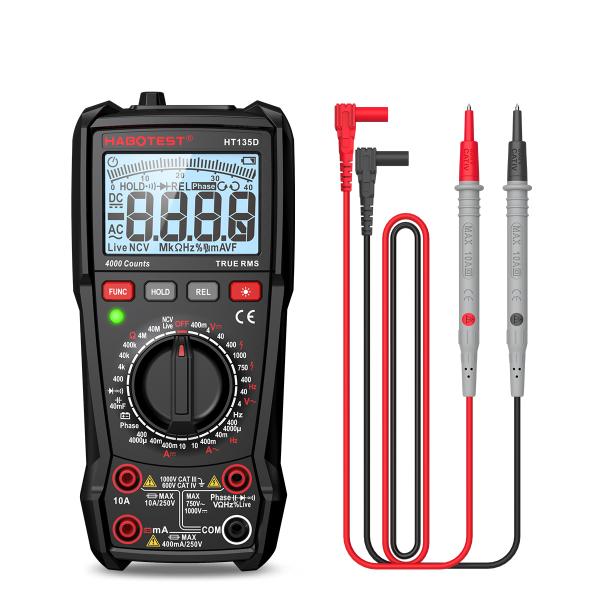

Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Habotest HT135D 4000 Counts True RMS Digital Multimeter with Data Logging and Low Battery Indicator for Industrial Use
Specifications
Model Number :
HT135D
Brand Name :
Habotest
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$8.79-9.86
Measuring Current Range :
10A
Measuring Voltage Range :
AC voltage:750V/DC voltage:1000V
Dimensions :
179*83.5*53mm
Material :
ABS
Max AC Current :
10A
Max AC Voltage :
750V
Max DC Current :
10A
Max DC Voltage :
1000V
Measuring Capacitance Range :
40.00mF
Measuring Resistance Range :
40.00MΩ
Operating Temperature :
-20°C~1000°C (-4°F~1832°F)
Frequency Range :
10MHZ
Counts :
4000 Counts
Weight :
260g
Power Supply :
3 X 1.5V AAA batteries
Description
Products Description
Habotest HT135D
4000 counts digital multimeter professional measurement ac dc voltage and current true rms multimeter
Function
Range
Accuracy
HT135A
HT135D
DC Voltage
400.0mv/4.000/40.00/400.0/1000V
±(0.5%+3)
±(0.5%+3)
AC Voltage
4.000/40.00/400.0/750V
±(1.0%+3)
±(1.0%+3)
DC Current
400.0uA/4000uA /40.00mA/400.0mA/10A
±(1.2%+3)
±(1.2%+3)
AC Current
400.0uA/4000uA /40.00mA/400.0mA/10A
±(1.5%+3)
±(1.5%+3)
Resistance
400.0Ω/4.000KΩ/40.00KΩ/400.0KΩ/
4.000MΩ/40.00MΩ
±(1.0%+5)
±(1.0%+5)
Capacitance
4.000nF/40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF/40.00mF
±(4.0%+5)
±(4.0%+5)
Frequency
4.000HZ/40.00HZ/400.0HZ/4.000KHZ/
40.00KHZ/400.0KHZ/10MHZ
±(1.0%+5)
±(1.0%+5)
Temperature
-20°C~1000°C (-4°F~1832°F)
±(1.0%+3)
Counts
4000 Counts
4000 Counts
Auto/Manual range
Auto
Manual
Live test
√
√
NCV test
√
√
Battery voltage test
√
Diode test
√
√
Continuity
√
√
Three-phase sequence detection
√
√
True RMS
√
√
Low battery indication
√
√
Auto power off
√
√
backlight
√
√
Flashlight
√
Power
3 X 1.5V AAA batteries
Weight
Approx.260g
Size
179x83.5x53mm
QTY
40pcs
Safety Rating
EN61010-1,-2-030 EN61010--2-033
EN61326-1 CAT III 1000V,
CAT IV 600V
Customer Reviews
Company Profile

Dongguan Habotest Instrument Technology Co.,Ltd

Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.
We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other detecting insturments for the worldwide customers to meet the growing global market demend, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.
Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patents each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.
For providing qualified products and superior serivice to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.
Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.
Now our Daily Production is over 10,000 pcs, We are one of the pioneer domestic enterprises who sucessfully in Research,
Development and production.
Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
"Talents Oriented, Technology Leading, Quality Assurance, Global Commitment" is our tenet. With much devotion, Optimum Testers are ready to fully understand clients' requirements and work out full solutions for our valuable clients. We are aiming to build a long-lasting and win-win partnership with our worldwide customers.
Certifications
Exhibition
SALES AND SERVICE NETWORK
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2015, sell to Domestic Market(20.00%), North America(20.00%),Western
Europe(30.00%) There are total about 300 people in our company.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Digital Multimeters, Digital Clamp Meters, Industrial Infrared Thermometers, Laser Distance Meters, AC Voltage Detectors,
Socket Tester, Digital Anemometer, Digital Sound Level Meter, Digital Luxmeter, Combustible Gas Indicator, Air Quality Tester, etc.

4. Why should you buy from us not from other suppliers?
Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patent each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency:USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken:English, Chinese, Spanish, German, Russian, Italian
