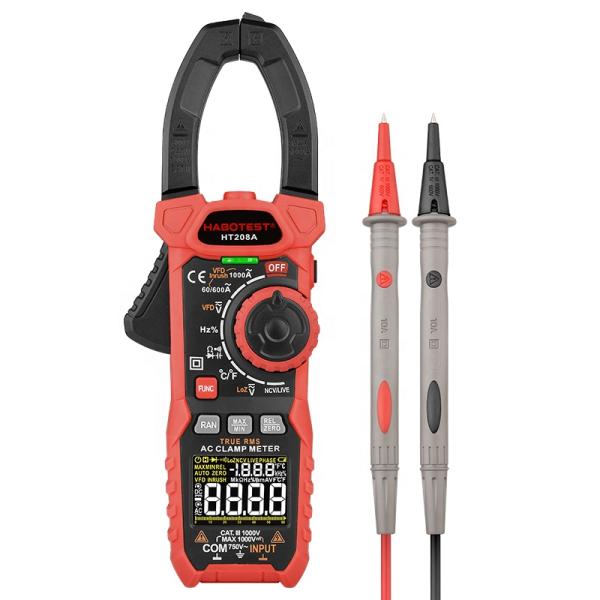

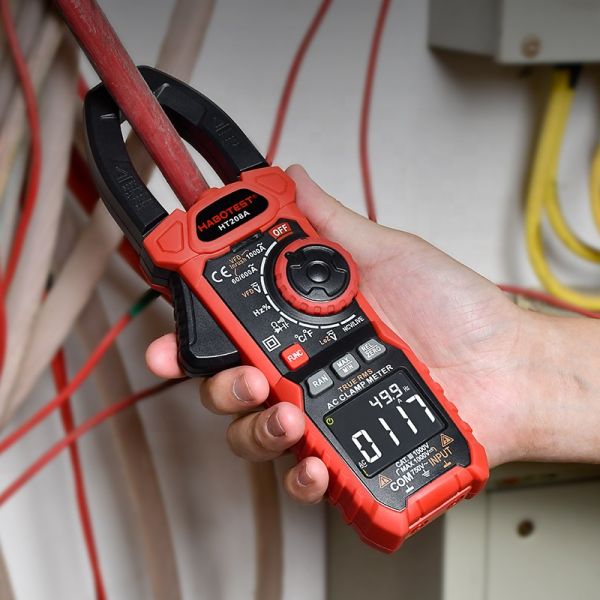

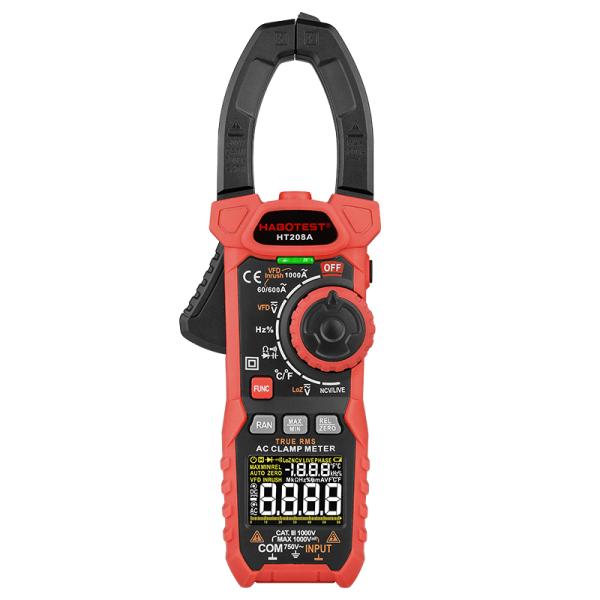

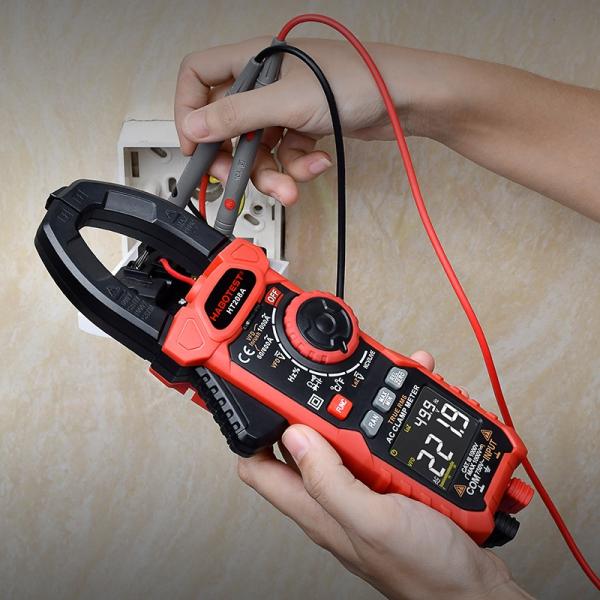

1000V Digital Multimeter Clamp Type 1000 Amp with Flashlight
1000V Digital Multimeter Clamp Type 1000 Amp with Flashlight
Specifications
Brand Name :
Habotest
Model Number :
HT208A
Certification :
CE, Rohs , EMC
Place of Origin :
Guangdong, China
MOQ :
1-29 Pieces
Price :
$28.00
Display Type :
Digital Only
Measuring Current Range :
0 ~ 1000A AC
Measuring Voltage Range :
750V ( AC) / 1000V (DC)
Measuring Resistance Range :
600/6K/60K/600K/6M/60M ohms
Measuring Capacitance Range :
10nF/100nF/1K/10K/100K/1M/1OM Hz
Measuring Inductance Range :
/
Operating Temperature :
0~40
Dimensions :
240*85*47MM
Weight :
380g
Product name :
Digital Clamp Meter 1000v 1000a HT208A
DC Voltage :
600mV/6V/60V/600V/1000V
AC Voltage :
600mV/6V/60V/600V/750V
AC Current (A) :
60A/600A/1000A
Resistance :
600/6k /60k /600k /6M /60M OHMS
Capacitance :
10nF/100nF/1K/10K/100K/1mF/10mF/100mF
Duty :
1%-99%
TEMPERATURE :
40C-1000C/ 0F-1832F
True RMS :
YES
INRUSH :
YES
Single package size  :
30X20X10 cm
Single gross weight :
0.600 kg
Package Type :
50pcs per carton, paper carton
Description

New Habotest HT208A 1000V 1000A 6000Counts Manual Autorange AC Digital Clamp Meter with Flashlight NCV and VA LCD Display

Clamp meters use the principle of magnetic induction to provide a non-contact method of measuring alternating current. As with any conductor, passing an electric current creates a magnetic field. The Hall Effect sensor detects this magnetic field due to the low voltage developed across the sensor.

It's also important to remember that clamp meters only work when a single wire is passed through the pliers.

A clamp meter has multiple parts. Most modern instruments will have:

Jaw - Identify the magnetic field generated by an electric current
Jaw Trigger - used to open and close the jaws
Power switch - button used to turn the clamp on and off
Backlit button – illuminates the LCD when pressed, allowing the display to be read in the dark
Hold Button - Holds the displayed value when pressed
Negative/Ground Input Terminal – The negative/ground jack of the gauge cable connects to this cover
Positive Input Terminal - The positive jack of the gauge cable connects to this cover
LCD display – Display panel for displaying measurement results
Functional rotary switch - enables user to select different measurement modes

Product Description

6000Counts

DC Votlage:600mV/6V/60V/600V/1000V

AC Voltage:600mV/6V/60V/600V/750V

AC Current:60A/600A/1000A

Resistance:600/6k /60k /600k /6M /60M OHMS

Capacintance:10nF/100nF/1K/10K/100K/1mF/10mF/100mF

Frequency:10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz

Duty:1%-99%

NCV

DCA Zero

VFD

Inrush

TRMS

REL

LowZ

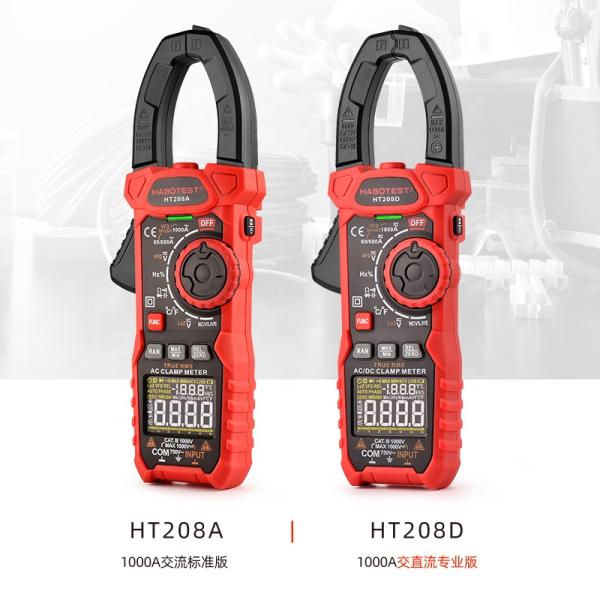

Specification HT208A HT208D Accuracy
DC Voltage 600mV/6V/60V/600V/1000V 600mV/6V/60V/600V/1000V (0.5%+3)
AC Voltage 600mV/6V/60V/600V/750V 600mV/6V/60V/600V/750V (0.8%+3)
AC Current 60A/600A/1000A 60A/600A/1000A (2.5%+5)
DC Current No 60A/600A/1000A (2.5%+3)
Resistance

600/6k /60k /600k /6M /60M ohms

 600/6k /60k /600k /6M /60M ohms (0.8%+3)
Capacitance 10nF/100nF/1K/10K/100K/1mF/10mF/100mF 10nF/100nF/1K/10K/100K/1mF/10mF/100mF (3.0%+3)
Frequency 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz (0.5%+5)
Duty 1%-99% 1%-99% (1.0%+2)
Temperature 40C-1000C/ 0F-1832F 40C-1000C/ 0F-1832F (1.0%+2)
Counts 6000 Counts 6000 Counts
Auto/Maual Range Yes Yes
Continuity Yes Yes
Diode Yes Yes
Data hold Yes Yes
NCV Yes Yes
Back light Yes Yes
Flashlight Yes Yes
DCA ZERO Yes Yes
Low battery indication Yes YES
Auto Power off Yes YES
True RMS Yes Yes
INRUSH Yes Yes
VFD Yes Yes
MAX/MIN Yes Yes
REL Yes Yes
LowZ Yes Yes
VA-LCD Yes Yes
Power 3*AAA(1.5V)Batteries 3*AAA(1.5V)Batteries
Weight Approx.380g Approx.380g
Size 240mm*85mm*47mm 240mm*85mm*47mm
Jaw Size dia 35mm*60mm dia 35mm*60mm
Safety Rating EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CAT IV 600V EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CAT IV 600V
