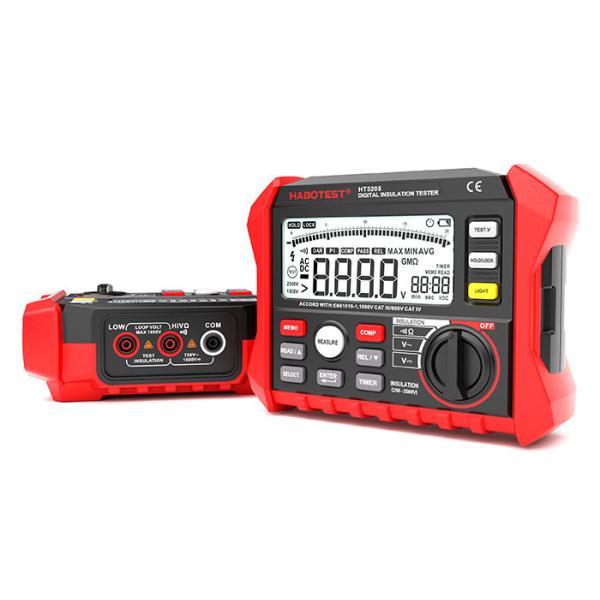

HT5205 2500V Digital Insulation Tester , Megger Insulation Tester With Multimeter / Analog
HT5205 2500V Digital Insulation Tester , Megger Insulation Tester With Multimeter / Analog
HT5205 2500V Digital Insulation Tester , Megger Insulation Tester With Multimeter / Analog
HT5205 2500V Digital Insulation Tester , Megger Insulation Tester With Multimeter / Analog
HT5205 2500V Digital Insulation Tester , Megger Insulation Tester With Multimeter / Analog
HT5205 2500V Digital Insulation Tester , Megger Insulation Tester With Multimeter / Analog
Specifications
Brand Name :
HABOTEST
Model Number :
HT5205
Certification :
CE,ROHS,EMC etc.
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs/month
Packaging Details :
Manual, Accessaries, Individual gift box, 20pcs /cartoon
Color :
Black with red
Material :
ABS+PC
Features :
DCV and ACV test; Continuity test;Digital analog display;lock function for insulation test etc.
Size :
180*140*65mm
Weight :
950g
Power :
6*LR14 Batterries
Description

HT5203 Digital 2500V Insulation Resistance Tester megger meter with Multimeter and Analog

Product Features:

Test the insulation resistance with 250V-2500V.

Automatic calculate PI (polarization index) and (dielectric absorption ratio).

With backlight display and auto power off.

Press Hold button to freeze the displayed value. Press again to release the display.

DC and AC voltage test, continuity test.


1. Design according to the IEC61010-1 CAT.III1000V CAT.IV 600V
2. Auto Calculate PI and DAR
3. Store /Load Function
4. Compare function
5. Auto discharge for capacitive load
6. Timer Function for insulation test
7. Lock function for insulation test
8. Digital and analog display

Specifications
Technical Parameter Output Voltage Measuring Range
Insulation Test 250V (0 %~+20%) 0.01MΩ~250MΩ ± (3%+5)
500V (0%~+20%) 0.01MΩ~500MΩ ± (3%+5)
1000V (0%~+20%) 0.01MΩ~1000MΩ ± (3%+5)
2500V (0%~+20%) 0.1MΩ~2.00GΩ ± (3%+5)
2.00GΩ~20.00GΩ ± (5%+0.2GΩ)
20.0GΩ~100.0GΩ ± (10%+2GΩ)
1000V (0%~+20%) 5.00GΩ~10.00GΩ±(10%+0.2GΩ)
Short Circuit Current 3mA
Multimeter Functions DC Voltage Test 0.1~1000V±0.5%
C Voltage Test 0.1~750V±1%
Continuity Test 0.01Ω~200Ω±0.5%
General Parameter Brand HABOTEST
Model HT5205
Color Black+Red
Power Supply 6 x 1.5V LR4 Batteries
Item Size 180*140*65mm
Weight pprox. 950g
Safety Rating CE, CAT.III, 1000V,RoHs
