R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Specifications
Brand Name :
TGFQ
Model Number :
R450LC7,R480LC9,
Place of Origin :
CHINA
MOQ :
1
Price :
1415.00USD
Payment Terms :
L/C,T/T,D/P,D/A
Supply Ability :
50 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Package Size :
63×63×73 CM
Weight :
450 KG
Holes :
24/24
Part Number :
XKAH-01287/31NB-40030
Description
Travel Device Reducer Gearbox XKAH-01287/31NB-40030
High-performance planetary gearbox assembly designed specifically for R450LC7, R480LC9, R500LC7, and R520LC9 excavator travel drive systems. This precision-engineered component ensures reliable operation and durability in demanding construction environments.
Product Specifications
Product Name Travel Gearbox Assembly
Place of Origin China (Mainland)
Model R450LC7, R480LC9, R500LC7, R520LC9
Part Number XKAH-01287/31NB-40030
Package Size 63×63×73 CM
Weight 450 KG
Delivery Time Within 1-3 days after payment confirmation
Shipping Methods Sea Freight, Air Freight, or Express Delivery
Product Images
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator

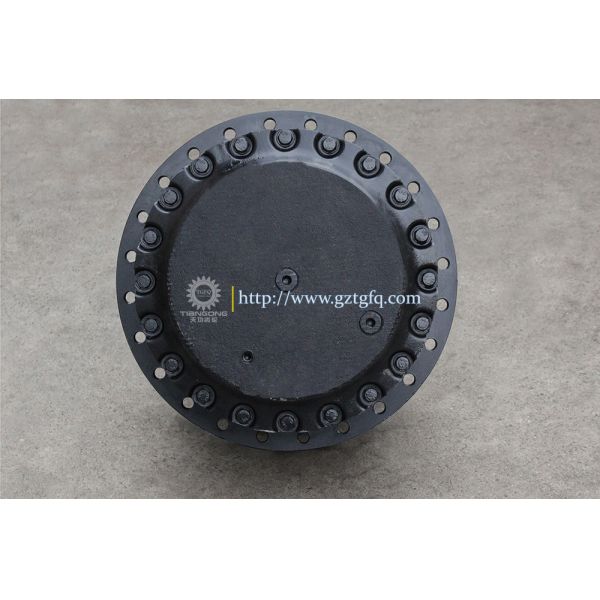

Front View
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator

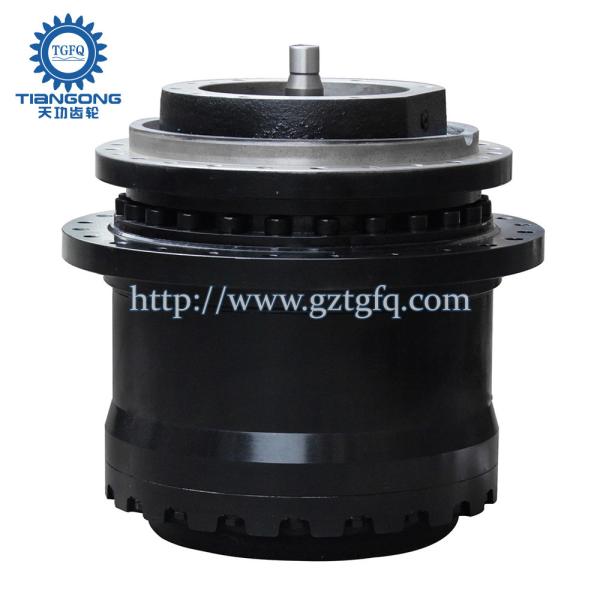

Side View
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Internal Components

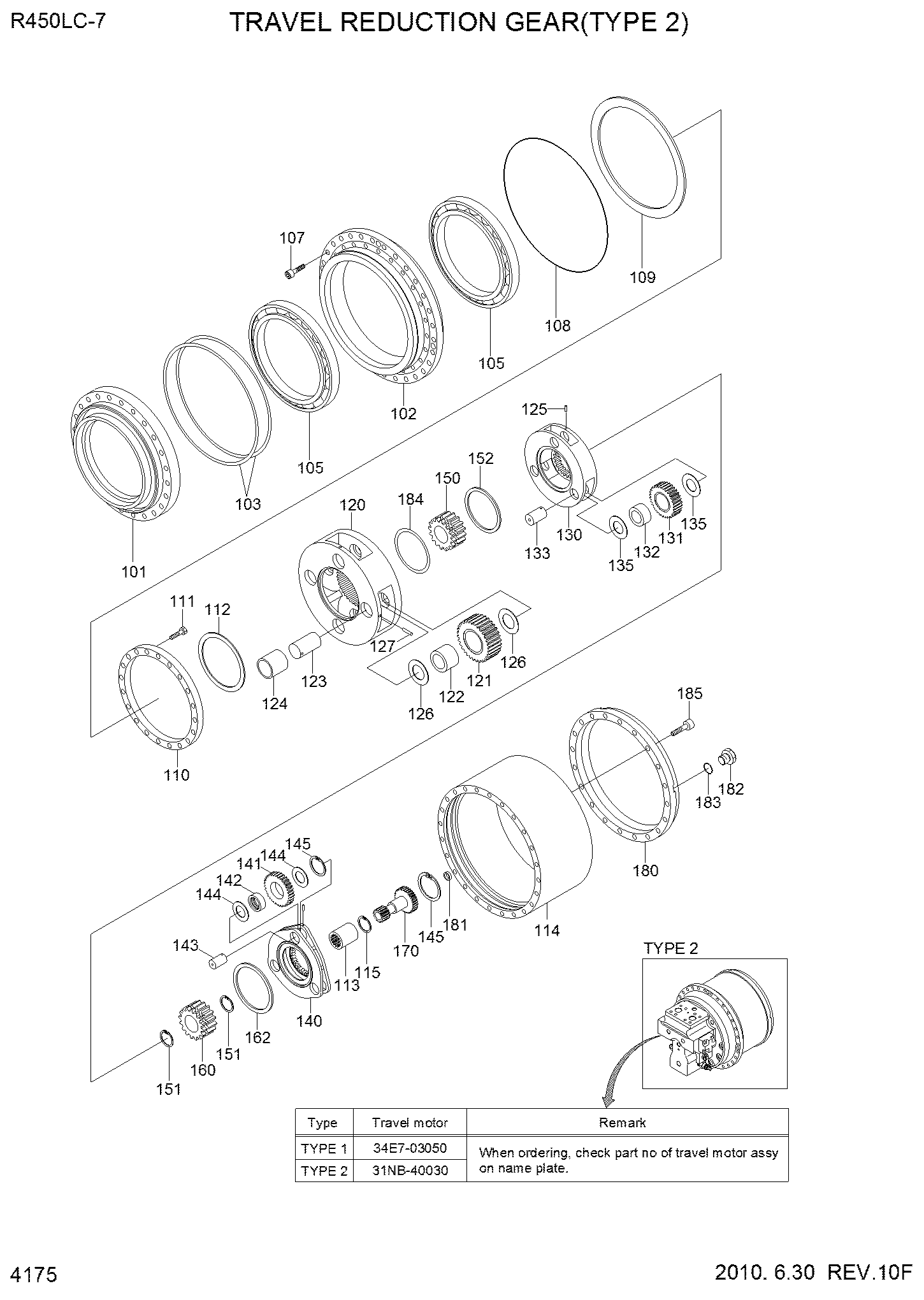

Travel Motor Parts Breakdown
Position Part Number Quantity Parts Name
-4. XKAH-01287 [1] REDUCTION GEAR
N101. XKAH-01542 [1] SPINDLE
N102. XKAH-01543 [1] HUB
103 XKAH-01290 [2] SEAL-FLOATING
105 XKAH-01291 [2] BEARING-ANGULAR
107 XKAH-01292 [24] BOLT-SOCKET
108 XKAH-01293 [1] O-RING
109 XKAH-01294 [1] PLECE-DISTANCE
110 XKAH-01575 [1] COPLING-B
111 XKAH-01545 [20] BOLT-SOCKET
112 XKAH-00436 [1] PLATE-THRUST
113 XKAH-01297 [1] COUPLING
N114. XKAH-01298 [1] GEAR-RING
115 XKAH-00517 [1] RING-SNAP
N120. XKAH-01546 [1] CARRIER NO.3
121 XKAH-01300 [4] PLANETARY GEAR NO.3
122 XKAH-01548 [8] BEARING-NEEDLE
123 XKAH-01301 [4] BUSHING-FLOATING
124 XKAH-01302 [4] SHAFT-BEARING NO.3
125 XKAH-01113 [3] SPRING-PIN
126 XKAH-01303 [8] WASHER-THRUST(3.5)
127 XKAH-01259 [4] PIN-SPRING
N130. XKAH-01304 [1] CARRIER NO.2
131 XKAH-01305 [3] PLANETARY GEAR NO.2
132 XKAH-01548 [1] BEARING-NEEDLE
133 XKAH-01306 [3] SHAFT-BEARING NO.2
135 XKAH-01307 [6] WASHER-THRUST(2.5)
N140. XKAH-01549 [1] CARRIER NO.1
141 XKAH-01309 [1] PLANETARY GEAR NO.1
142 XKAH-01003 [3] BEARING-NEEDLE
143 XKAH-01262 [3] RING-INNER
144 XKAH-01000 [6] PLATE -SIDE
145 XKAH-00143 [3] RING-SNAP
150 XKAH-01310 [1] SUN GEAR NO.3
151 XKAH-01009 [2] RING-THRUST 90
152 XKAH-01311 [1] CLIP
160 XKAH-01312 [1] SUN GEAR NO.2
162 XKAH-01313 [1] CLIP
170 XKAH-01314 [1] GEAR-DRIVE
N180. XKAH-01576 [1] COVER
181 XKAH-01284 [1] WASHER-THRUST(M)
182 XKAH-00032 [3] PLUG-RO
183 XKAH-00035 [3] O-RING
184 XKAH-01550 [3] RING-THRUST
185 XKAH-01316 [20] BOLT-SOCKET
Technical Drawings
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Technical Drawing
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Technical Details
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Manufacturing Process
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Quality Inspection
Our Warehouse & Inventory
We maintain extensive storage facilities including over 4,000 square meters of three-dimensional warehouse space and an additional 2,000 square meters of outdoor warehouse area. This ensures we have sufficient inventory to meet customer demands and provide faster response times. Rapid delivery is one of our key competitive advantages.
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Three-Dimensional Warehouse
R450LC7,R480LC9, R500LC7,R520LC9, Travel Device Reducer Gearbox XKAH-01287/31NB-40030 suitable for Excavator
Outdoor Storage Area
Frequently Asked Questions
What products and services do you provide?
We specialize in providing excavator final drive and swing drive motors, reducer gearboxes, and their component parts for various heavy equipment applications.
What is your warranty policy?
We offer a 3 to 6 month warranty period. During this time, we provide maintenance spare parts free of charge for any warranted issues.
How do you ensure product quality?
We maintain durable quality standards at reasonable prices. Our commitment to quality is paramount - we understand that inferior parts waste your time and money, so we consistently deliver the highest quality components possible.
What is the ordering process?
Simply provide us with the model and quantity you require. We will issue a proforma invoice, and upon payment receipt, we will prepare your order. Preparation time varies based on order specifics.
Do you have your own manufacturing facility?
Yes, we operate our own factory with 22 years of specialized experience in the excavator gear industry, ensuring expert manufacturing and quality control.
