The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
Specifications
Brand Name :
TGFQ
Model Number :
E374GC/E374
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1 pc
Price :
658.00USD
Payment Terms :
T/T
Supply Ability :
100PCS
Delivery Time :
1-3days
Material :
Steel
Drive Type :
Hydraulic
Model :
E374GC/E374
Weight :
58KGS
Product Name :
Excavator Final Drive
Availability :
In Stock
Description

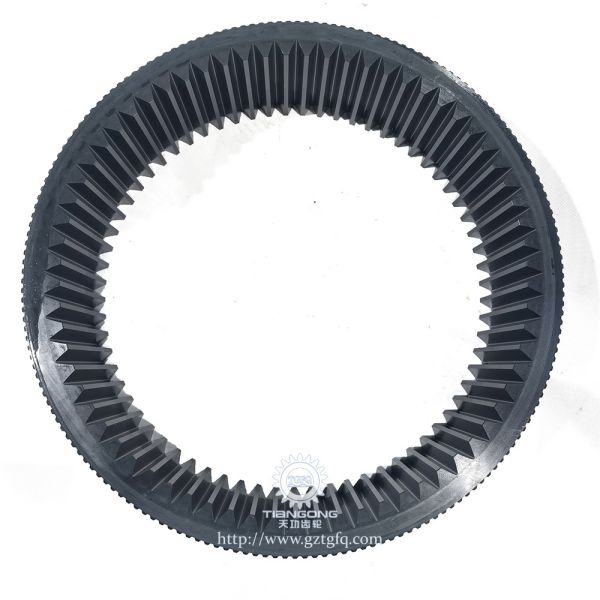

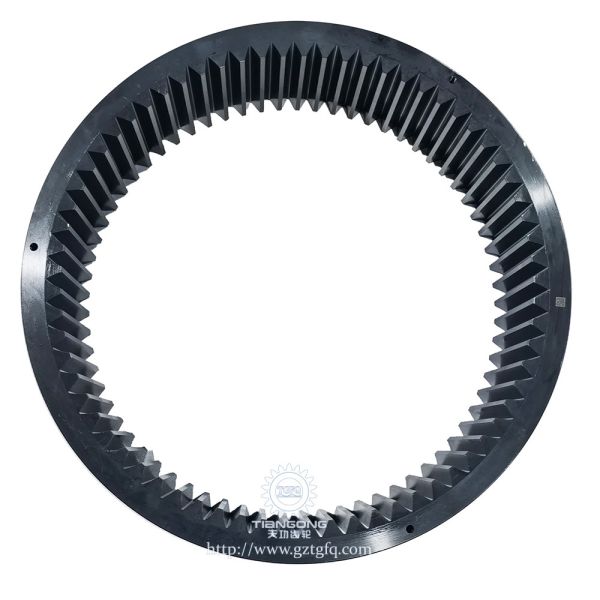

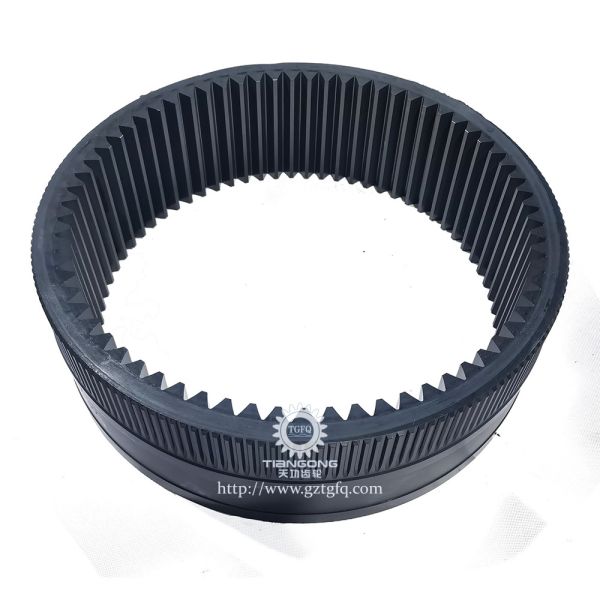

Travel Gear-Ring (69-TEETH) 569-4266
This specialized travel gear-ring is engineered to accommodate the final drive configurations of both E374GC and E374 607-5640/RH607-5641 excavators.
Product Overview
High-quality excavator final drives for E374 and E374GC models, engineered to deliver superior performance and reliability. Constructed from durable steel materials and powered by hydraulic drive systems, these components provide maximum torque and efficiency across diverse operating conditions.
Key Specifications
Product Name Excavator Final Drive
Part Numbers 569-4266
Compatible Models E374 E374GC Travel DRIVE GP-Travel -RH and LH
Drive Type Hydraulic
Material High-strength Steel
Weight Classification Heavy-duty
Availability In Stock
Product Features
  • Excavator Travel Gearbox without Motor
  • Excavator Travel Reduction System
  • Heavy-duty construction for demanding applications
  • Hydraulic drive system for maximum efficiency
  • High-strength steel material for durability
Applications
This specialized excavator final drive is a travel gearbox component designed for E374 and E374GC models. This hydraulic drive system is engineered for heavy-duty applications and is widely utilized in various excavator travel assemblies and gearbox configurations.
Product Images
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
Parts Breakdown
The Travel Gear-Ring (69-TEETH) 569-4266 is tailored to accommodate the final drive configurations of both E374GC and E 374 607-5640/RH607-5641 excavators.
Caption No. Part Number Part Name Quantity
607-5640/607-5641 Travel gearbox 1
1 566-1452 Spacer (8.1X24X5.5-MM Thk) 1
2 630-3014 Housing 1
3 630-3013 Cover AS 1
4 630-3015 Hub 1
5 630-3018 Shaft 1
6 630-3019 Planetary AS 1
7 630-3020 Gear-Sun (29-TEETH) 1
8 569-4266 Gear-Ring (69-TEETH) 1
9 569-4267 Nut-Spanner (M395X3-THD) 1
10 569-4270 Planetary AS 1
11 569-4271 Planetary AS 1
12 630-3021 Ring-Retaining 1
13 569-4274 Seal-O-Ring 1
14 569-4275 Seal GP-Duo-Cone 1
15 569-4277 Bearing 2
16 567-7180 Plug AS-Drain 2
17 7M-8485 Seal-O-Ring 1
18 252-9197 Bolt-Socket Head (M12X1.75X35-MM) 12
Support & Services
Our excavator final drive comes with comprehensive technical support and service. Our professional team is available 24/7 to assist with installation, maintenance, parts identification, and troubleshooting. We provide accurate diagnostic information to help resolve issues quickly and efficiently, ensuring optimal performance of your equipment.
