R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
Specifications
Brand Name :
TGFQ
Model Number :
R80-7/R80-9
Place of Origin :
GUANGZHOU,CHINA
MOQ :
1 pc
Price :
1090..00USD
Payment Terms :
T/T
Supply Ability :
30PCS
Delivery Time :
1-3days
Packaging Details :
63*63*75CM
Weight :
330KGS
Material :
Steel
Model :
R305-7/R290-5 R320LC-7A
Availability :
In Stock
Product Name :
Excavator Final Drive
Drive Type :
Hydraulic
Description
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
Our premium excavator Swing Drive unit is engineered specifically for R305-7/R290-5 R320LC-7A excavator models. This heavy-duty swing drive component delivers exceptional performance and reliability for demanding construction applications.
Key Product Features
Product Name: Excavator Swing Drive
Availability: In Stock
Weight: 330KGS
Material: High-strength steel
Drive Type: Hydraulic
Compatibility: R305-7/R290-5 R320LC-7A models
Technical Specifications
Product Name Excavator Swing Drive
Drive Type Hydraulic
Compatible Models R305-7/R290-5 R320LC-7A
Weight Classification Heavy
Construction Material Steel
Part Numbers 31N9-10150/31N9-00151
Applications
This R305-7/R290-5 R320LC-7A swing gearbox component serves as a critical hydraulic drive system for excavator swing mechanisms. Designed for heavy-duty applications, it's widely utilized in various excavator swing parts and gearbox assemblies.

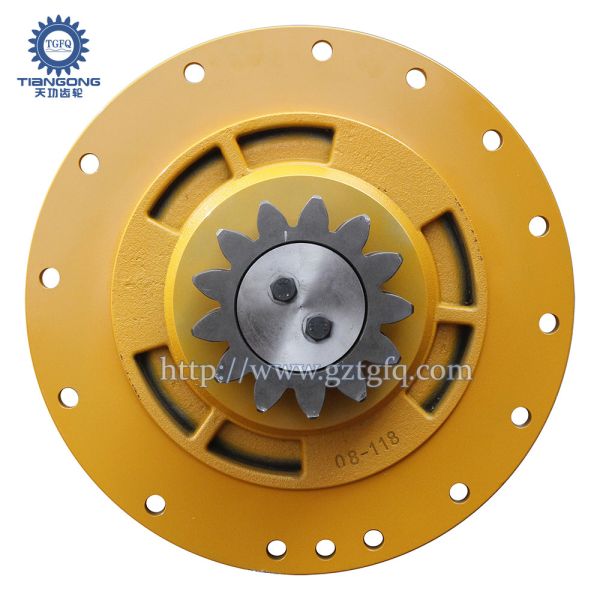

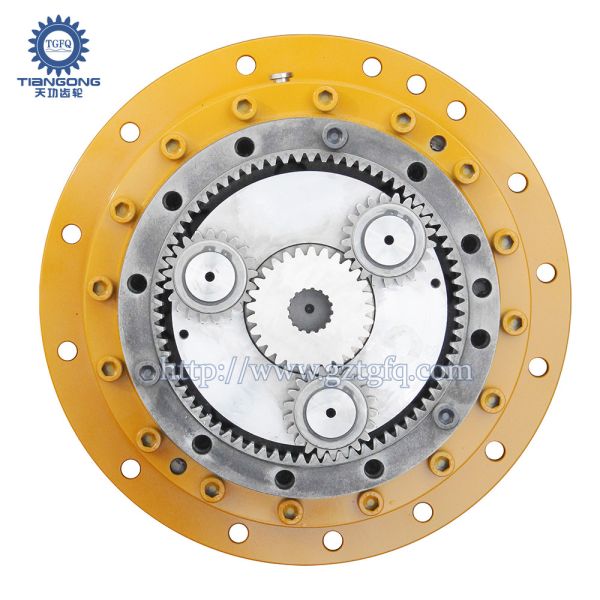

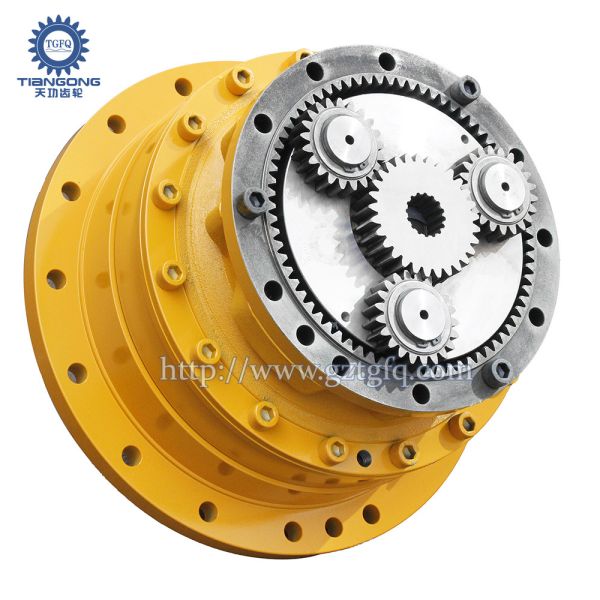

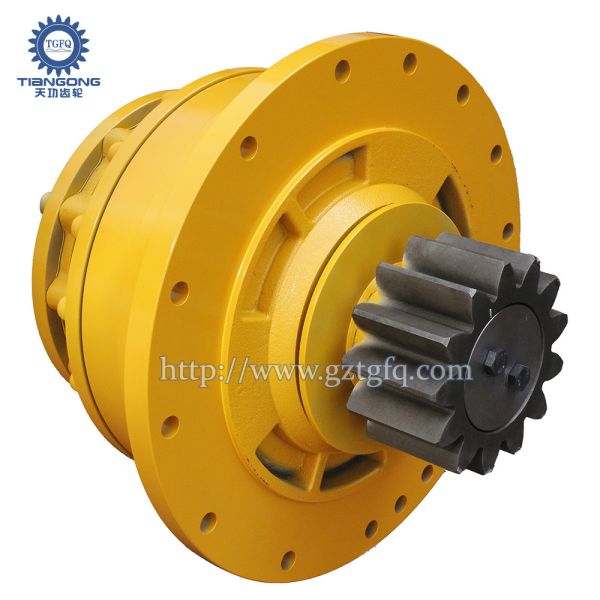

Product Gallery

R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3

R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3

R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3

R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3

R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3

Component Breakdown
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
Pos Part Number Quantity Component Name
N*-2. 31N9-10152 [1] SWING REDUCTION GEAR
1 XKAQ-00279 [1] CASING-FRONT
1 XKAQ-00329 [1] CASING-FRONT
2 XKAQ-00003 [1] CASING-MIDDLE
3 XKAQ-00328 [1] SHAFT-DRIVE
4 XKAQ-00172 [1] GEAR-RING
5 XKAQ-00022 [3] GEAR-PLANET 2
6 XKAQ-00012 [1] GEAR-2 SUN
7 XKAQ-00008 [1] GEAR-RING 1
8 XKAQ-00137 [3] GEAR-PLANET 1
9 XKAQ-00009 [1] GEAR-1 SUN
10 XKAQ-00016 [1] CARRIER
*. XKAQ-00021 [3] PIN ASSY NO.2
N11. XKAQ-00060 [3] PIN ASSY-2
N32. XKAQ-00046 [3] BUSHING 2
12 XKAQ-00059 [6] WASHER-THRUST
13 XKAQ-00058 [1] BUTTON-THRUST
14 XKAQ-00136 [3] PIN ASSY 1
15 XKAQ-00057 [3] PLATE-SIDE 1
16 XKAQ-00056 [6] MAGNET
17 XKAQ-00055 [1] PLATE-SIDE 3
18 XKAQ-00034 [1] BAR-GAUGE
19 XKAQ-00035 [1] PIPE-GAUGE
20 XKAQ-00108 [1] RING-SPACER
21 XKAQ-00053 [2] PIN-KNOCK
22 XKAQ-00028 [1] BEARING-ROLLER
23 XKAQ-00027 [1] BEARING-ROLLER
25 XKAQ-00052 [16] BOLT-SOCKET
26 XKAQ-00051 [12] BOLT-SOCKET
27 XKAQ-00280 [1] SEAL-OIL
27 XKAQ-00330 [1] SEAL-OIL
28 XKAQ-00050 [3] PIN-SPRING
29 XKAQ-00049 [1] PLUG
30 XKAQ-00048 [3] PIN-SPRING
31 XKAQ-00047 [1] RING-STOP
33 XKAQ-00045 [1] RING-STOP
34 XKAQ-00292 [1] WASHER-LOCK
35 XKAQ-00105 [1] GEAR-PINION
36 XKAQ-00296 [1] PLATE-LOCK

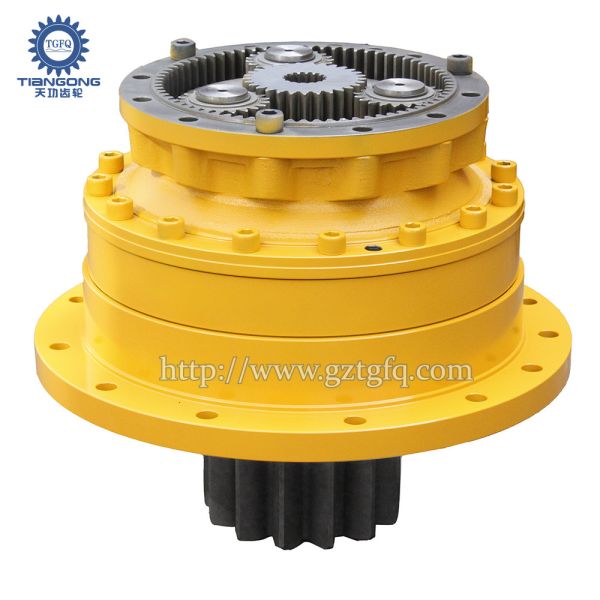

Additional Product Images
R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3 R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3 R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3 R305-7/R290-5 R320LC-7A SWING REDUCTION GEAR(-#0368) EPC Hyundai 31N9-10150/31N9-00151 R320LC-3
Technical Support & Services
Our excavator Swing Drive comes with comprehensive technical support and service. Our expert team provides assistance with installation, maintenance, parts identification, and technical troubleshooting. We offer 24/7 diagnostic support to ensure rapid resolution of any operational issues, backed by our commitment to customer satisfaction and equipment reliability.
