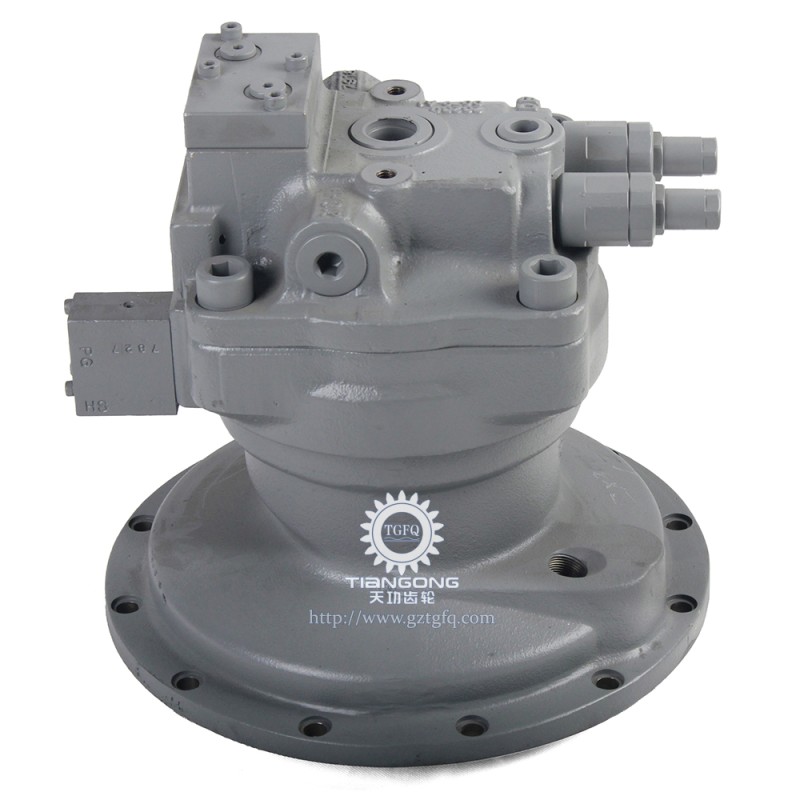

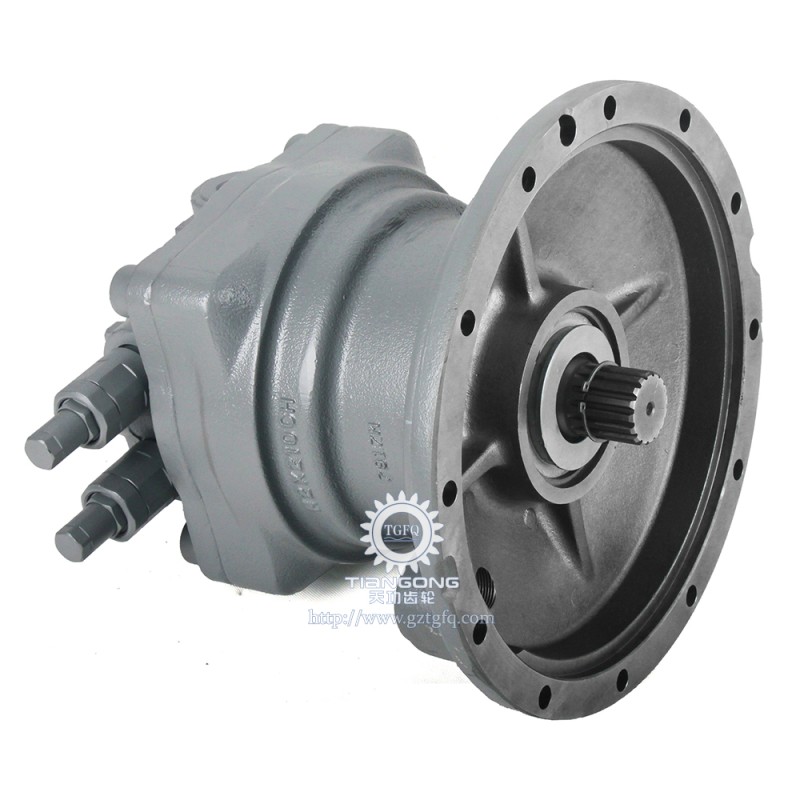

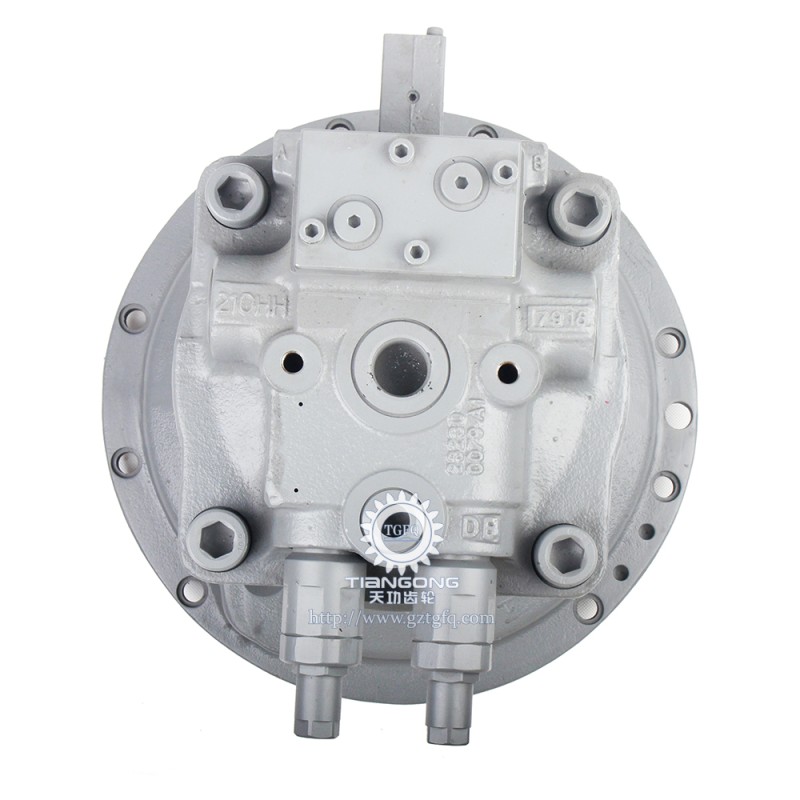

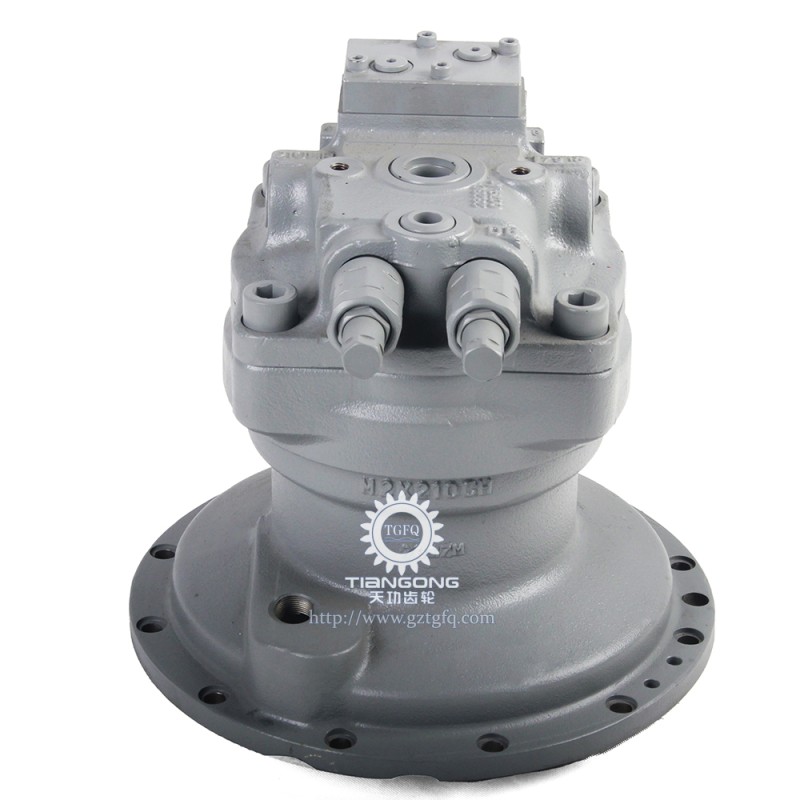

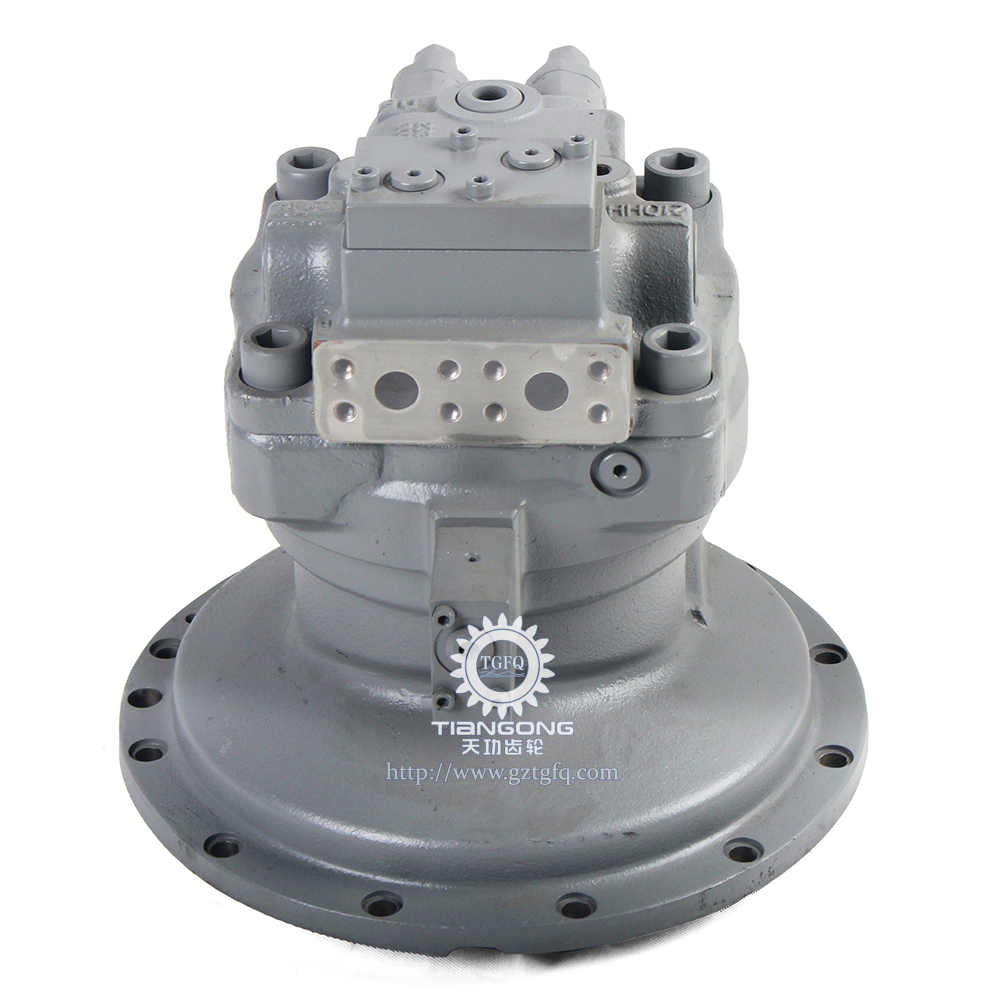

EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
Specifications
Model Number :
EX350-5H EX370 EX300-5
Drive Type :
Hydraulic
Delivery Time :
1-3days
Payment Terms :
T/T
Place of Origin :
GUANGZHOU,CHINA
Weight :
85 kg
Brand Name :
TGFQ
Material :
Steel
Price :
1120.00USD
MOQ :
1 pc
Compatible Models :
EX350-5H EX370 EX300-5
Description
EX350-5H EX370 JD2554 Spare Part 4371768 Hydraulic Motor EX300-5
TGFQ High Torque Excavator Swing Drive. Premium excavator swing drive unit engineered for EX350-5H EX370 EX300-5 excavator models. This heavy-duty component delivers exceptional torque, stable performance, and long service life for demanding construction applications.
Product Overview
Manufactured from high-strength steel with hydraulic drive technology, this swing motor is available for immediate shipment.
Key Features
  • Product Name: Excavator Swing Motor
  • Availability: In Stock
  • Weight: 85 kg
  • Material: High-strength steel
  • Drive Type: Hydraulic
  • Compatibility: EX350-5H EX370 EX300-5 excavators
  • Design: Excavator swing gearbox without motor
  • Function: Excavator swing reduction system
Technical Specifications
Product Name Excavator Swing Drive
Drive Type Hydraulic
Compatible Models EX350-5H EX370 EX300-5
Weight Classification Heavy
Construction Material Steel
Part Numbers 4371768
Applications
This TGFQ swing gearbox component serves as a critical hydraulic drive system for excavator swing mechanisms. Designed for heavy-duty applications, it's widely utilized in various excavator swing parts and gearbox assemblies.
Product Gallery
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5

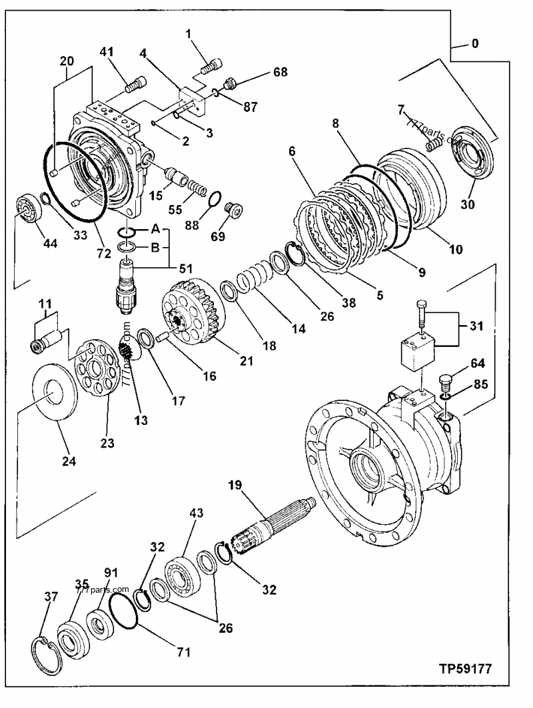

Component Breakdown
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
Item Part Number Part Name Quantity
0 4371768EX HYDRAULIC MOTOR; (210 CC) (FOR LOG LOADER FRONTS ORDER CODE 6835, 6845) (REMANUFACTURED) (SUB FOR AT250010) 1
1 150809 SCREW; (SUB FOR AT204900) 4
2 4506406 O-RING; 5.800 X 1.900 MM (0.228" X 0.075") (SUB FOR TH104587) 2
3 CH10568 PACKING 2
4 692710 PLATE; (SUB FOR AT217932) 1
5 365429 PLATE; (SUB FOR TH112062) 3
6 365428 PLATE; (SUB FOR TH112061) 2
7 365331 SPRING; (SUB FOR TH112060) 22
8 365427 O-RING; 221.840 X 3.530 MM (8.734" X 0.139") (SUB FOR TH112059) 1
9 U42016 O-RING; 202.794 X 3.531 MM (7-63/64" X 0.139") 1
10 365425 PISTON; (SUB FOR TH112057) 1
11 365401 PISTON; (SUB FOR TH112029) 9
13 365407 BUSHING; (SUB FOR TH112036) 1
14 365408 SPRING; (SUB FOR TH112037) 1
15 409215 PLUNGER; (SUB FOR AT155198) 2
16 365410 PIN; 4.500 X 25.800 MM (0.177" X 1.016") (SUB FOR TH112038) 12
17 365410 WASHER; 47 X 58 X 1.500 MM (1.850" X 2.283" X 0.059") (SUB FOR TH112039) 1
18 365411 WASHER; 47 X 61 X 3 MM (1.850" X 2.402" X 0.118") (SUB FOR TH112040) 1
19 365404 SHAFT; (SUB FOR TH112033) 1
20 692702 CASE; (SUB FOR AT217924) 1
21 496104 CYLINDER; (SUB FOR AT167737) 1
23 365412 PRESSED FLANGED HOUSING; (SUB FOR TH112041) 1
24 692705 PLATE; (SUB FOR AT217927) 1
26 365405 WASHER; 50 X 61 X 3 MM (1.969" X 2.402" X 0.118") (SUB FOR TH112034) 3
30 719603 PORT PLATE; (SUB FOR AT219570) 1
31 719601 FLOW CONTROL HYD. VALVE; (SUB FOR AT219568) 1
32 40M7166 SNAP RING 2
33 40M7195 SNAP RING 1
35 365416 COVER; (SUB FOR TH112045) 1
37 Z973069 SNAP RING; (SUB FOR AT132424) 1
38 40M7043 SNAP RING 1
41 365417 SCREW; (SUB FOR TH112046) 4
43 AT132384 CYLINDRICAL ROLLER BEARING 1
44 365324 SEE T/CASE-MAIN BOX - 1281; (SUB FOR TH112052) 1
51 719602 RELIEF VALVE; (SUB FOR AT219569) 2
51A A811030 O-RING; 29.400 X 3.100 MM (1.157" X 0.122") (SUB FOR TH101300) 1
51B 4284569 BACK-UP RING; (SUB FOR AT168851) 1
55 409216 SPRING; (SUB FOR AT155199) 2
64 629404 FITTING PLUG; (SUB FOR AT213630) 1
68 629404 FITTING PLUG; (SUB FOR AT213630) 2
69 692708 FITTING PLUG; (SUB FOR AT217930) 2
71 AT264320 O-RING; 109.400 X 3.100 MM (4.307" X 0.122") (SUB FOR T110448) 1
72 4S00217 O-RING; (SUB FOR AT217931) 1
85 M800650 PACKING 1
87 M800650 PACKING 2
88 AT264347 O-RING; (SUB FOR TH100136, 4506428) 2
91 251914 SEAL; (SUB FOR TH109952) 1
Additional Product Images
EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5 EX350-5H EX370 JD 2554 Spare part 4371768 HYDRAULIC MOTOR EX300-5
Technical Support & Services
Our excavator swing drive comes with comprehensive technical support and service. Our expert team provides assistance with installation, maintenance, parts identification, and technical troubleshooting. We offer 24/7 diagnostic support to ensure rapid resolution of any operational issues, backed by our commitment to customer satisfaction and equipment reliability.
