SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558
SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558
SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558
SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558
Specifications
Drive Type :
Hydraulic
Model Number :
E325D
Delivery Time :
1-3days
Supply Ability :
100PCS
Raceway Hardness :
55-62 HRC
Place of Origin :
GUANGZHOU,CHINA
Payment Terms :
T/T
Net weight :
335KGS
Brand Name :
TGFQ
Material :
50Mn / 42CrMo Alloy Steel
MOQ :
1 pc
Description
SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558
This specialized excavator final drive is a travel gearbox component designed for E325D models. This hydraulic drive system is engineered for heavy-duty applications and is widely utilized in various excavator travel assemblies and gearbox configurations.
SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558 SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558

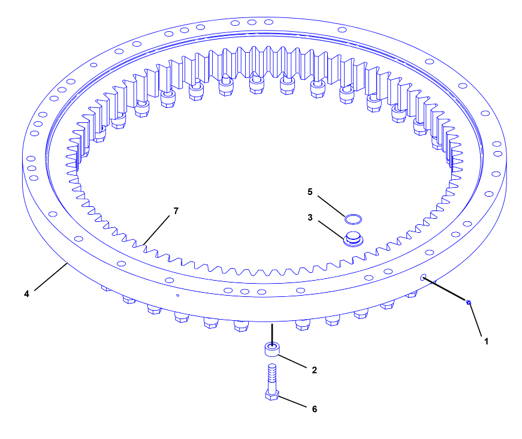

Parts Breakdown
SLEWING BEARING E325D 353-0654 GEAR & BEARING GP-SWING FIELD REPLACEMENT FOR 353-0558
Part Number Part Name Quantity
227-6073 Seal-Dust 2
3B-8489 Adapter(1/8-27 Ptf) 1
148-4685 Seal(414-CM)
352-7064 Cap 1
Product Overview
Our excavator slewing bearing (also named swing ring, turntable bearing) is a core rotary component for excavators. It supports 360° smooth rotation of upper-structure, bears axial load, radial load and overturning moment during heavy-duty digging work.
This is brand-new aftermarket replacement part, 1:1 interchangeable with original OEM unit. No modification needed during field installation. Wide model coverage, compatible with various excavator models of mainstream well-known brands worldwide. Custom-made service is available for special non-standard models.
Key Features
  • Adopt single-row four-point contact ball structure for excavator heavy-load working condition
  • Raw material: 50Mn / 42CrMo forged alloy steel; rolling body: GCr15 bearing steel ball
  • Raceway surface induction hardened, hardness 55-62 HRC, strong wear-resistance
  • External gear / internal gear optional, precise gear tooth processing
  • Multi-lip NBR rubber seal, effectively block dust, mud, water and debris
  • Strict 100-percent pre-shipment inspection: dimension check, gear tooth test, rotation smoothness test
  • Direct replacement, matches original mounting hole layout, dimension and gear parameters

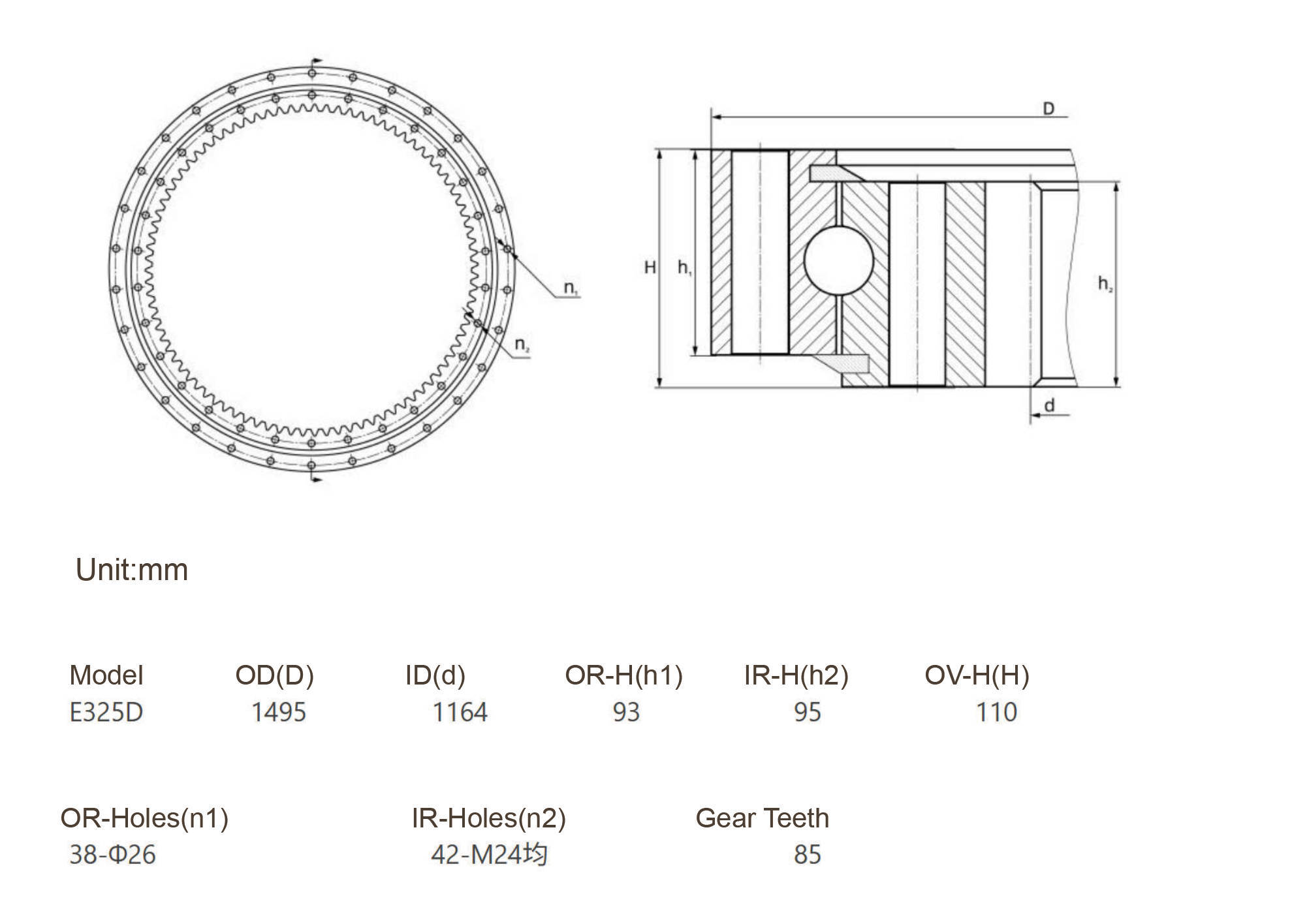

Technical Parameters
Product Name
Excavator Slewing Bearing / Swing Ring
Structure
Single-row four-point contact ball
Material
50Mn / 42CrMo Alloy Steel
Rolling Element
GCr15 Steel Ball
Raceway Hardness
55-62 HRC
Gear Type
External Gear / Internal Gear
Seal
NBR Multi-lip Rubber Seal
Model
E325D
Part Number
353-0654
Warranty
6-month warranty after shipment (Exclude improper installation, overload and bad lubrication)
Lead Time
7-15 working days after deposit received
Packing
Export reinforced wooden crate
What We Need For Exact Quotation
Please provide any one of below information for accurate offer:
  • OEM part number
  • Excavator machine model
  • Full dimension data: Outer Diameter, Inner Diameter, Overall Height, Gear teeth quantity, mounting hole size
Our Service
  • Small order acceptable, 1 set for trial order
  • Support custom-made according to drawings or samples
  • Professional technical support for fitting and installation advice
  • Fast reply within working hours
