SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3
SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3
SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3
SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3
Specifications
Brand Name :
TGFQ
Model Number :
SK200-6E SK200-7
Place of Origin :
CHINA
MOQ :
1
Price :
500.00-4000.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
Kobelco Final Drive
Part Number :
YN53D00008F3 / YN53D00008F2 / YN53D00008F1
Holes :
17/22
Part Model :
SK200-6E SK200-7
Weight :
218KG
Inner Packing :
Wrap with Shrink Film
Description

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

SK200-6E SK200-7 Final Drive For Apply To Kobelco Excavator TGFQ

Product parameter:

Product name: Travel Gearbox
Place of Origin: China(Mainland)
Model: SK200-6E SK200-7
Part Number: YN53D00008F3 / YN53D00008F2 / YN53D00008F1
MOQ: 1 PCS
Package Size: 52*52*58CM
Delivery time: Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

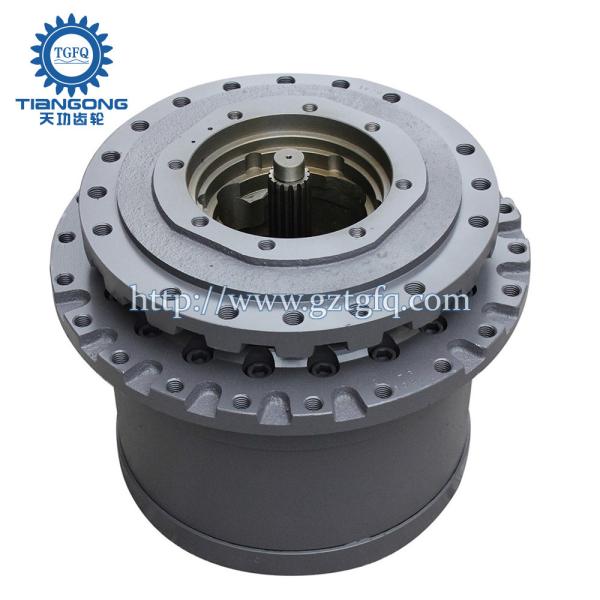

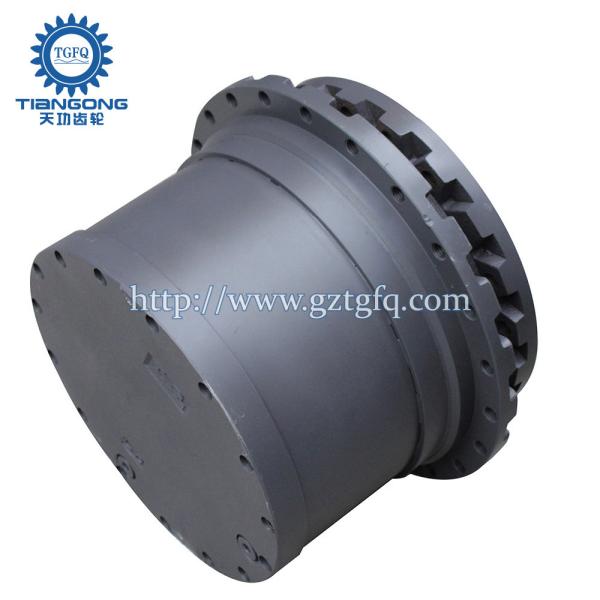

SK200-6E/7 final drive picture:

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

Drawing:

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

Pos. Part No Qty Parts name Comments
. . YN53D00008F2 [1] REDUCER KOB ASSY (PROPELLING) Superseded by part number: YN53D00008F3
. . YN53D00008F3 [1] HYDRAULIC MOTOR KOB REDUCTION ASSY (PROPELLING)
1 YN53D00008S001 [1] COVER KOB
4 LQ15V00005S004 [3] BEARING KOB NEEDLE
5 YN53D00008S005 [6] WASHER KOB
6 YN53D00008S006 [3] GEAR KOB PLANETARY
8 LQ15V00005S008 [1] PLATE KOB THRUST
9 YN53D00008S009 [1] GEAR KOB SUN
10 YN53D00008S010 [1] GEAR KOB SUN
13 YN53D00004S013 [3] BEARING KOB NEEDLE
14 YN53D00008S014 [3] GEAR KOB PLANETARY
15 ZP26D06036 [3] PIN KOB SPRING, FOR F1 ONLY
16 YN53D00008S016 [6] THRUST WASHER KOB
17 YN53D00008S017 [1] GEAR KOB RING
18 YN53D00008S018 [1] HOUSING KOB FOR F1 & F2 ONLY
19 YN53D00008S019 [2] BEARING KOB
20 YN53D00008S020 [1] SHIM KOB
21 YN53D00008S021 [2] WASHER KOB LOCK
22 YN53D00004S022 [1] RING KOB
23 YN53D00008S023 [1] SEAL KOB FLOATING
24 ZS23C10025 [15] SCREW,Hex Socket Head, M10 x 25mm KOB CAP Superseded by part number: ZS28C10025
25 ZS23C16080 [19] CAPSCREW,Hex Socket Head, M16 x 80mm KOB SCREW CAP, FOR F1 & F2 ONLY
26 ZE82T12000 [2] PLUG KOB
27 YN53D00008S027 [1] ROTOR KOB FOR F2 & F3 ONLY
28 YN53D00008S028 [3] PIN KOB FOR F2 & F3 ONLY
29 ZP26D05032 [3] PIN KOB SPRING, FOR F2 & F3 ONLY
30 YN53D00008S030 [1] ROTOR KOB FOR F2 & F3 ONLY
31 YN53D00008S031 [3] PIN KOB SPRING, FOR F2 & F3 ONLY
32 ZP26D08040 [3] PIN KOB SPRING, FOR F2 & F3 ONLY
34 ZS23C16090 [19] SCREW,Hex Socket Head, M16 x 90mm KOB CAPSCREW, FOR F3 ONLY
. . YN53D00008R100 [1] KIT KOB REPAIR KIT CONSISTS OF Ref. 4(3), 5(6), 6(3), 27(1), 28(3), 29(3), FOR F2 & F3 ONLY
. . YN53D00008R200 [1] REPAIR KIT KOB REPAIR KIT CONSISTS OF Ref. 13(3), 14(3), 16(6), 30(1), 31(3), 32(3), FOR F2 & F3 ONLY

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

SK200-6E SK200-7 Excavator Kobelco Final Drive YN53D00008F3

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
