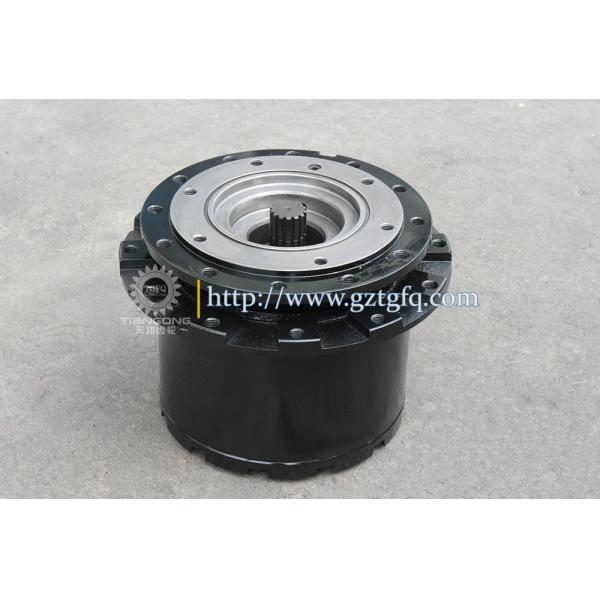

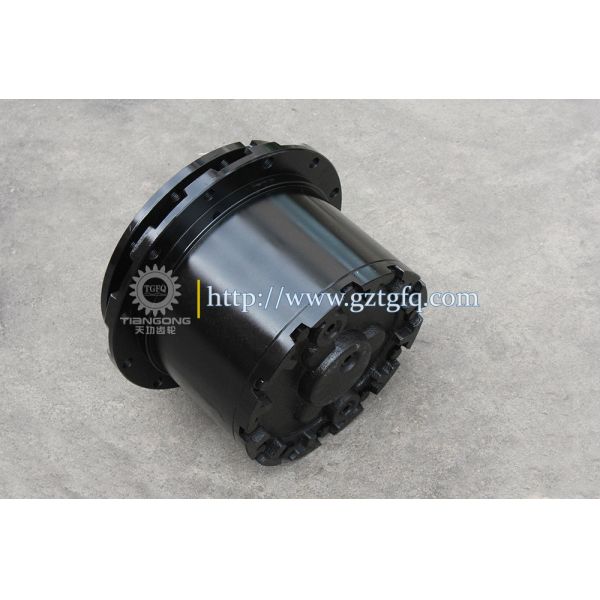

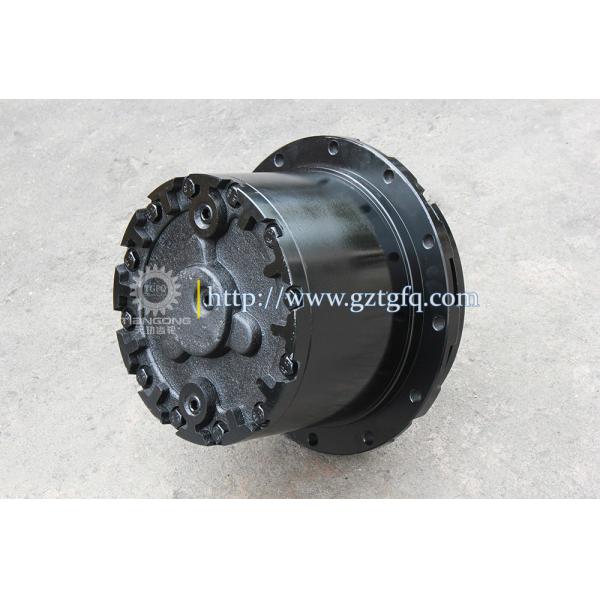

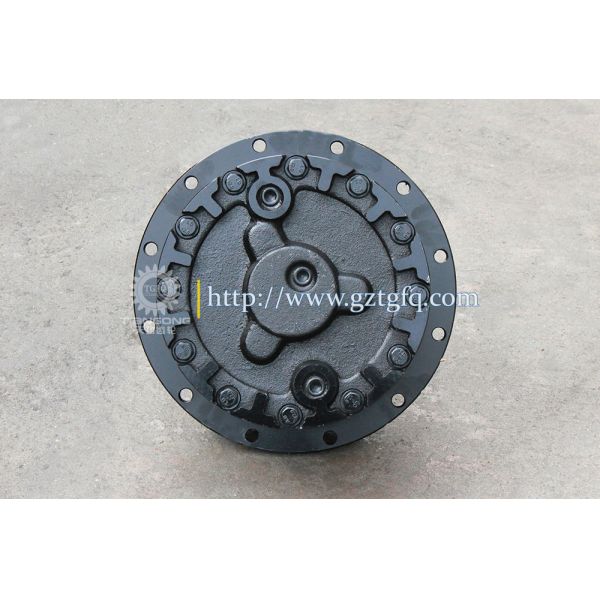

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927
EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927
EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927
EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927
EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927
EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927
Specifications
Brand Name :
TGFQ
Model Number :
EX60SR/EX60UR
Place of Origin :
CHINA
MOQ :
1
Price :
1000.00-5000.00usd
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
50 pcs / month
Delivery Time :
Depends On Order
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Brand :
TGFQ
Product Name :
Travel Motor Assy
Outer Packing :
wooden case
Delivery Port :
Huangpu Port
Applicable Industries :
Machinery Repair Shops, Energy & Mining
Apply for :
EX60-1/E60SR/EX60UR
Description

PRODUCT DESCRIPTION
Model: EX60-1/EX60SR/EX60SR
egory: Excavator Final Drive W/O motor
Brand: TGFQ
Type: EX60
Part Number: 9069295/9096479/ 9138927
Inventory: In stock
Color: Black
Holes: 12/12 Holes
Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

EX60-1/EX60SR/EX60SR 9069295/9096479/ 9138927 Hitachi Travel device assy

Excavator final drive

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

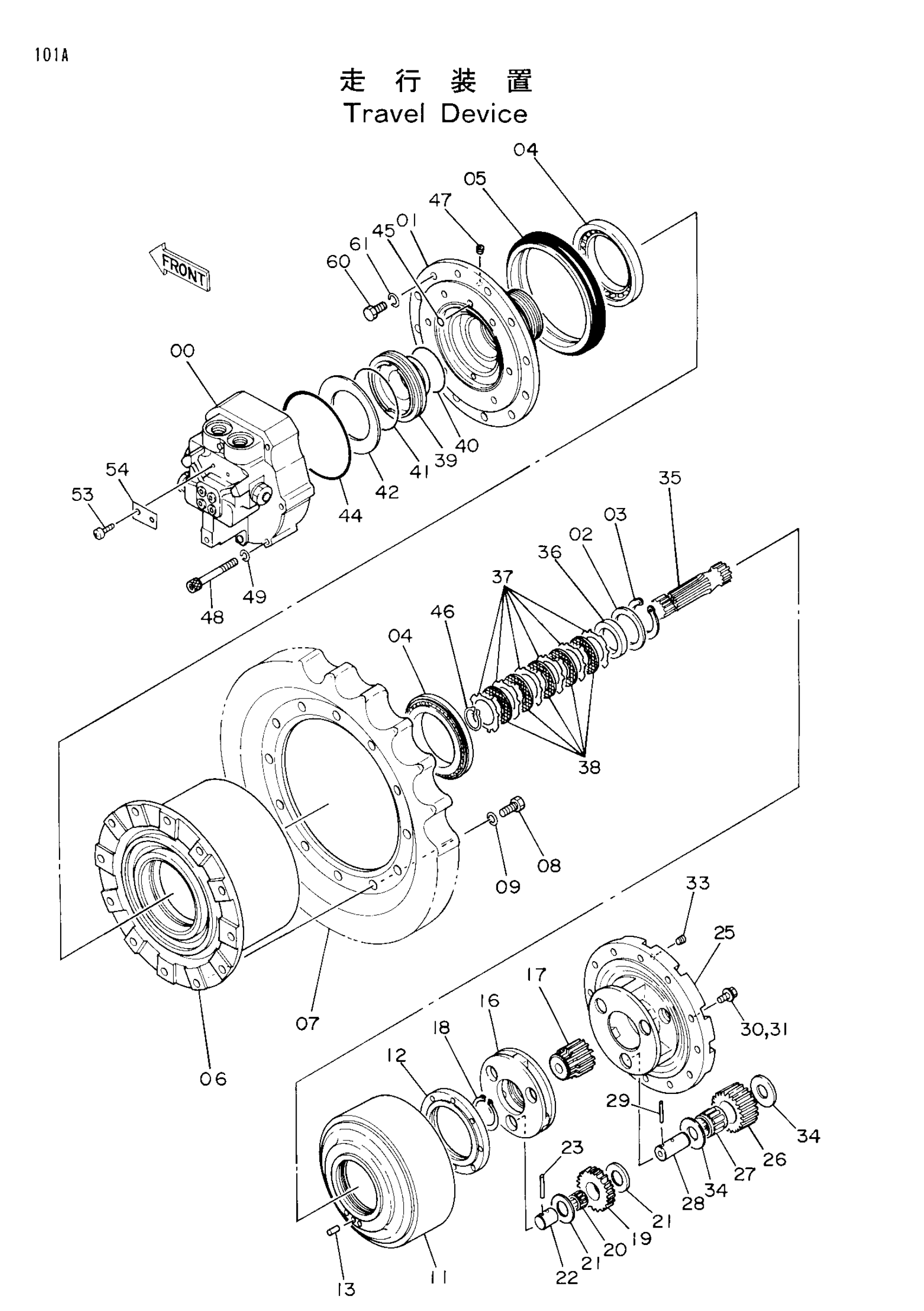

0 9069509 [1] MOTOR;OIL I 9123069
0 9123069 [1] MOTOR;OIL Y 9138838
0 9138838 [1] MOTOR;OIL
00-49. 9069295 [2] TRAVEL DEVICE ASS'Y Y 9096479
00-54. 9096479 [2] TRAVEL DEVICE ASS'Y I 9138927
00-54. 9138927 [2] TRAVEL DEVICE ASS'Y
1 1011457 [1] HOUSING
2 4092443 [1] SPACER
3 991726 [1] RING;RETAINING
4 4148014 [2] BRG.;ROL
5 4092483 [1] SEAL;GROUP
6 1011458 [1] DRUM
7 1010447 [1] SPROCKET
8 J931635 [12] BOLT Y J931640
8 J931635 [12] BOLT
8 J931640 [12] BOLT Y J931635
9 A590916 [12] WASHER;SPRING
11 2023132 [1] GEAR;RING
12 3027147 [1] NUT
13 4148012 [1] PIN;KNOCK
16 2023175 [1] CARRIER
17 3027146 [1] GEAR;SUN
18 959499 [1] RING;RETAINING
19 3027148 [3] GEAR;PLANETARY
20 4177007 [3] BRG.;NEEDLE
21 4192910 [6] PLATE;THRUST
22 4178202 [3] PIN
23 4169566 [3] PIN;SPRING
23 4173093 [3] PIN;SPRING Y 4169566
25 1010450 [1] CARRIER
26 3027149 [3] GEAR;PLANETARY
27 4148013 [3] BRG.;NEEDLE

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

EX60-1 EX60SR Excavator Final Drive Hitachi Travel Device Assy 9069295 9096479 9138927

FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: can I order one of our samples for testing first?
A: Of course!


Q: how do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
