E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
E320C 320C E320D 320D Excavator Swing Gearbox 148-4644
Specifications
Brand Name :
TGFQ
Model Number :
E320C 320C E320D 320D
Place of Origin :
CHINA
MOQ :
1
Price :
200.00-800.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
Excavator Swing Gearbox
Model :
E320C 320C E320D 320D
Part Number :
148-4644
Shaft :
14/34T
Package Size :
52*52*64 CM
Applicable Industries :
Machinery Repair Shops, Energy & Mining
Description

Parts E320C 320C E320D 320D Swing Gearbox 148-4644 Reduction Gear For Excavator

Quick Details
Model:E320C 320C E320D 320D
Brand: TGFQ
Part Number: 148-4644
Part Name: Excavator swing gearbox without motor
Weight: 200KG
Process: Heat Treatment

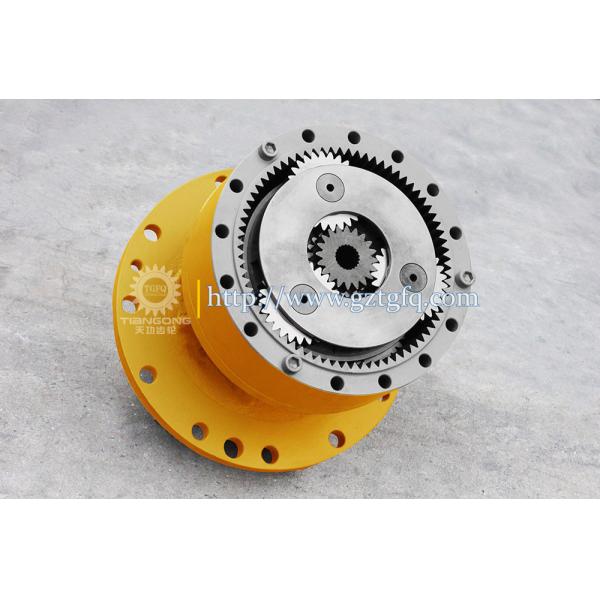

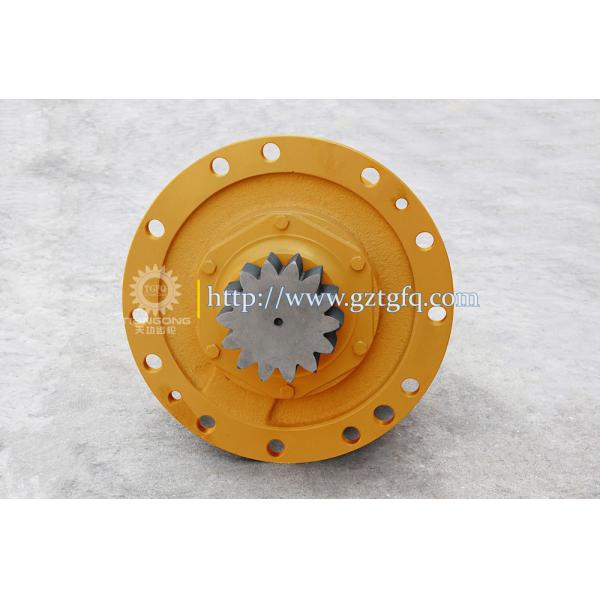

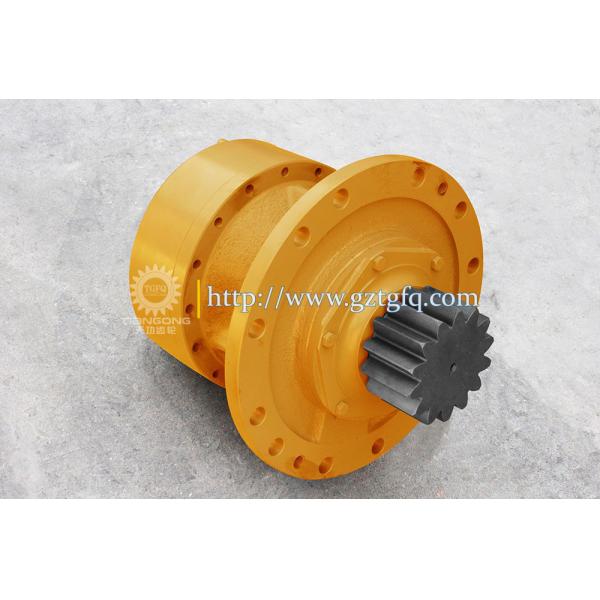

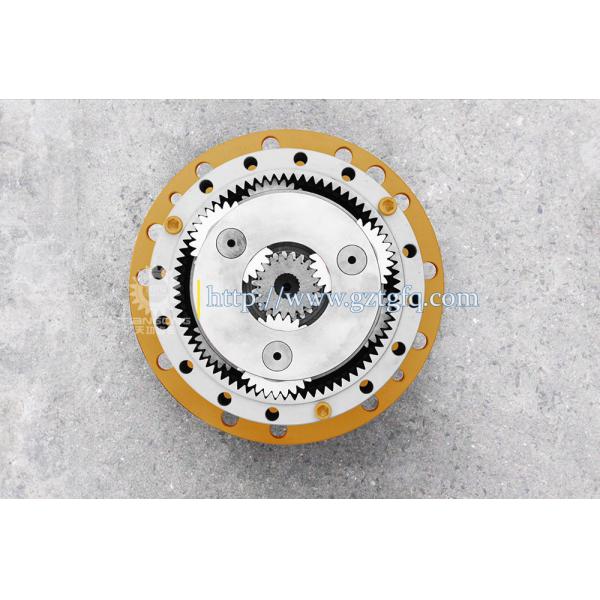

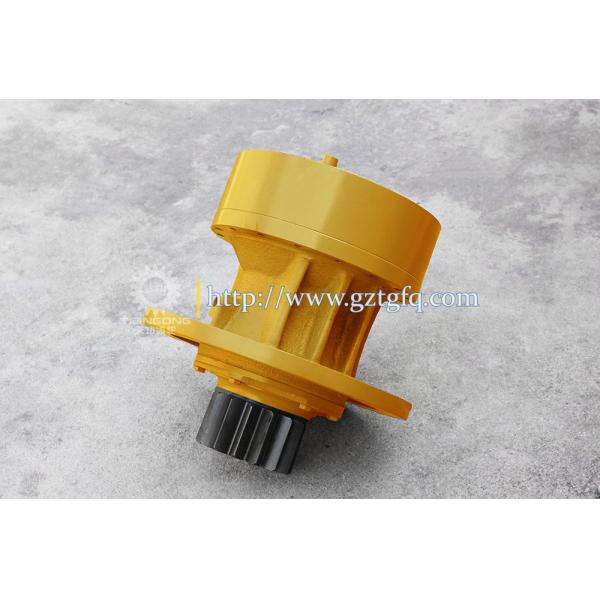

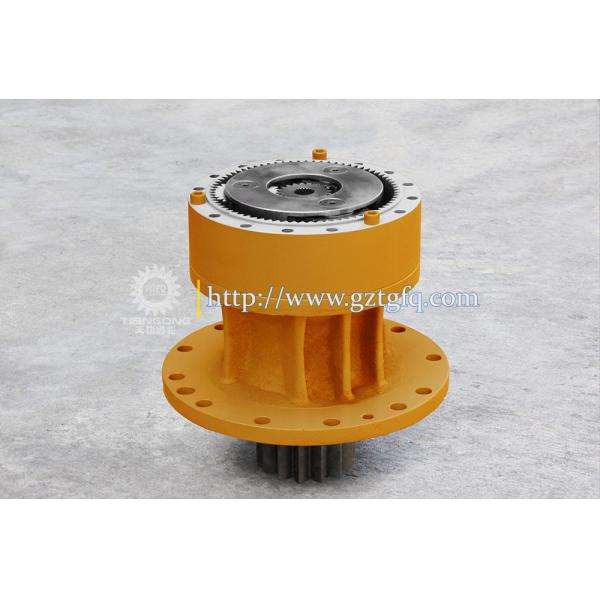

Excavator Swing Gearbox Photo:

E320C 320C E320D 320D Excavator Swing Gearbox 148-4644E320C 320C E320D 320D Excavator Swing Gearbox 148-4644E320C 320C E320D 320D Excavator Swing Gearbox 148-4644E320C 320C E320D 320D Excavator Swing Gearbox 148-4644E320C 320C E320D 320D Excavator Swing Gearbox 148-4644E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

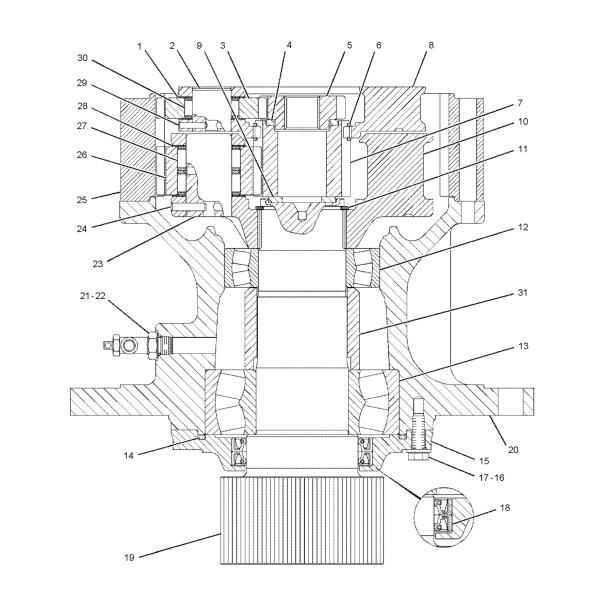

Excavator Swing Gearbox Drawing:

E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

Pos. Part No Qty Parts Name
1 094-0584 [6] WASHER (40.3X72X1-MM THK)
2 094-1509 [3] SHAFT-PLANETARY
3 148-4733 [3] GEAR-PLANETARY (26-TEETH)
4 114-1581 [1] SPACER (57.5X74X6-MM THK)
5 148-4732 [1] GEAR-SUN (20-TEETH)
6 093-1729 [2] RING-RETAINING
7 148-4632 [1] GEAR-SUN (23-TEETH)
8 191-2578 [1] CARRIER-PLANETARY
9 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
10 148-4637 [1] CARRIER-PLANETARY
11 148-4640 [1] RING-RETAINING
12 148-4643 [1] BEARING
13 095-1022 [1] BEARING-ROLLER
14 148-4642 [1] SEAL-O-RING
15 227-6228 [1] CAGE
16 8T-4183 M [6] BOLT (M12X1.75X40-MM)
17 8T-4223 [6] WASHER-HARD (13.5X25.5X3-MM THK)
18 199-4561 [2] SEAL-LIP TYPE
19 148-4636 [1] SHAFT-PINION
20 148-4638 [1] HOUSING
21 3K-0360 [1] SEAL-O-RING
22 6V-7238 [1] VALVE-SHUTOFF
23 148-4634 [3] SHAFT-PLANETARY
24 095-0891 [3] PIN-SPRING
25 148-4635 [1] GEAR-RING (73-TEETH)
26 148-4633 [3] GEAR-PLANETARY (25-TEETH)
27 7Y-0252 [6] BEARING AS-ROLLER
28 094-0611 [6] WASHER (47.3X76X1-MM THK)
29 095-0886 [3] PIN-SPRING
30 199-4582 [3] BEARING AS
31 171-9383 [1] SPACER
　 M 　 METRIC PART


E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse,It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

FAQ:
Q: How to ship my order?
A: Small package, will be by express such as DHL, TNT,UPS and etc.
Big quantity order, will be by air or by sea.


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
