E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
Specifications
Brand Name :
TGFQ
Model Number :
E325C 325C
Place of Origin :
CHINA
MOQ :
1
Price :
500.00-4000.00USD
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 pcs / month
Delivery Time :
1-3days
Packaging Details :
NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name :
325C Excavator Travel Reducer
Model :
E325C 325C
Holes :
20/18
Package :
55*55*60CM
Weight :
285KG
Part Number :
191-2682 / 191-4521 / 227-6116
Description

191-2682 Travel Drive Parts E325C Excavator Final Drive 325C

Product Parameter:

Product name: 325C Excavator Travel Gearbox
Place of Origin: China(mainland)
Model: E325C/ 325C
Hole: 20/18holes
MOQ: 1 PCS
Part Number: 191-2682 / 191-4521 / 227-6116
Delivery time: Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

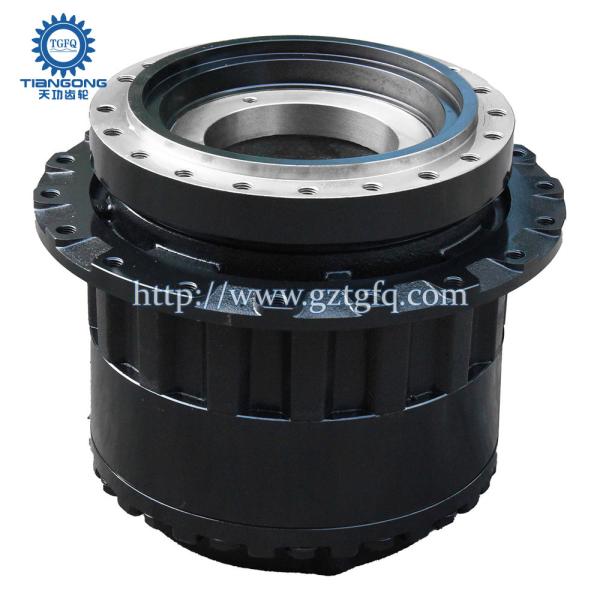

325C Excavator Travel Gearbox Picture:
E325C Excavator Final Drive 325C 191-2682 Travel Drive PartsE325C Excavator Final Drive 325C 191-2682 Travel Drive PartsE325C Excavator Final Drive 325C 191-2682 Travel Drive PartsE325C Excavator Final Drive 325C 191-2682 Travel Drive PartsE325C Excavator Final Drive 325C 191-2682 Travel Drive PartsE325C Excavator Final Drive 325C 191-2682 Travel Drive PartsE325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
325C Excavator Travel Gearbox Drawing:
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts
Pos. Part No Qty Parts Name
1 169-5586 [1] HOUSING-MOTOR
2 207-1571 [1] SEAL GP-DUO-CONE
2A. 163-7373 [2] RING-TORIC
3 168-8452 [2] BALL BEARING
4 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
5 169-5596 [1] STOP
6 171-9298 [1] SEAL-O-RING
7 191-2676 [1] GEAR-RING (72-TEETH)
8 169-5599 [1] CARRIER-PLANETARY
9 169-5590 [1] GEAR-SUN (24-TEETH)
10 191-2571 [1] CARRIER-PLANETARY
11 171-9387 [1] GEAR-RING (64-TEETH)
12 7M-8485 [2] SEAL-O-RING
13 3E-2338 [2] PLUG-PIPE
14 191-2686 [1] CARRIER AS
14A. 191-2687 [3] RACE-BEARING
15 093-1731 [2] RING-RETAINING
16 169-5589 [1] GEAR-SUN (24-TEETH)
17 094-0578 [1] PLATE (8-MM THK)
18 094-0579 [1] PLATE (9-MM THK)
19 094-0580 [1] PLATE (10-MM THK)
20 191-2683 [1] GEAR-SUN (20-TEETH)
21 191-2684 [3] GEAR-PLANETARY (21-TEETH)
22 096-0433 [3] RING-RETAINING
23 191-2689 [3] WASHER (34X70X1-MM THK)
24 191-2685 [3] BEARING AS
25 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
26 179-8733 M [16] BOLT (M20X2.5X170-MM)
27 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)
28 199-4503 [1] COVER
29 1U-8846 B 　 SEALANT-GASKET
31 191-2570 [6] BEARING AS (CAGED ROLLER)
32 169-5601 [3] SHAFT-PLANETARY
33 169-5592 [3] GEAR-PLANETARY (23-TEETH)
34 094-1528 [12] WASHER (53X84X1-MM THK)
35 095-0891 [6] PIN-SPRING
36 169-5593 [3] GEAR-PLANETARY (23-TEETH)
37 191-2569 [3] BEARING AS (CAGED ROLLER)
38 169-5602 [3] SHAFT-PLANETARY
39 169-5585 [1] HOUSING
40 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
41 191-2690 [3] WASHER (42.3X70X1-MM THK)
　 B 　 USE AS REQUIRED
　 M 　 METRIC PART
E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts

E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts

E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts

E325C Excavator Final Drive 325C 191-2682 Travel Drive Parts

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
