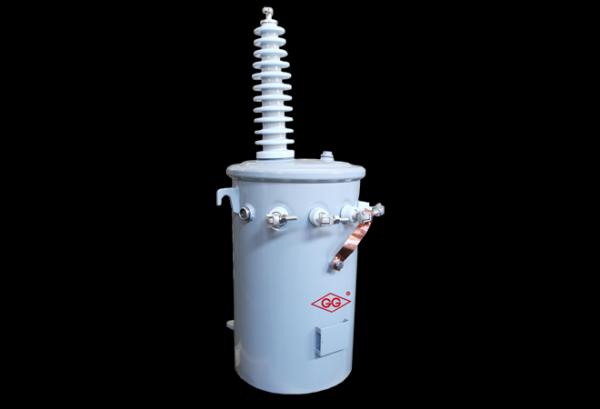

ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
Specifications
Brand Name :
GuangGao
Model Number :
D
Certification :
ISO CESI UL KEMA
Place of Origin :
Guangzhou
Packaging Details :
Export Standard Package
Payment Terms :
T/T L/C
Capacity :
10kVA, 15kVA, 25kVA, 37.5kVA, 50kVA, 100kVA, 167kVA, 250kVA, 333kVA
Name :
Single Phase Pole Mounted Distribution Transformer
Phase :
1
Input Voltage :
35kV, 34.5kV, 24.94kV, 13.8kV, 13.2kV, 12.47kV, 7.2kV
Output Voltage :
220V, 380V, 440V, 480V
Winding Material :
Copper / Aluminum
Core Material :
Silicon Steel Core / Amorphous Core
Application :
Power
Rated Capacity :
5-333kV
Warranty :
2 Years
Vector Group :
Dyn11
Cooling Method :
ONAN
Coil Quantity :
Autotransformer
Description
Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material
Product Specifications
Single Phase Pole Mounted Transformer 10-333kVA CSP Type
Rating (kVA) Voltage Combination No-Load Loss (W) Full-Load Loss (W) Dimension Weight (kg)
H.V. (V) H.V. Tapping Range L.V. (V) A B C D E Oil Weight Total Weight
5

13800/7967

13200/7620

12470/7200

11000/6350

......

±2x2.5%

......

120

240

480

120-240

240-480

......

 19 75 860 430 510 340 286 15 92
10 36 120 910 470 550 380 22 150
15 50 195 970 500 580 410 30 210
25 80 290 1025 550 630 450 45 258
37.5 105 360 1228 630 680 520 50 340
50 135 500 1235 630 680 520 62 395
75 190 650 1300 680 720 550 591 88 480
100 210 850 1350 780 810 610 94 530
167 350 1410 1460 830 890 660 138 680
250 500 2000 1570 960 950 660 250 990
333 650 2500 1660 960 960 660 300 1160

* Above specification may be changed to improve performance.

* Transformer of other specification than listed above can be made to order.

Product Overview

Western developed countries and Southeast Asia, North and South America, a large number of single-phase transformers are used as distribution transformers. In the distribution network with distributed power supply, single-phase transformers have great advantages as distribution transformers. It can reduce the length of low-voltage distribution lines, reduce line losses, and improve power supply quality. It is suitable for rural power grids, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption.

ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material

Certificate(Power transformers with CE, ISO, KEMA, UL certificates and test reports.)

ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material

Exhibition

ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material

Factory

ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material

Our Customers

ONAN Cooling Single Phase Pole Mounted Distribution Transformer 10kV Rating Cu-Al Material

Company Profile

Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transformers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulse testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.
