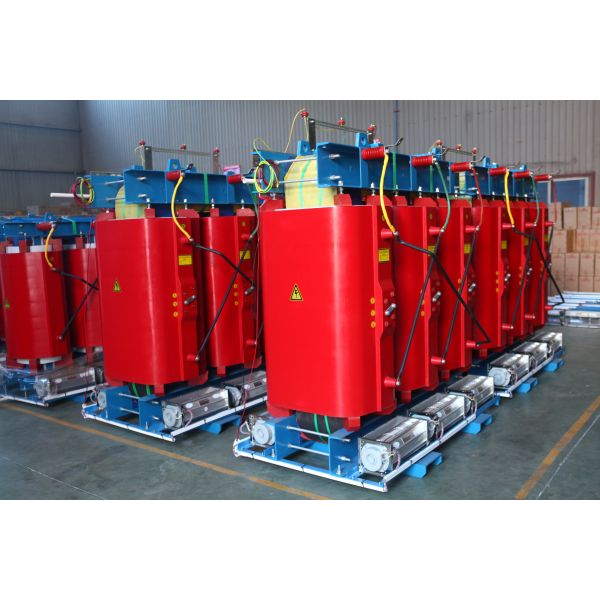

20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA
Specifications
Brand Name :
GuangGao
Model Number :
D
Certification :
ISO CESI UL KEMA
Place of Origin :
Guangzhou
MOQ :
3
Payment Terms :
T/T L/C
Packaging Details :
Export Standard Package
Phase :
3
Input Voltage :
20kV、22kV、24kV
Output Voltage :
0.4kV
Winding Material :
Copper / Aluminum
Core Material :
Silicon Steel Core / Amorphous Core
Application :
Power
Rated Capacity :
50-2500KVA
Warranty :
2 years
Vector Group :
Dyn11 Yyn0
Cooling Method :
ONAN
Standard :
IEC Standard
Name :
Dry Type Distribution Transformer
Description
20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2
Product Specifications
20kV dry-type distribution transformer SC(B)14-NX2 energy efficiency level 2
Capacity(kVA) Voltage Combination Vector group No load loss(W)(W) Full Load Loss (W) Short Circuit Impedance (%)
HV(kV) H.V. Tapping Range LV(kV) F(120℃) H(145℃)
50 20 22 24 ±5%/ ±2×2.5% 0.4 Dyn11 Yyn0 258 1110 1180 6
100 410 1790 1920
160 509 2220 2380
200 554 2650 2830
250 638 3080 3290
315 737 3670 3920
400 874 4360 4660
500 1026 5210 5570
630 1159 6160 6590
800 1330 7430 7960
1000 1577 8800 9360
1250 1805 10400 11100
1600 2118 12400 13300
2000 2460 14700 15800
2500 2945 17400 18600
2000 2460 16000 17200 8
2500 2945 19100 20400

* Above specification may be changed to improve performance.

* Transformer of other specification than listed above can be made to order.

Product Overview

  • Core Advantages & Application Scenarios

    The equipment features reliable moisture and dust resistance, enabling stable operation in humid rainy seasons in southern China or dusty suburban environments. This reduces annual maintenance frequency and downtime, lowering long-term operation and maintenance investment. Its heat dissipation structure, optimized for medium-low loads, not only operates with low noise (enhancing usability comfort) but also prevents accelerated component wear under high loads—slowing down equipment aging and extending its end-of-life cycle. Therefore, it is particularly suitable for scenarios that require high equipment operational stability but lack professional operation and maintenance teams, such as power distribution systems in old residential areas (minimal modifications for long-term use), small community supermarkets (minimal downtime for daily operations), and small suburban processing plants (complex environments with limited maintenance resources)—rather than being confined to conventional commercial or residential power distribution.

20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA

Patent

20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA

Professional Equipment

20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA

Production Process

20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA

Certificate

20kV Dry-type Distribution Transformer SC(B)14-NX2 Energy Efficiency Level 2 1000kVA

Company Profile

Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulsforme testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.
