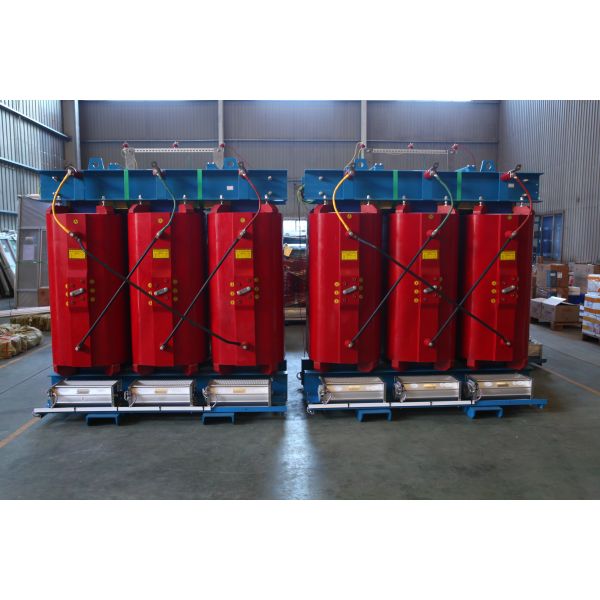

Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1
Specifications
Brand Name :
GuangGao
Model Number :
D
Certification :
ISO CESI UL KEMA
Place of Origin :
Guangzhou
MOQ :
3
Payment Terms :
T/T L/C
Packaging Details :
Export Standard Package
Name :
250 Kva 3 Phase Transformer
Phase :
3
Input Voltage :
20kV、22kV、24kV
Output Voltage :
0.4kV
Winding Material :
Copper / Aluminum
Core Material :
Silicon Steel Core / Amorphous Core
Application :
Power
Rated Capacity :
50-2500KVA
Warranty :
2 years
Vector Group :
Dyn11 Yyn0
Cooling Method :
ONAN
Standard :
IEC Standard
Description
20kV Dry-Type Distribution Transformer 250kVA SC(B)18-NX1 Energy Efficiency Level 1
Product Specifications
20kV dry-type distribution transformer SC(B)18-NX1 energy efficiency level 1
Capacity(kVA) Voltage Combination Vector group No load loss(W)(W) Full Load Loss (W) Short Circuit Impedance (%)
HV(kV) H.V. Tapping Range LV(kV) F(120℃) H(145℃)
50 20 22 24 ±5%/ ±2×2.5% 0.4 Dyn11 Yyn0 219 1110 1180 6
100 348 1790 1920
160 432 2220 2380
200 470 2650 2830
250 542 3080 3290
315 626 3670 3920
400 742 4360 4660
500 872 5210 5570
630 985 6160 6590
800 1130 7430 7960
1000 1340 8800 9360
1250 1534 10400 11100
1600 1800 12400 13300
2000 2091 14700 15800
2500 2503 17400 18600
2000 2091 16000 17200 8
2500 2503 19100 20400

* Above specification may be changed to improve performance.

* Transformer of other specification than listed above can be made to order.

Product Overview

  • Model Interpretation

    The design serial number "18" incorporates cutting-edge technologies tailored for high-end dry-type transformers: ultra-thin iron cores, which minimize magnetic loss to a market-leading level while reducing the equipment’s carbon footprint; and high-efficiency winding processes that optimize energy transfer efficiency and lower long-term thermal stress on components. As a high-end customized variant, the suffix "NX1" likely includes compliance-focused enhancements—such as integrated noise-canceling systems (meeting the strict acoustic standards of healthcare and educational facilities) and reinforced short-circuit withstand structures (aligning with industrial safety regulations for critical infrastructure). "Energy Efficiency Class 1", the top national energy efficiency rating, reduces energy consumption by an additional 8%-12% compared to Class 2. This not only meets the rigorous energy-saving mandates of eco-certified zones (e.g., LEED-certified buildings) and high-standard industrial parks but also supports users in achieving carbon reduction targets.

Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1

Factory

Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1

Exhibition(Dubai exhibition, US exhibition, Thailand exhibition, Philippines exhibition……)

Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1

Application

Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1

Certificate(Power transformers with CE, ISO, KEMA, UL certificates and test reports.)

Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1

Target Market


Power 250 Kva 3 Phase Transformer Dry Type SC(B)18-NX1 Energy Efficiency Level 1

Company Profile

Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulsforme testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.
