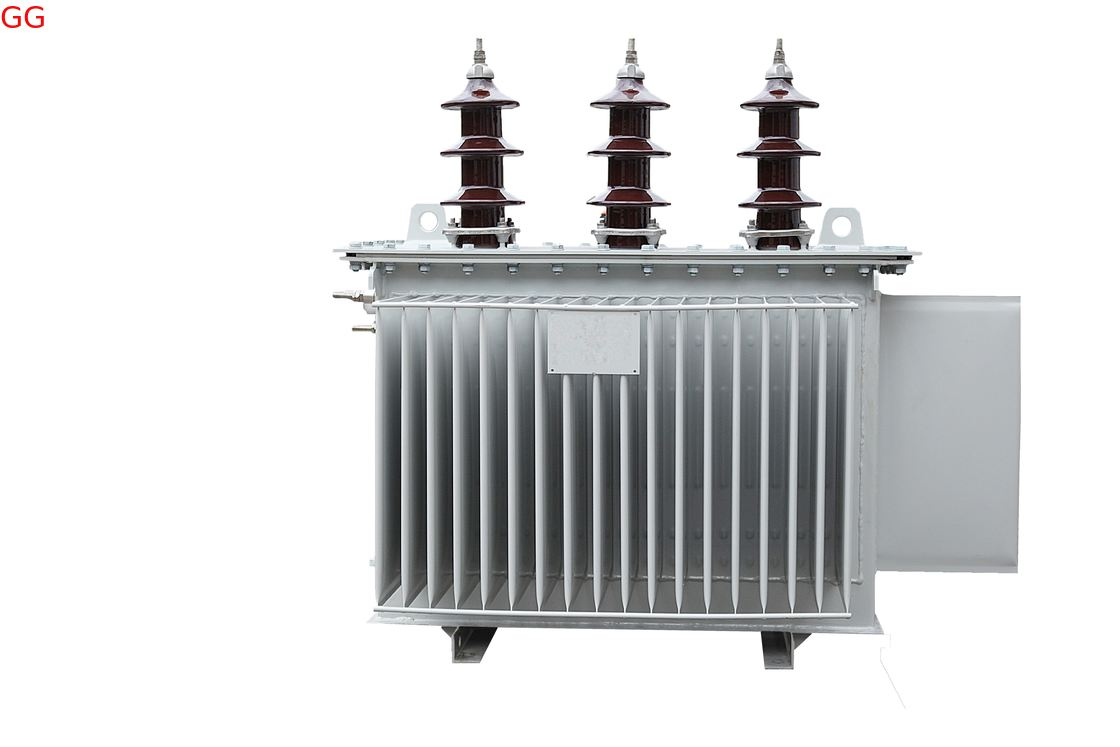

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution
Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution
Specifications
MOQ :
3
Winding Material :
Copper / Aluminum
Warranty :
2 years
Model Number :
D
Standard :
IEC Standard
Cooling Method :
ONAN
Application :
Distribution Transformer
Brand Name :
GuangGao
Name :
Oil Immersed Distribution Transformer
Packaging Details :
Export Standard Package
Product Model :
H61
Capacity :
50kVA, 100kVA, 160kVA
Payment Terms :
T/T L/C
Frequency :
50Hz
Core Material :
Silicon Steel Core
Rated Voltage :
10kV, 20kV, 30kV
Certification :
ISO CESI UL KEMA
Place of Origin :
Guangzhou
Description
Oil Immersed Distribution Transformer 10-30kV 50-160kVA
Product Specifications
Rating (kVA) Voltage Combination Vector Group No-Load Current (%) No-Load Loss (W) Full-Load Loss (W) Short-Circuit Impedance (%)
H.V. H.V. Tapping Range L.V.
50 ≤24 ±2x2.5% 0.4 0.41 Dyn11 2.9 145 1350 4%
100 2.5 210 2150
160 2.3 460 2350
50 ≤36 6 235 1450 4.50%
100 5.1 380 2350
160 4.7 530 3350

* Above specification may be changed to improve performance.

* Transformer of other specification than listed above can be made to order.

Product Overview

Focused on small and medium power distribution scenarios, it is suitable for 10-30kV medium-voltage systems with a power coverage range of 50-160kVA. It adopts oil-immersed cooling and a core made of high-magnetic-susceptibility silicon steel sheets; its low-loss design enables adaptation to light load fluctuations. With a compact box-type structure and an IP54 protection rating, it can be installed on outdoor bases without the need for a dedicated power distribution room. It is applicable to scenarios such as township power distribution networks, small-scale processing plants, and power supply for remote villages.

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Application

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Production Process


Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Professional Equipment

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Exhibition(Dubai exhibition, US exhibition, Thailand exhibition, Philippines exhibition……)

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Certificate(Power transformers with CE, ISO, KEMA, UL certificates and test reports.)

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Target Market


Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution

Company Profile

Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transformers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulse testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.

Oil Immersed Distribution Transformer 10-30kV 50-160kVA with Silicon Steel Core for Power Distribution
Contact us
  • Add: No. 15, Yunpu 1st Road, Yunpu Industrial Zone, Huangpu, Guangzhou, Guangdong, China
  • Tel: (+86)-020-82505003
  • Email: ggelectric@gz-gg.com
