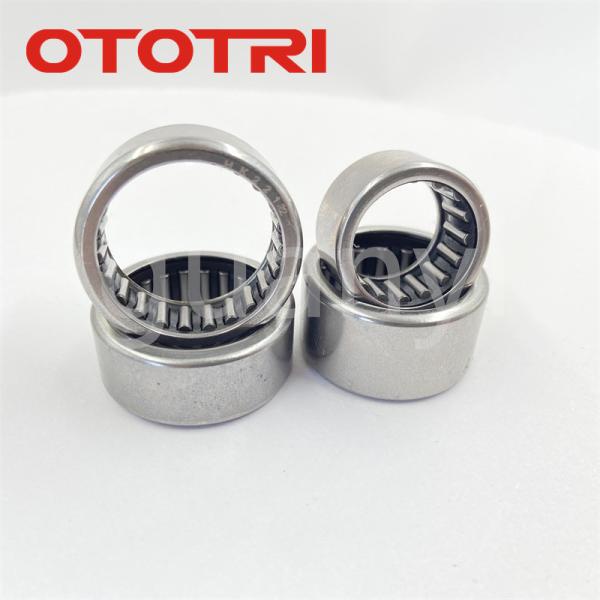

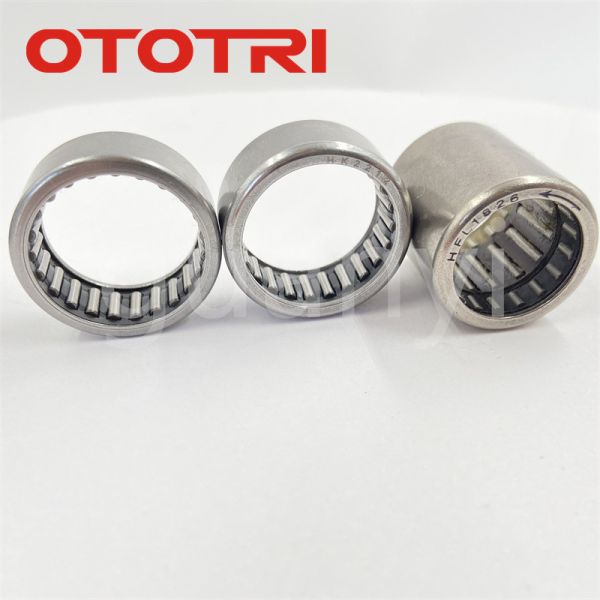

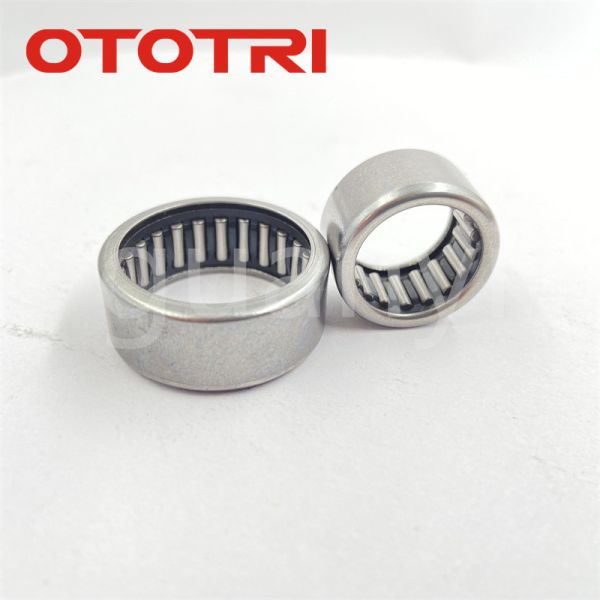

OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Specifications
Brand Name :
OTOTRI
Model Number :
HK 15X22X15
Place of Origin :
Changzhou Jiangsu China
Packaging Details :
Plastic packaging + brand box + carton
Supply Ability :
10000pcs/week
MOQ :
100pcs
Price :
0.1~100$/pcs
Delivery Time :
5-7 days after receiving your payment
Certification :
ISO
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Bore Size :
15mm
Seals Type :
OPEN / RS /ZZ HK 15X22X15
Number of Row :
Single Row HK 15X22X15
Product name :
Needle Roller Cage Bearing HK 15X22X15
Material :
GCR15
Chrome Steel :
motorcycle/textile machine
Structure :
Outer Ring
Model :
HK 15X22X15
Product Name :
Needle Roller Bearing HK 15X22X15
Precision Grade :
P5 P6
Brand :
OTOTRI HK 15X22X15
OEM/ODM :
Available
Cage Material :
Steel , Nylon
Application :
Auto Parts HK 15X22X15
Clearance :
C0,C2,C3,C4,C5 is available
Description
Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery

Needle roller bearing

About needle roller bearing:
Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and
needle roller assembly featuring small section height,big load capacity & rigidity,compact
structure and small size,high rotating accuracy with the structure of disposed inner ring.
Needle roller bearing is characterized by multiple structures,broad adaptability and easy
installation.
It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and
etc. Various machinery equipment. With this kind of bearing,machine design can realize the
goal of small-scale & light weight.

Design Attributes
· Integral seals
· Side flanges (or separate end washers)
· Inner rings
· Oil holes
· Single or double caged sets (or full complement) of rollers

Applications
· Transmissions, transfer cases, engines and valve trains
· Steering and braking systems
· Axle support
· Outboard engines
· Power tools
· Copiers, fax machines, paper-moving equipment
Shaft
Diameter
(mm)		 Bearing Designation Mass
Approx		 Boundary Dimensions Basic Load Rating Limiting Speed
15 HK15X20X12 7941/15 8.4 15 20 12 5800 6000 14000
HK15X20X16 7942/15 11.4 15 20 16 6000 6200 14000
HK1 5X20X20 7943/15 13.8 15 20 20 6100 6400 14000
HK1512 37941/15 11.1 15 21 12 7000 8400 14000
BK1512 35941/15 12.7 15 21 12 7000 8400 14000
HK1514 47941/15 12.7 15 21 14 8500 10400 13000
HK1515 14.2 15 21 15 9100 11400 13000
BK1515 15 21 15 9800 11400 14000
TA1515 15 22 15 11400
TA1515Z 15 22 15 11400
HMK1515 15 22 15
HK1516 57941/15 15 15 21 16 9800 11400 14000
BK1516 55941/15 16.5 15 21 16 9800 11400 14000
HK1518 15 21 18
HK1520 15 21 20
HMK1520 15 22 20
HK1522 SZ-439 20.4 15 21 22 10400 16500 14000
BK1522 22 15 21 22 10400 16500 14000
HK15X22X12 7948/15 12.5 15 22 12 14300 18400 13000
HK15X22X12.5 7948/15K 13.5 15 22 12.5 14300 18400 13000
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural MachineryOTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural MachineryOTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
1
Needle Roller and Cage Assemblies
K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
PCJ
2
Needle Roller and Cage Assemblies for Connecting Rod
PK
KBK
3
Drawn Cup Needle Roller Bearings
HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
DCL
HCK
4
Machined-Ring Needle Roller Bearings
RNA48, RNA49, RNA59, RNA69, NK, NKS
NA48, NA49, NA59, NA69, NK+IR, NKS+IR
MR
MR+MI
RNA49‥L, RNA49‥LL
NA49‥L, NA49‥LL
5
Machine-ring Needle Roller Bearings Separable Type
RNAO, RNAO‥ZW
NAO, NAO‥ZW
6
Self Aligning Needle Roller Bearings
RPNA‥R
PNA‥R
7
Inner ring
IR
MI
8
Clearance-Adjustable Needle Roller Bearings
RNA49‥S
NA49‥S
9
Complex Bearings
NKX, NKX‥Z
NKX+IR, NKX‥Z+IR
NKXR, NKXR‥Z
NKXR+IR, NKXR‥Z+IR
NKIA
NKIB
AXN
ARN
10
Cam Followers
KRM‥XH, KRMV‥XH
KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
KR, KR‥X, KR‥LL, KR‥XLL
KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
KRV, KRV‥X, KRV‥LL, KRV‥XLL
KRT, KRT‥X, KRT‥LL, KRT‥XLL
KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
KRU, KRU‥X, KRU‥LL, KRU‥XLL
KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
NUKR‥H, NUKR‥XH
NUKR, NUKR‥X
NUKRT, NUKRT‥X
NUKRU, NUKRU‥X
CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
CR, CR‥X, CR‥LL, CR‥XLL
CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
CRV, CRV‥X, CRV‥LL, CRV‥XLL
11
Roller Followers
RNAB2, RNAB2‥X
NAB2, NAB2‥X
RNA22‥LL, RNA22‥XLL
NA22‥LL, NA22‥XLL
NATR, NATR‥X, NATR‥LL, NATR‥XLL
NATV, NATV‥X, NATV‥LL, NATV‥XLL
NACV, NACV‥X, NACV‥LL, NACV‥XLL
NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
NUTW, NUTW‥X
12
Thrust Roller Bearings
AXK11, AS11, WS811, GS811
811, 812, 893, 874, K811, K812, K893, K874, WS811
WS812, WS893, WS874, GS811, GS812, GS893, GS874
AXA21, ARA821, ZS
AXB21, ARB821, ZS
13
One-way Clutches
HF
HFL

OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Customer Feedback
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Certifications
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Company Profile
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
Packing & Shipping
OTOTRI Drawn Cup Needle Roller Bearing HK 15X22X15 Needle Roller Bearing for Agricultural Machinery
FAQ
Q:What the MOQ of your company?
A:Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter higher cost, sure the more you purchase the cheaper cost you could get.

Q:Could you accept OEM and customize?
A:YES, we can customize for you according to sample or drawing.

Q:Could you supply sample for free?
A:Yes,we can supply sample for free, do you mind to buy her a ticket?

Q:Dose your factory have any certificate?
A:yes.we have ISO 9001:2008, IQNET and SGS. If you want other like CE,we can do for you.

Q:IS you company factory or Trade Company?
A:We have our own factory ; our type is factory +trade.

Q:Could you tell me the material of your bearing?
A:We have chrome steel, stainless steel and plastic material.

Q:Could you offer door to door service?
A:Yes, by express(DHL, FEDEX, TNT, EMS, 7-12 days to your city.)

Q:Could you tell me the payment term of your company can accept? A:T/T, Western Union, PayPal

Q:Could you tell me the delivery time of your doors?
A:If stock, in 7 days or base on your order quantity

Q:Can you give me some discount?
A:Yes, We can, contact me immediately to get more discounts.
