500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
Specifications
Place of Origin :
Sichuan, China
Brand Name :
GUTE
MOQ :
1
Price :
$58,000
Voltage :
380V
Dimension :
30*5*3 m
Power :
42 kW
Weight :
15000 kg
Cutting edge width :
500mm
Shearing mode :
Hydraulic shearing
Roller speed :
0-100m/min adjustable
Maximum shear length :
12m
Minimum shear length :
1.4m
Shear Accuracy :
±5mm
Shear frequency :
≤12n/min
Silo Series :
3
Rated power :
42kw
Total weight :
15t
Blade thickness :
40mm
Description
Factory Outlet Custom Cutting Edge Width 500mm Rebar Shear Line SGS150
Technical Specifications
Cutting Edge Width 500mm
Shearing Mode Hydraulic shearing
Roller Speed 0-100m/min adjustable
Maximum Shear Length 12m
Minimum Shear Length 1.4m
Shear Accuracy ±5mm
Shear Frequency ≤12n/min
Silo Series 3
Rated Power 42kw
Total Weight 15t
Dimensions (L×W×H) 30m × 5m × 3m
Length Control Mode Servo
Product Features

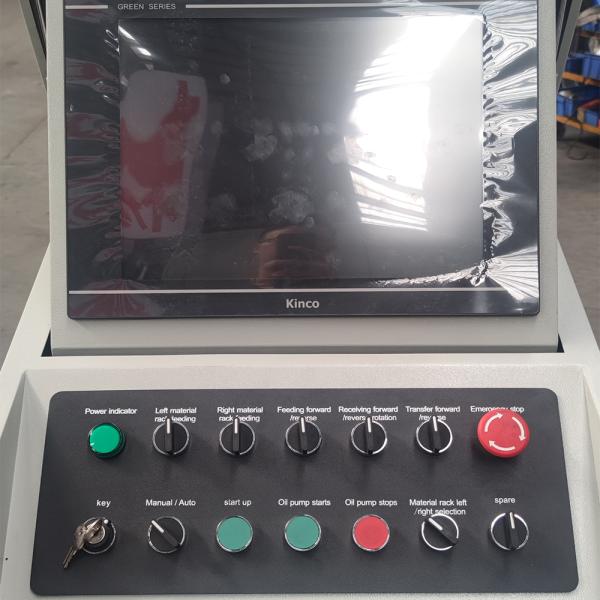

  • PLC Control System: Ensures high precision shearing for steel bars of various specifications and small batches
  • 24 Fixed Length Plates: Steel plate structure with servo motor for fast and accurate length setting
  • Large Length Blade Design: Enables simultaneous cutting of multiple reinforcing bars
  • Centralized Oil Supply System: Guarantees long operational life
  • 3-Level Product Storage: Facilitates efficient collection of multiple products
  • Thickened/Widened Gears: Provides stable cutting with fully encapsulated shield for enhanced safety
  • High Strength Spiral Elevator: Ensures precise positioning without deformation
  • Adjustable Cutting Length: Continuous operation with high-speed conveyance and precise cutting
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Key Components
Straightening Structure
  • Forged alloy tool steel straightening wheels for superior wear and impact resistance
  • 30mm thick steel plate preset wheel plate for high strength and durability
Multi-split Type Blade
  • Double lifetime compared to standard one-piece blades
  • Split thickening design with 40mm thickness for extended usability
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Servo Motor
  • 16KW high-power servo motor ensures smooth traction operation
Pneumatic Elements
  • Premium Airtac (Taiwan) components for extended service life
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Pay-Off System
  • 2 pay-off units per machine with 2500KG maximum capacity each
  • Designed for easy disassembly and transportation
  • Optional brake customization available
Automatic Collector (Optional)
  • Automatically collects finished stirrups
  • Adjustable collection quantity for easy packaging
500mm Hydraulic Rebar Shear Line with 42kw Motor
Applications
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor

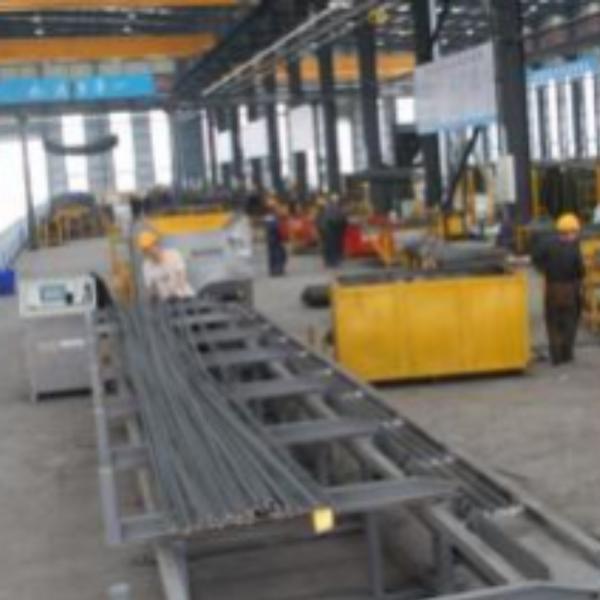

Production Line
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Manufacturer Profile

GUTE is a professional manufacturer of construction machinery with 28 years of experience and over 250 skilled workers specializing in steel bar processing equipment.

  • Exported to more than 70 countries with 70% export share of steel bar bender/cutter machines
  • 200+ agents in Chinese market and 10 owned brand shops across China
  • OEM provider for many renowned European brands
  • Global presence in Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, and Middle East
  • Specializes in reinforcement steel bar bending, shearing, welding, and straightening machines
  • Expert in R&D and quality control for customized solutions
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Transportation
500mm Hydraulic Rebar Shear Line with 42kw Motor
Frequently Asked Questions
Q: What's the production and delivery time?
A: Orders under 5 units are typically in stock with 5-day delivery to Shanghai port. Larger orders require 10-15 working days.
Q: What's the minimum order quantity?
A: Standard MOQ is 5 units. Sample orders of 1 unit are possible with additional port and delivery charges.
Q: What are the departure ports?
A: Primary port is Shanghai, with options for Guangzhou, Qingdao, Tianjin and other Chinese ports.
Q: What's the packaging method?
A: Iron pallets and poly wooden cases (no fumigation required).
Q: What payment terms are available?
A: T/T, L/C, DP, Western Union, PayPal.
Our Service Commitment
  • 24-hour response to all inquiries regarding products or pricing
  • Complete protection of your sales area, design concepts, and private information
  • Best quality products with competitive pricing
